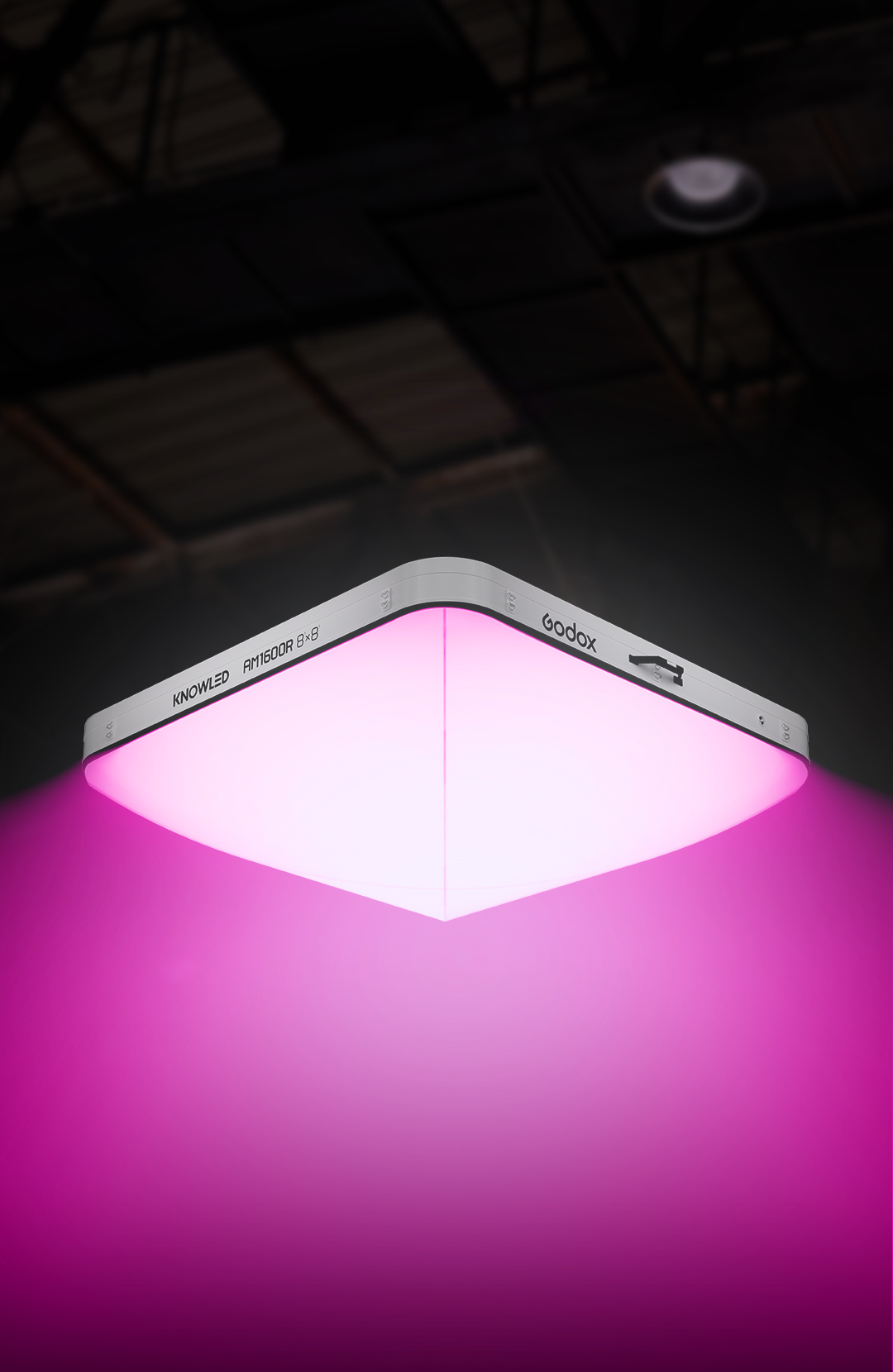

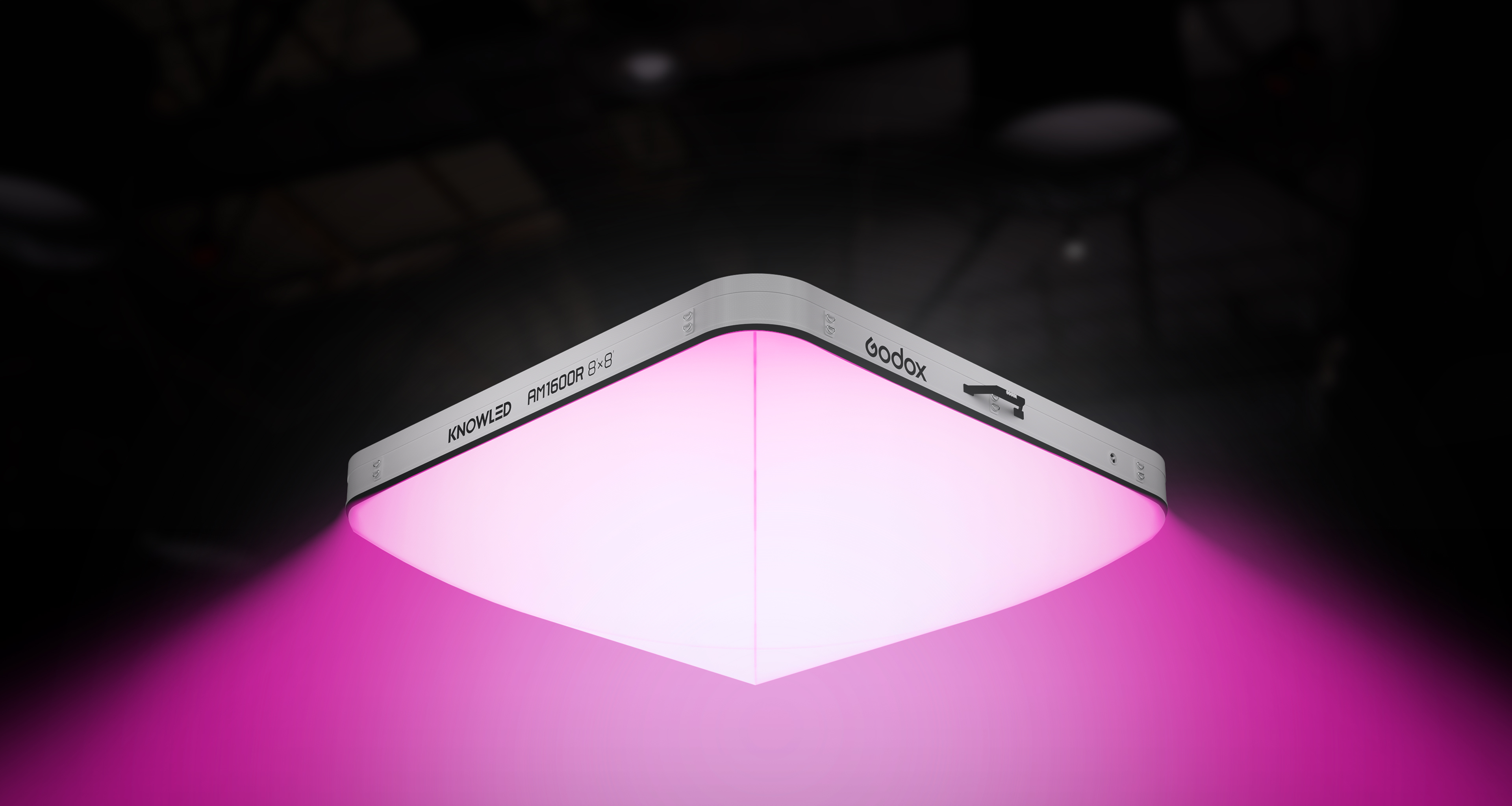

Cinematic Large-Scale Lighting Solution

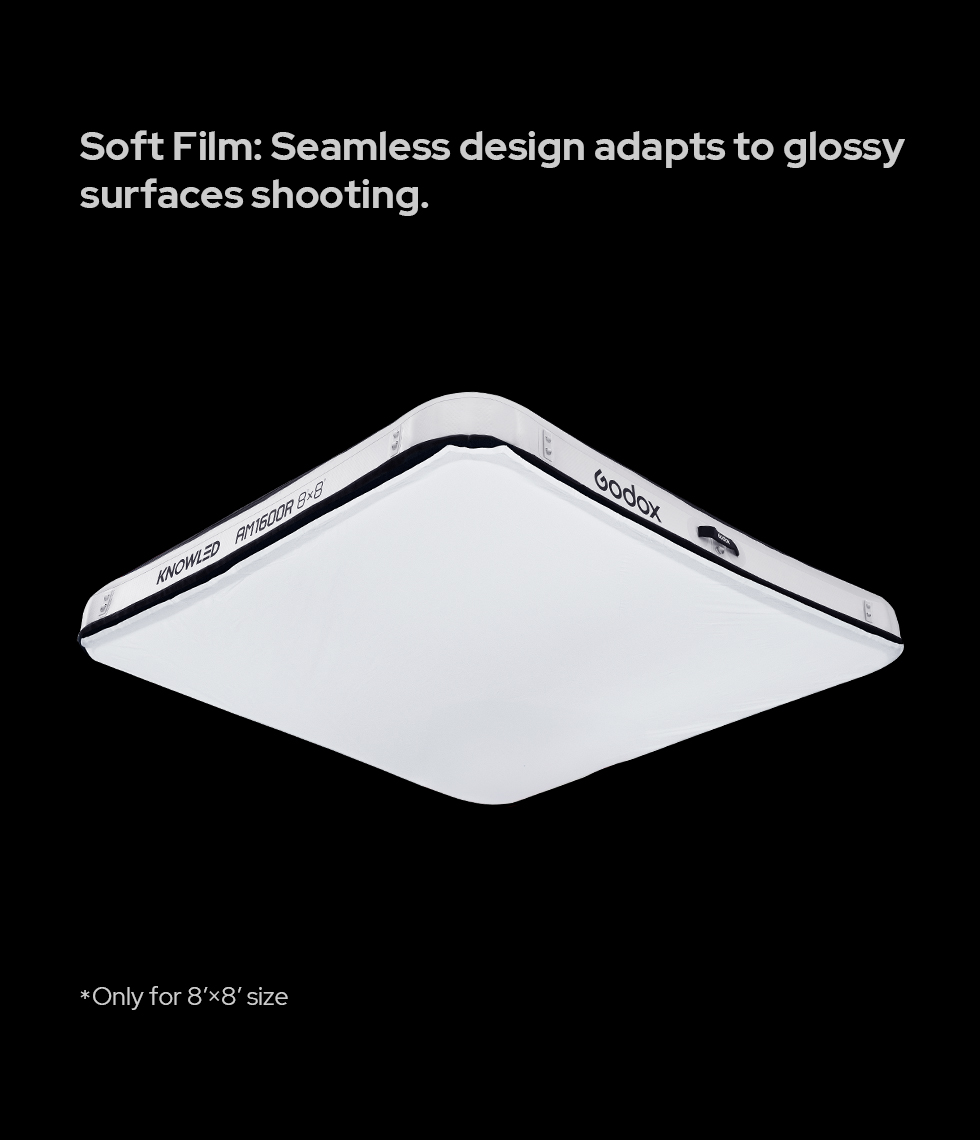

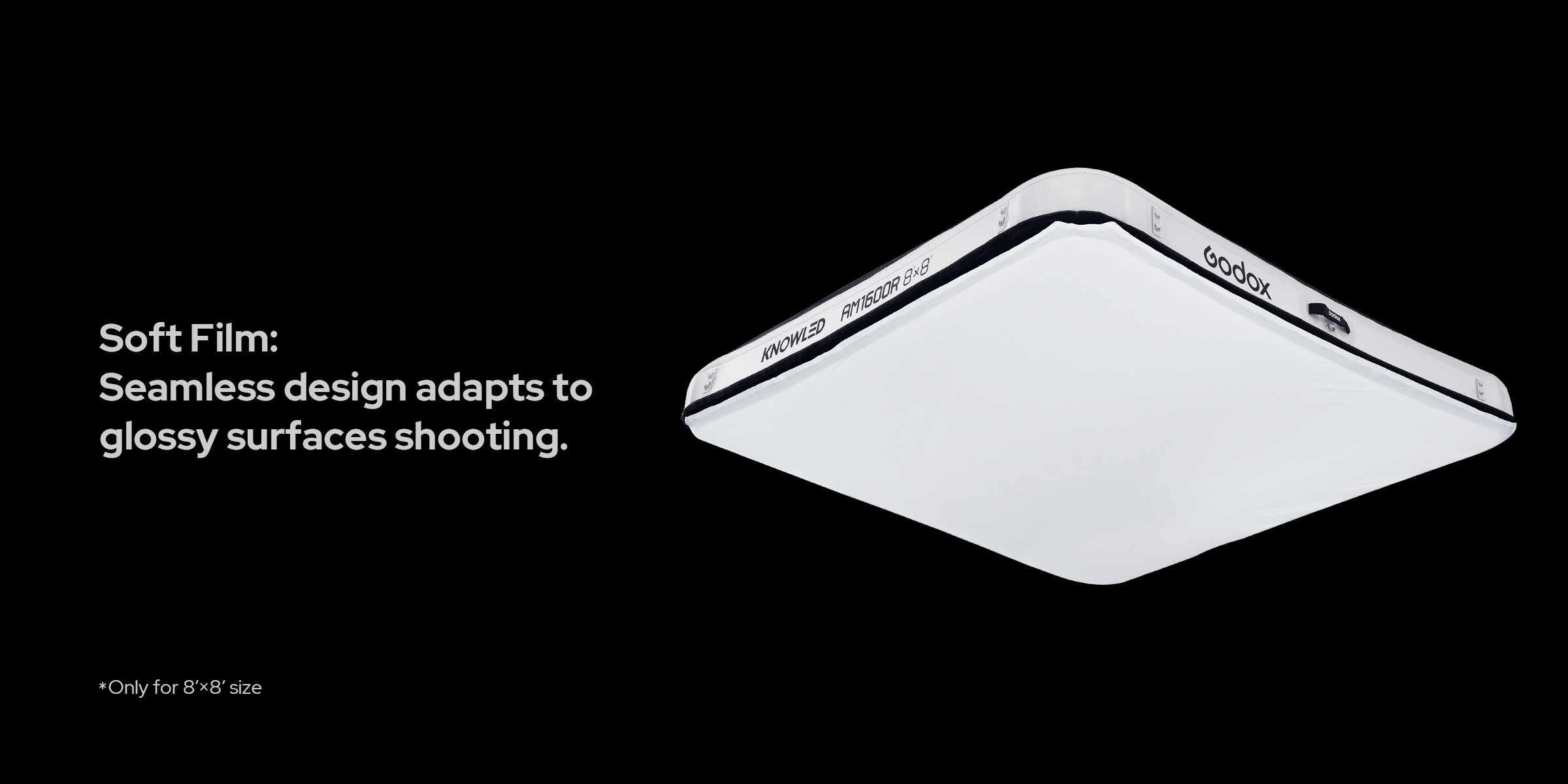

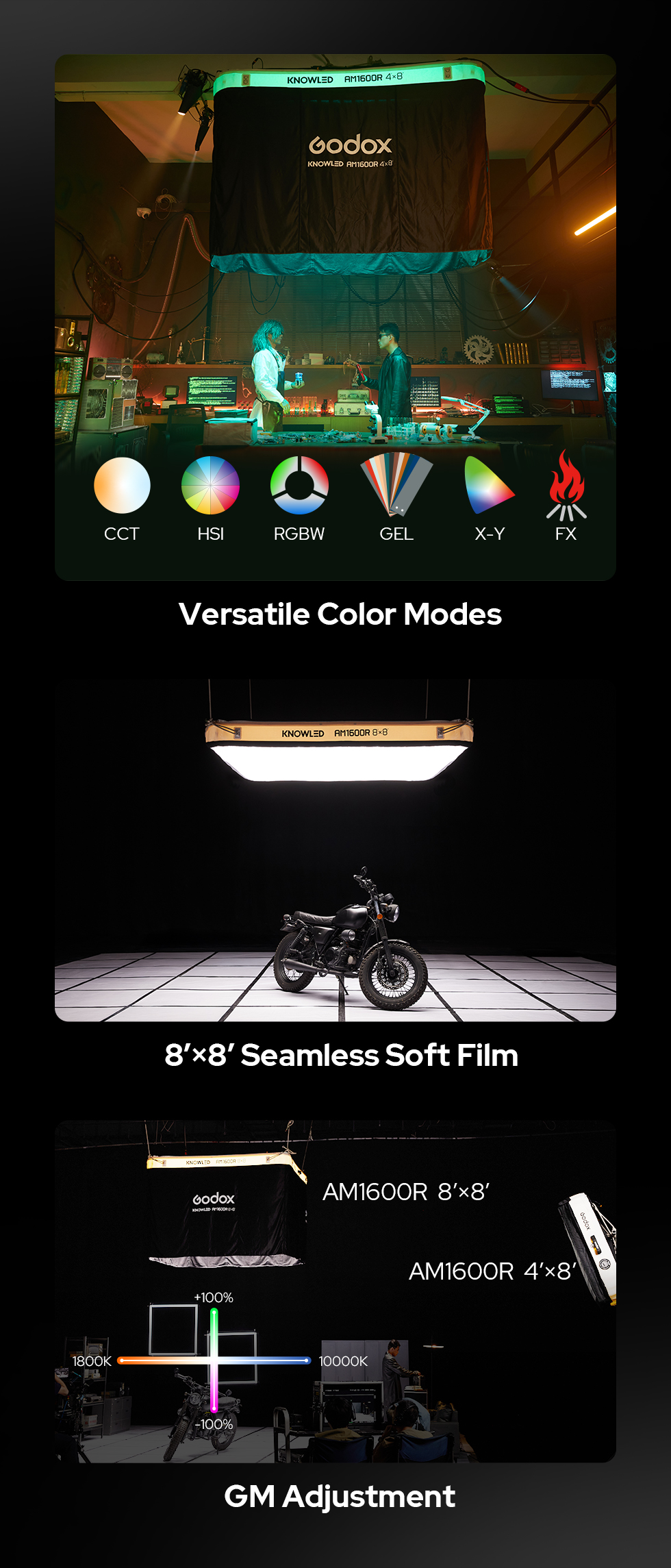

The AM1600R packs a powerful 1600W output and delivers expansive full-color soft light with CCT/HSI/RGBW/GEL/FX color modes. Its GM adjustment offers precise tint control to match any shooting scenario. Paired with an 8*8 seamless soft film, it ensures smooth and diffuse illumination.

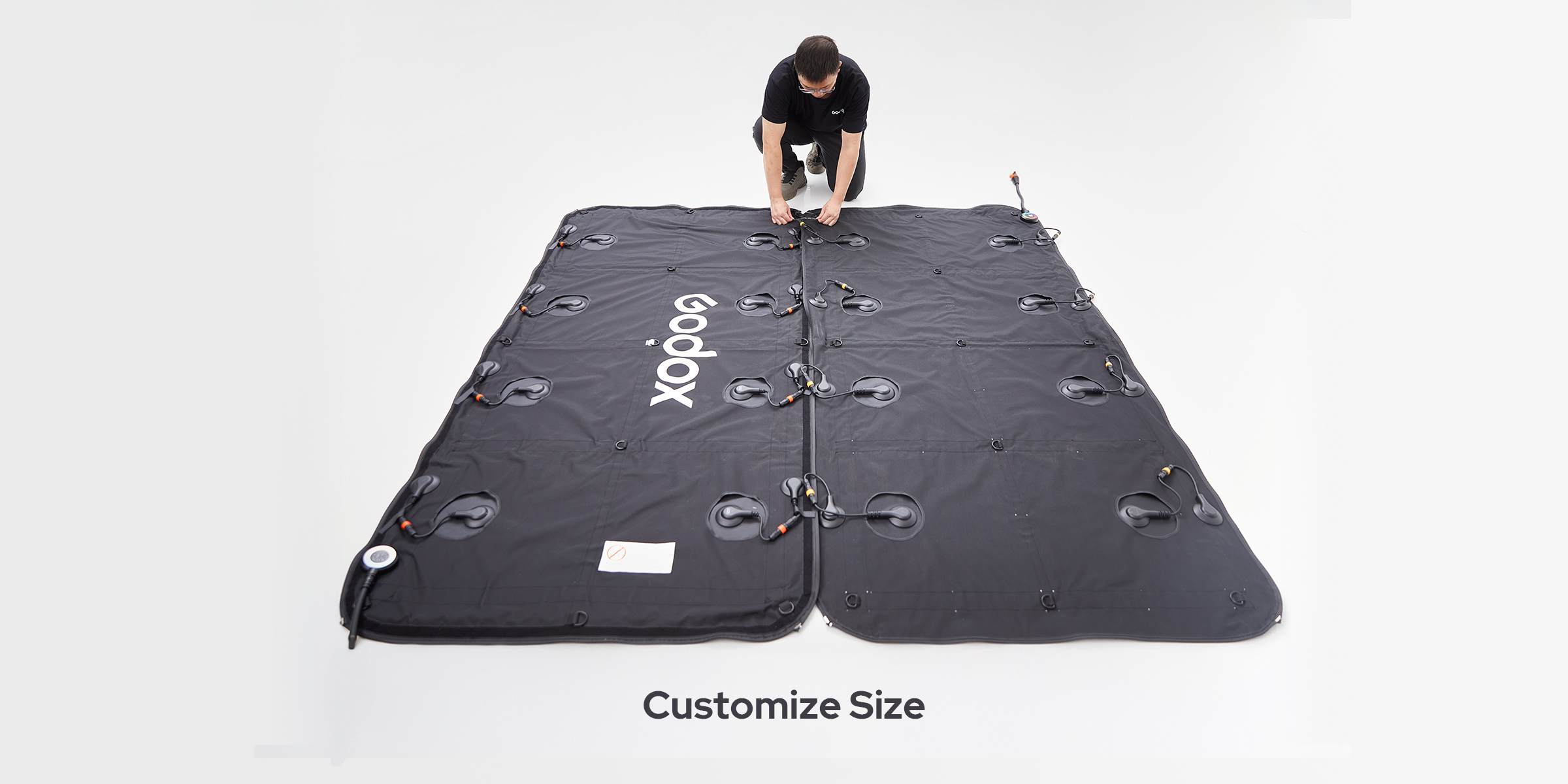

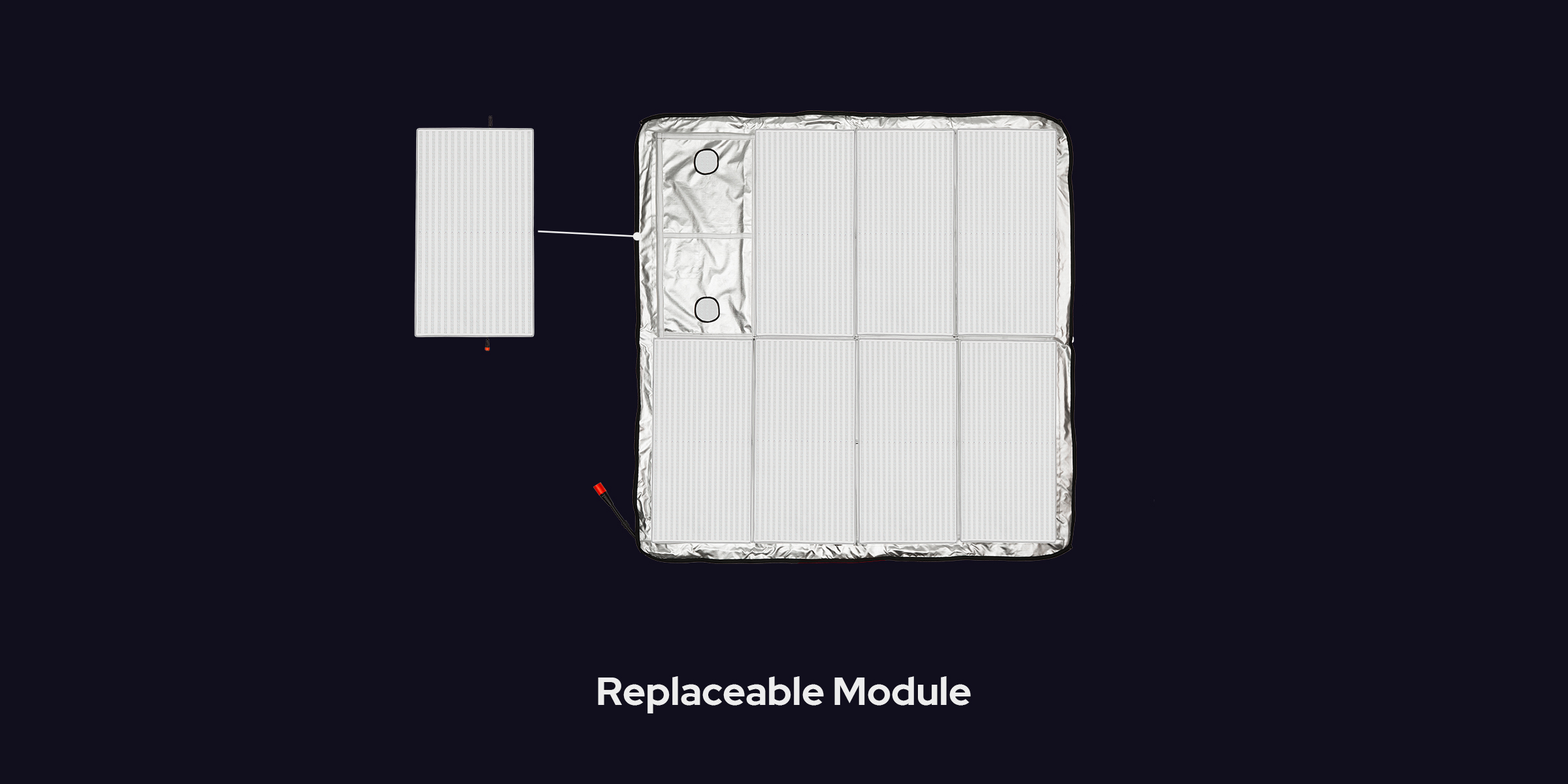

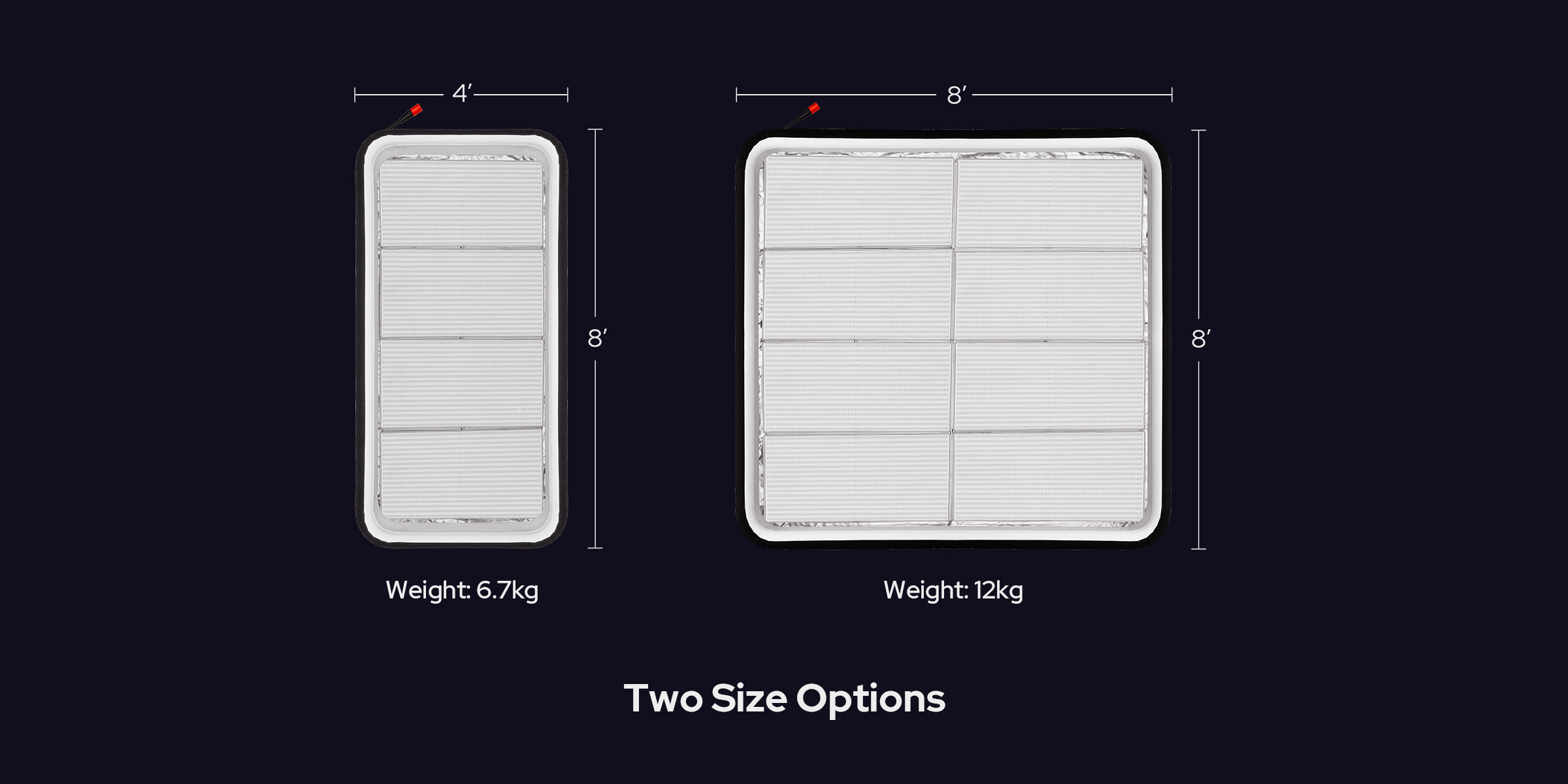

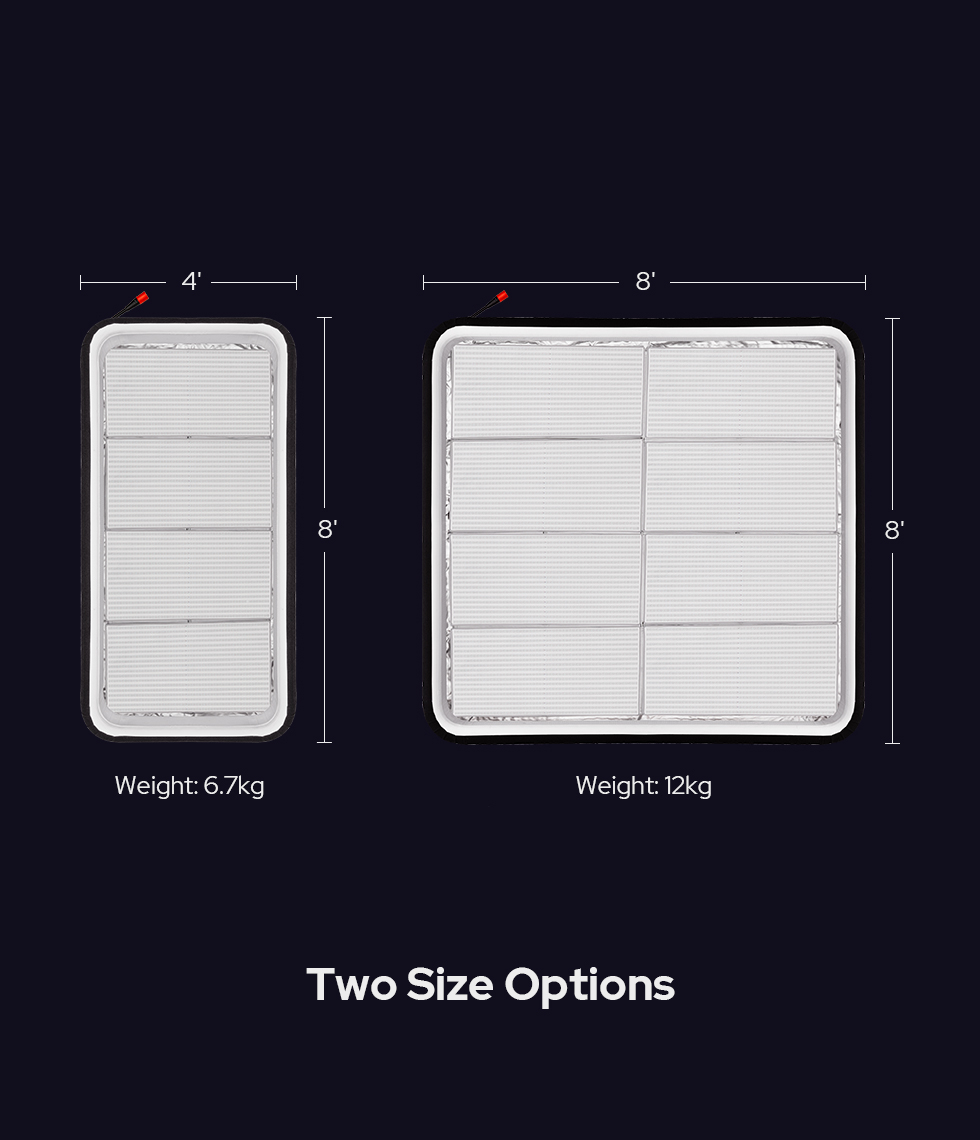

Flexible Sizes and Modular Build

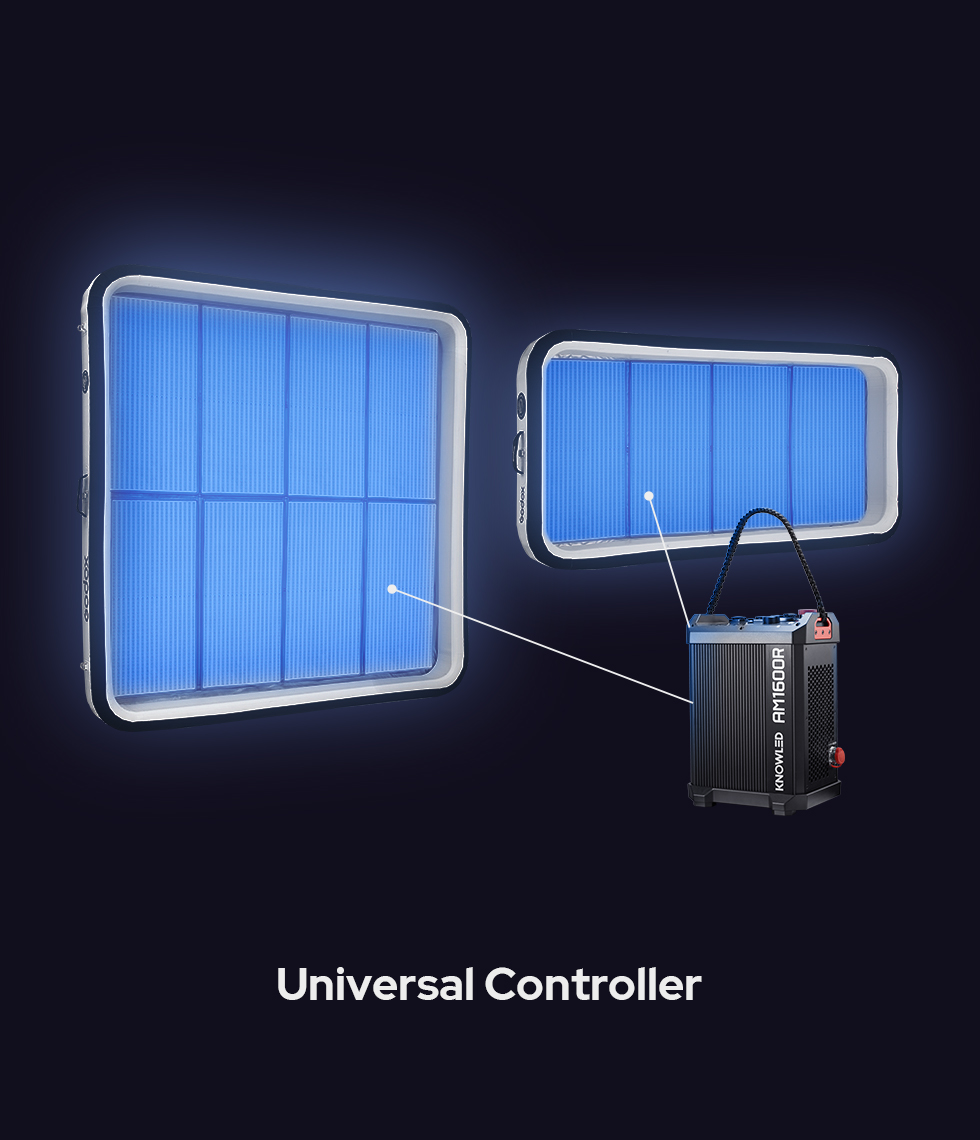

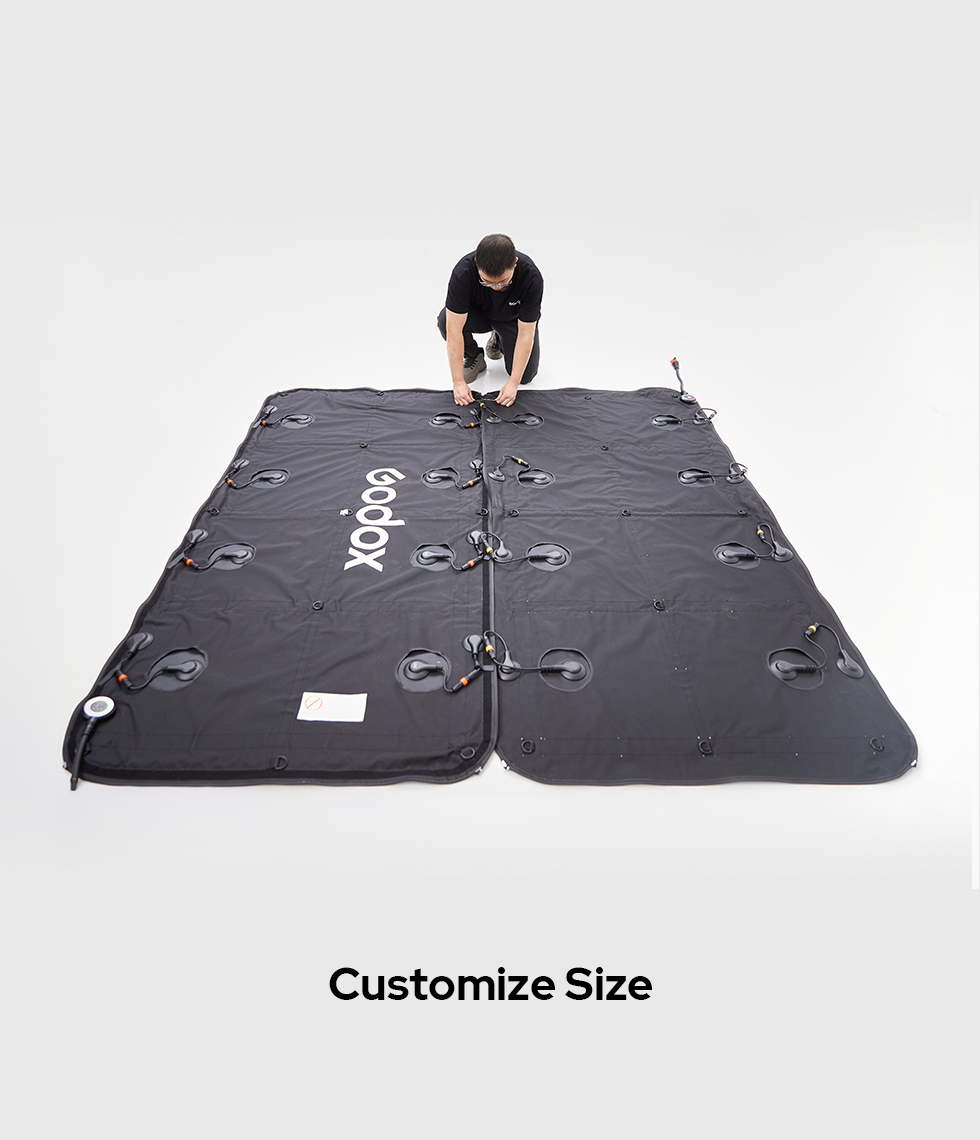

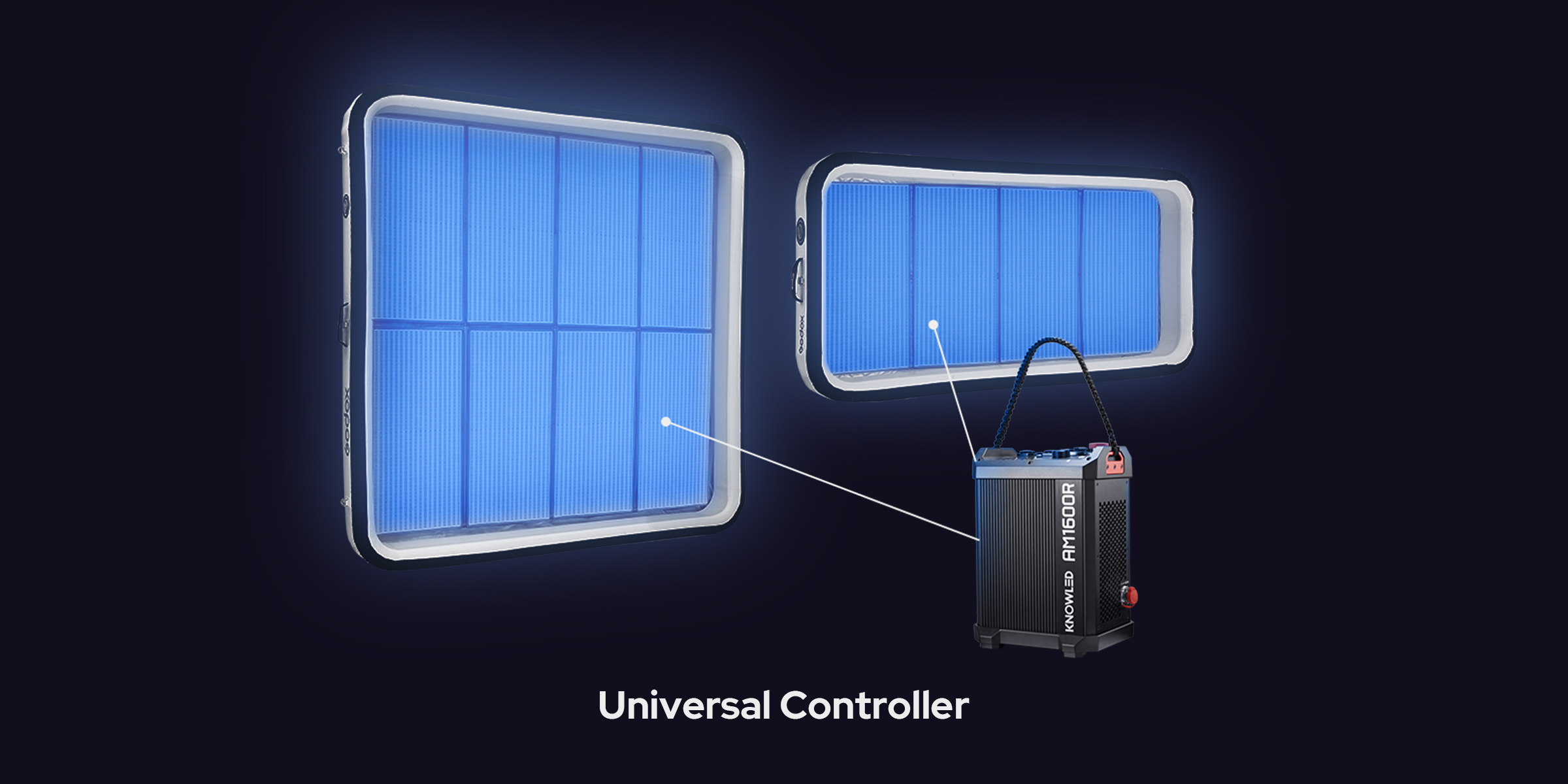

The AM1600R offers two formats: 4’x8’ for higher brightness, and 8’x8’ for softer lighting. Both use the same controller. Its modular structure allows light panels to be swapped out easily with Velcro fasteners, while D-rings on the back make it easy to connect or extend panels to suit different shooting needs.
Butterfly Airframe Reinvented
·Resist Scratches, Tears, and Wear
·Resist Scratches, Tears, and Wear
The inflatable butterfly frame uses advanced materials and precision manufacturing to dramatically improve scratch and abrasion resistance, ensuring a longger lifespan. This tackles the common issue of traditional airframes leaking air due to damage on set.

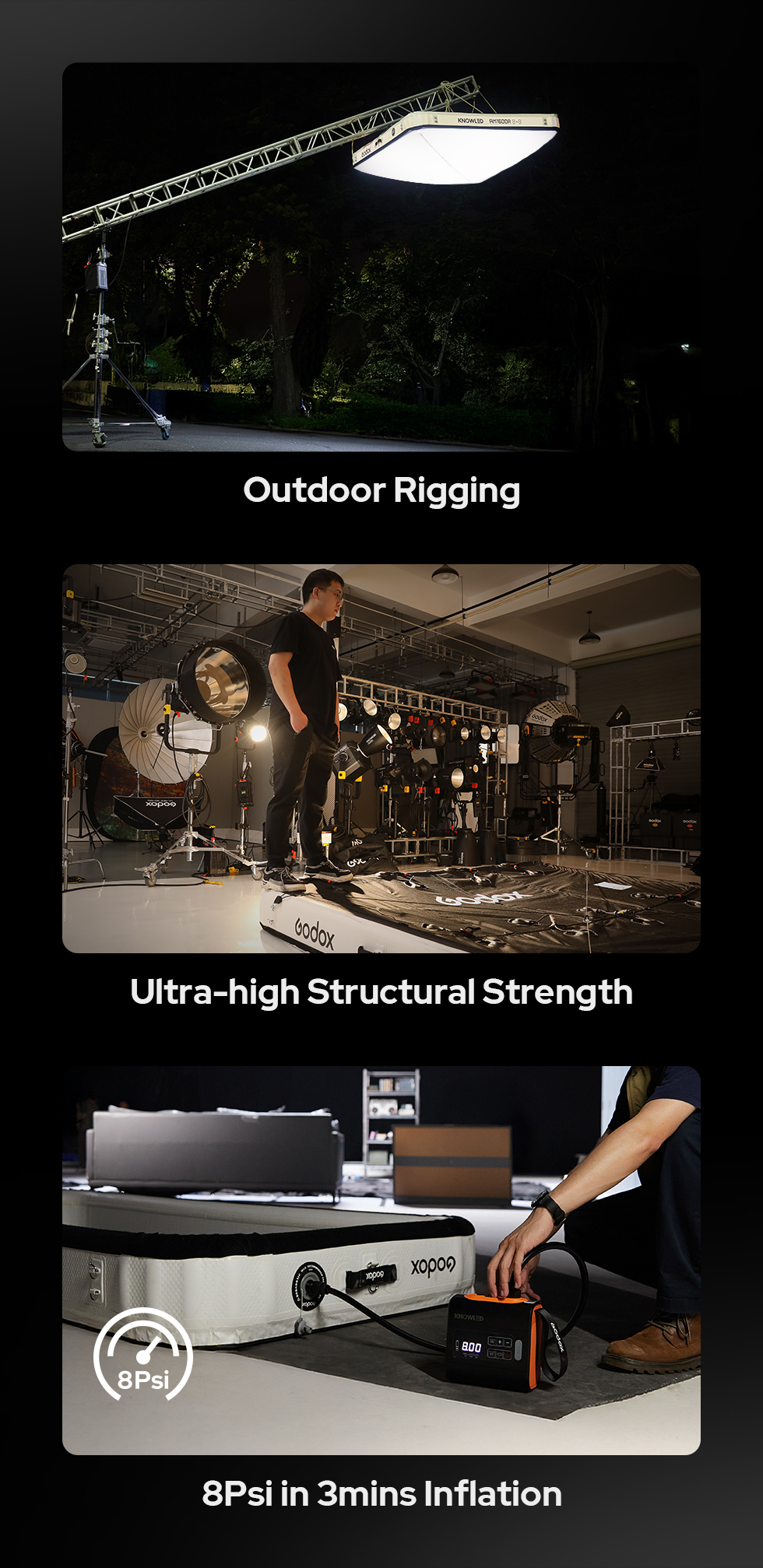

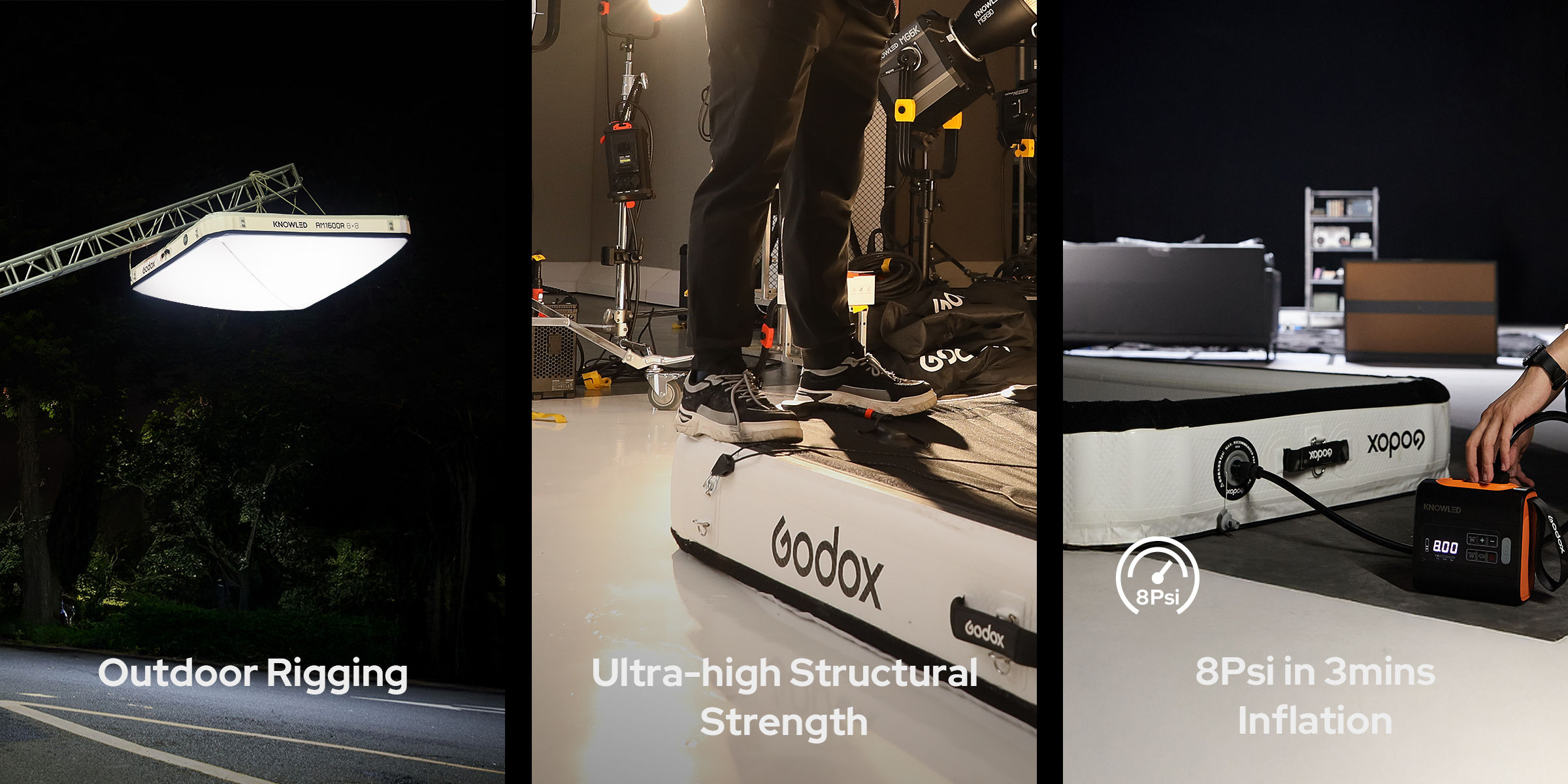

·No Truss, No Hassle
With exceptional structural strength, the AM1600R hangs stably without any truss support, delivering a lighter, more streamlined solution for large-scale soft lighting. Just connect the included pump - 8Psi in 3 minutes and you’re ready to light large spaces with ease.

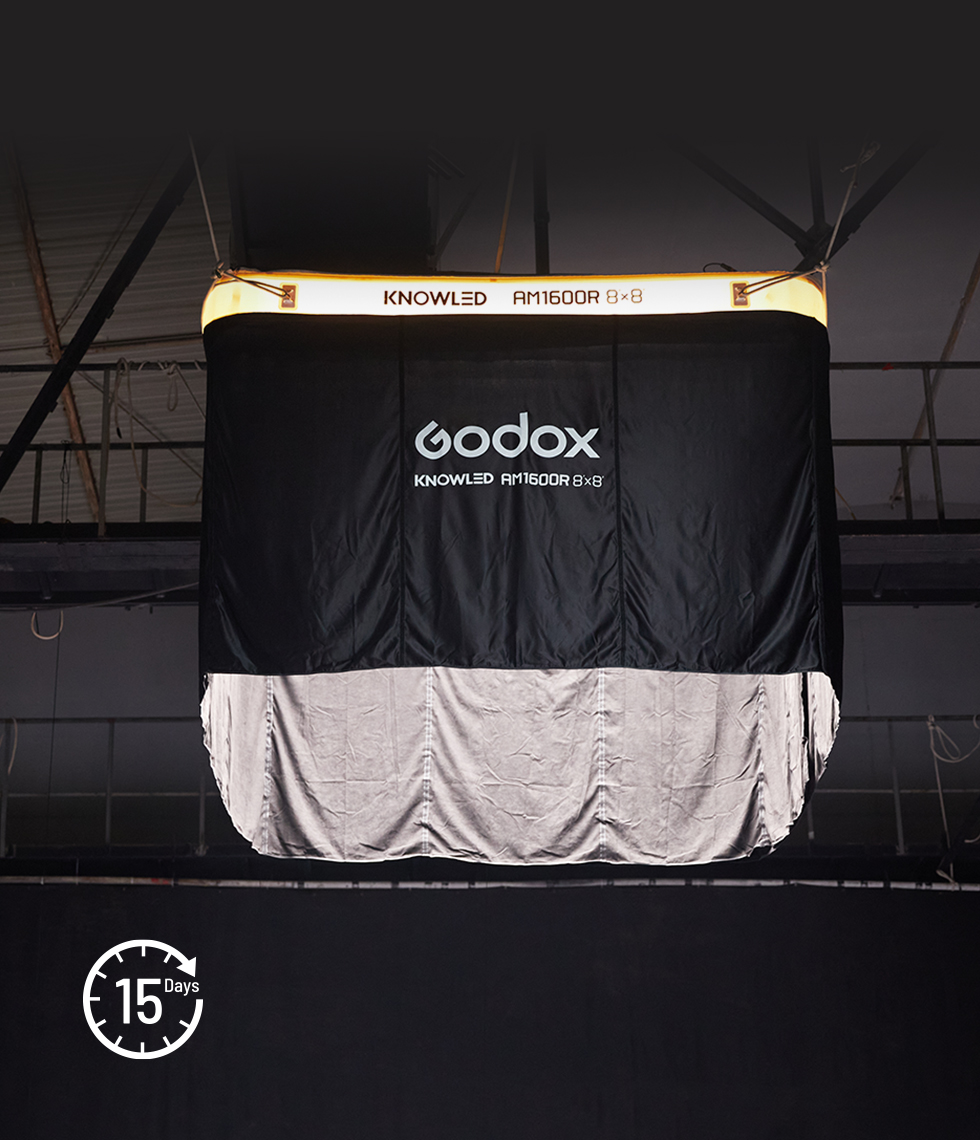

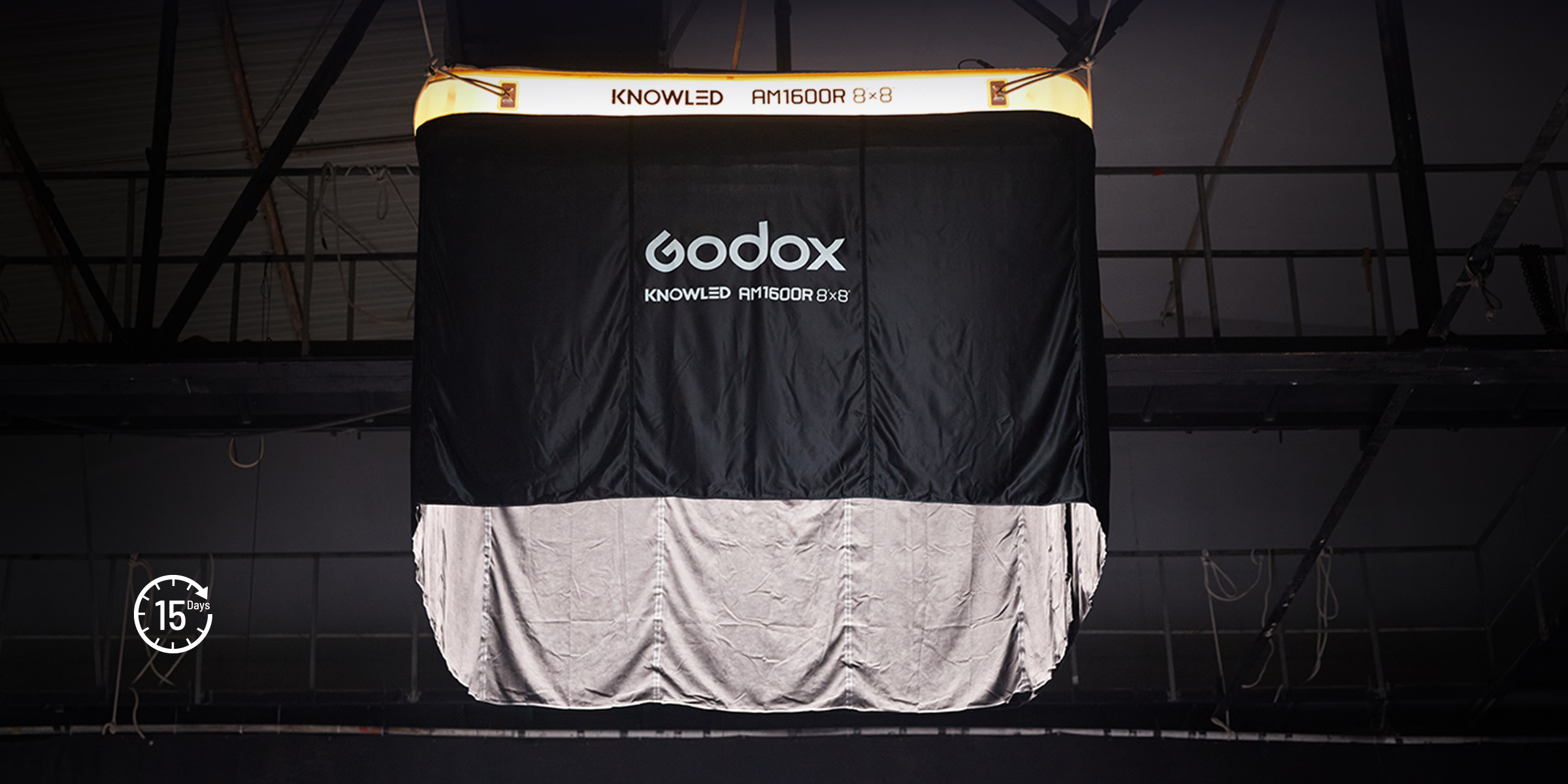

·15 Days Without Reinflation
Built to exceptional airtightness, AM1600R maintains stable shape up to 15days without reinflation, avoiding daily top-ups and boosting on-set efficiency.

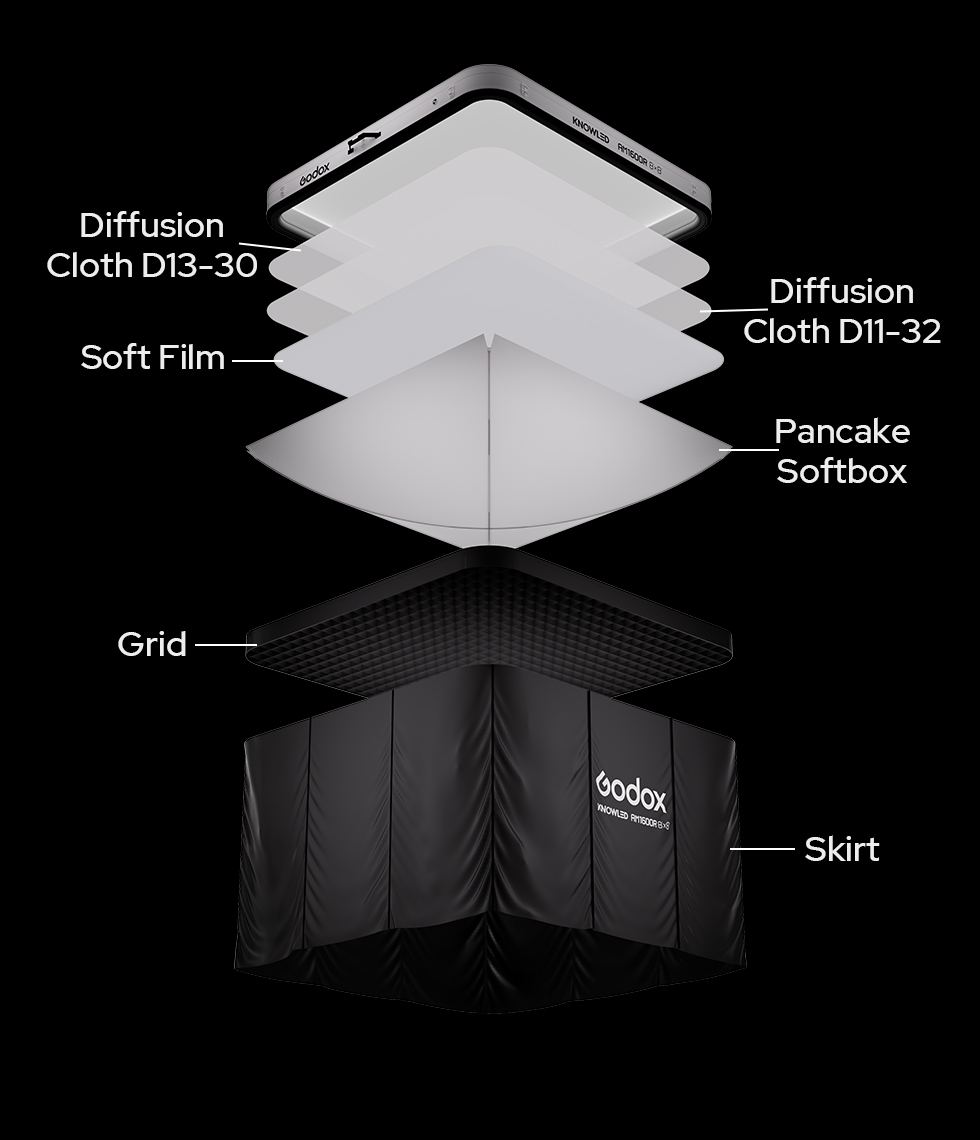

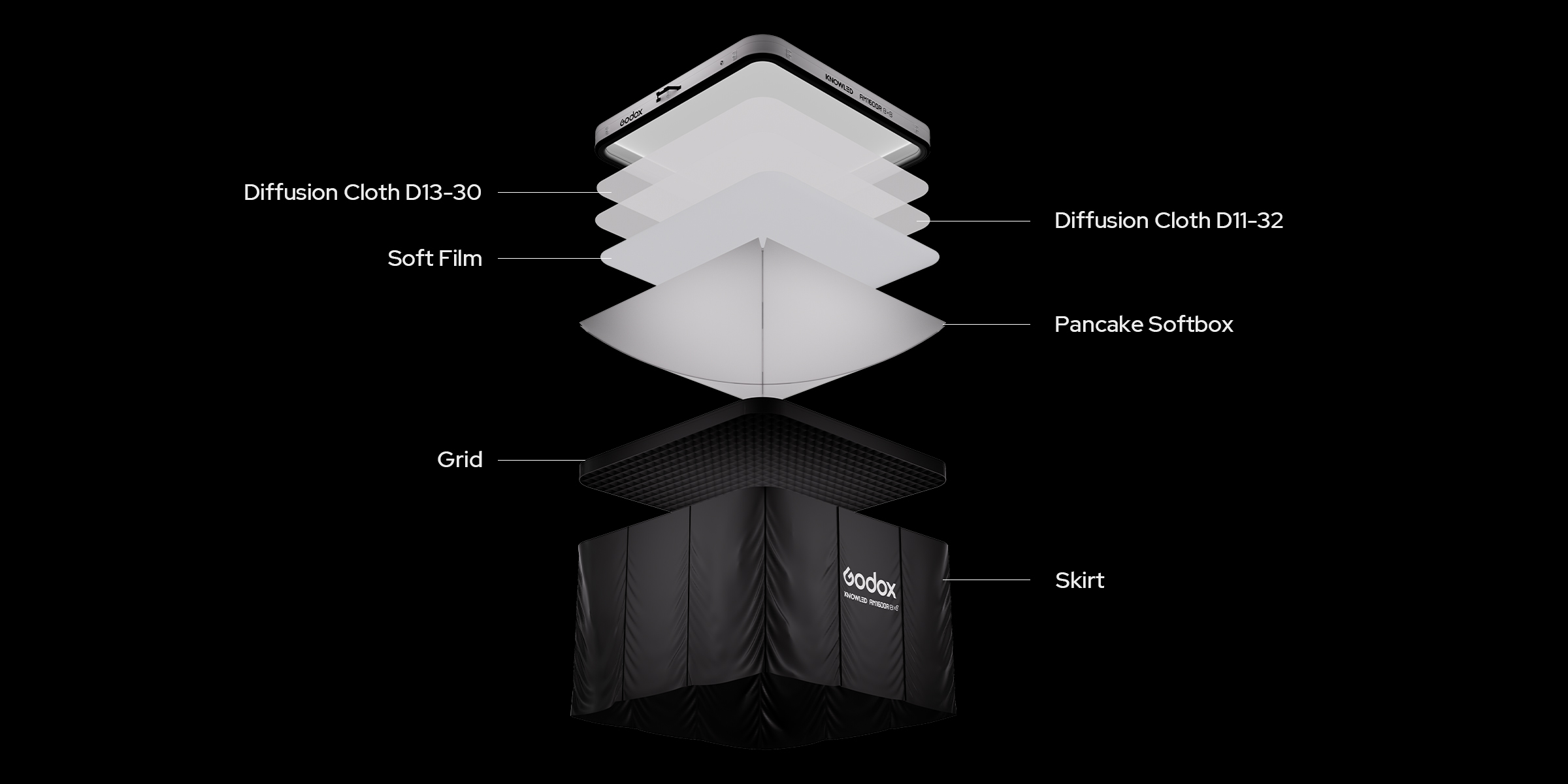

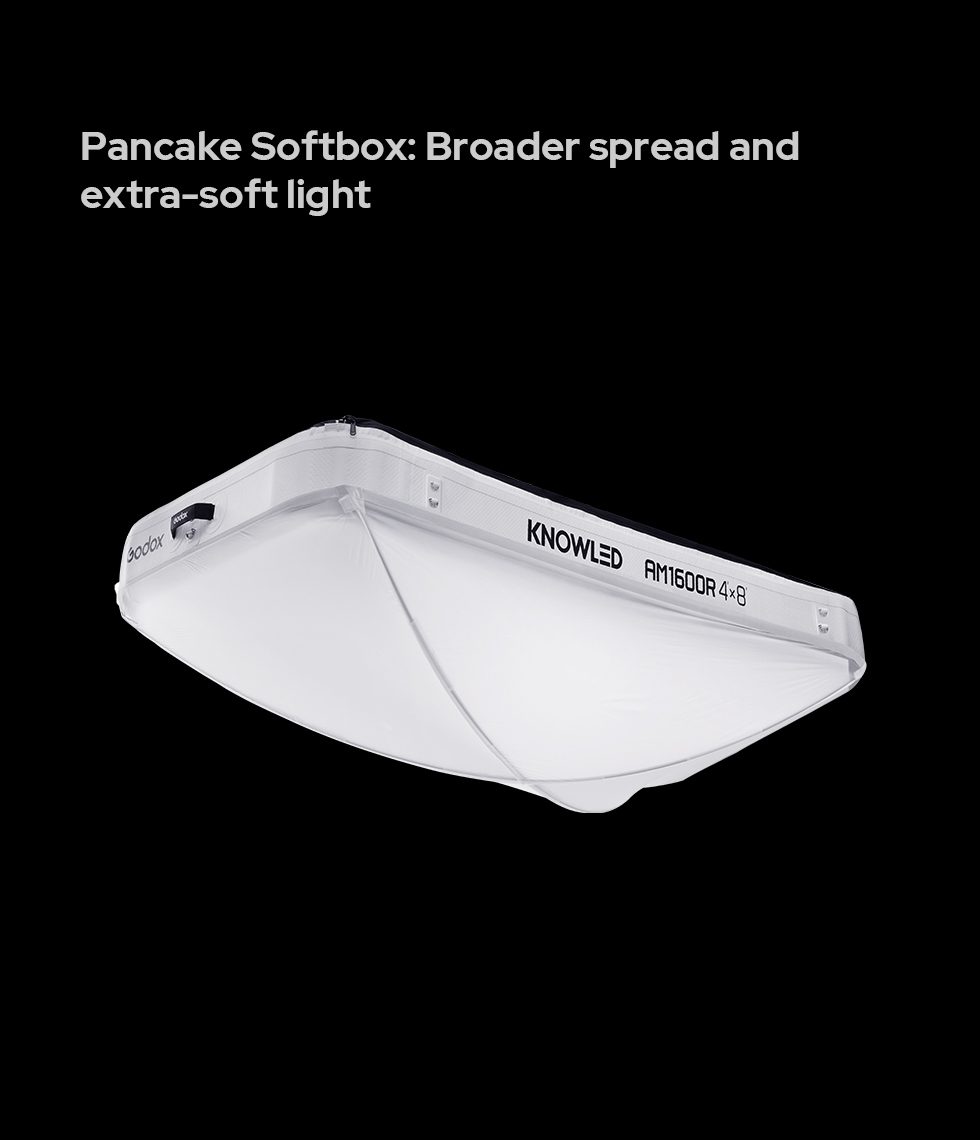

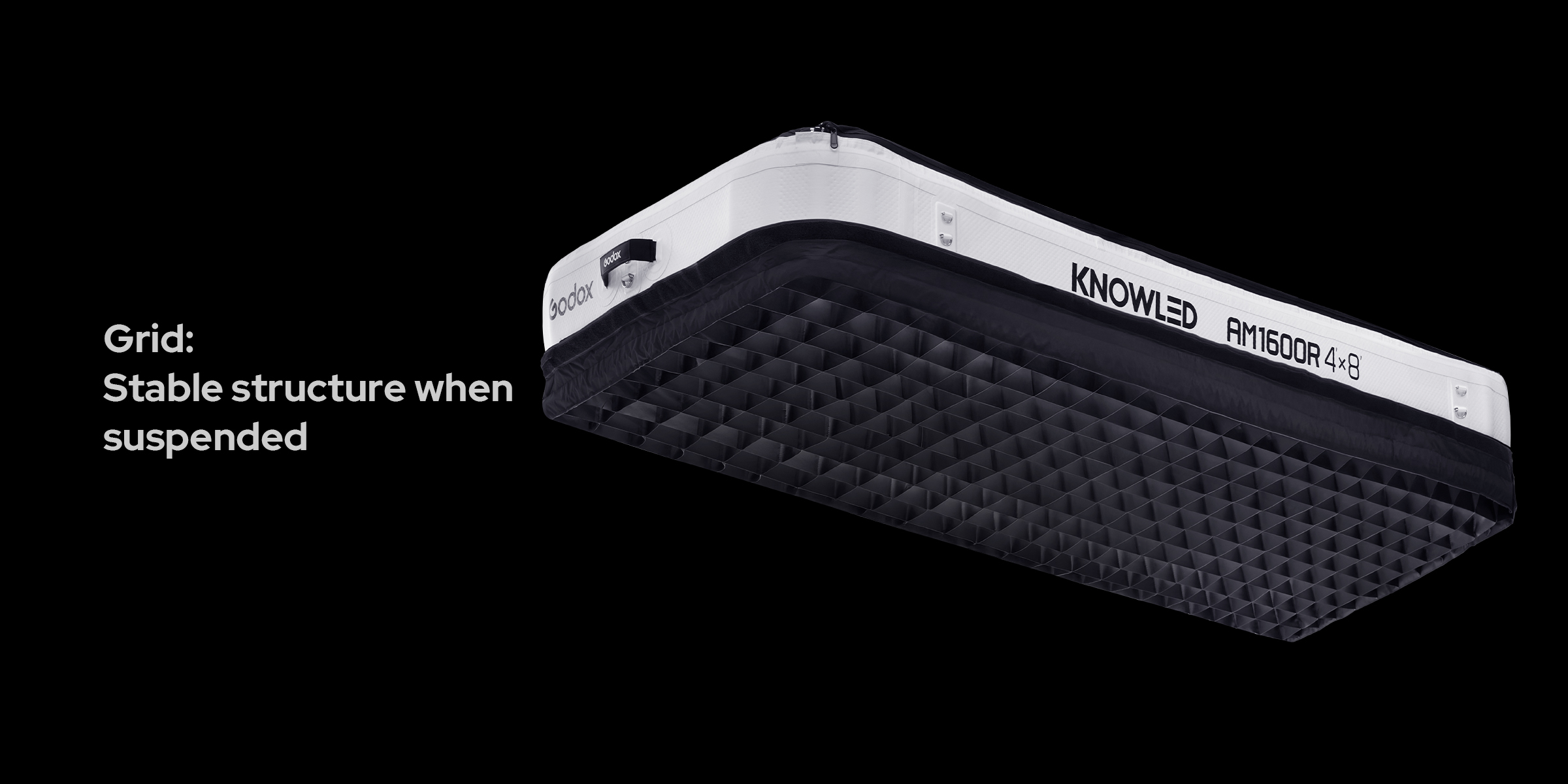

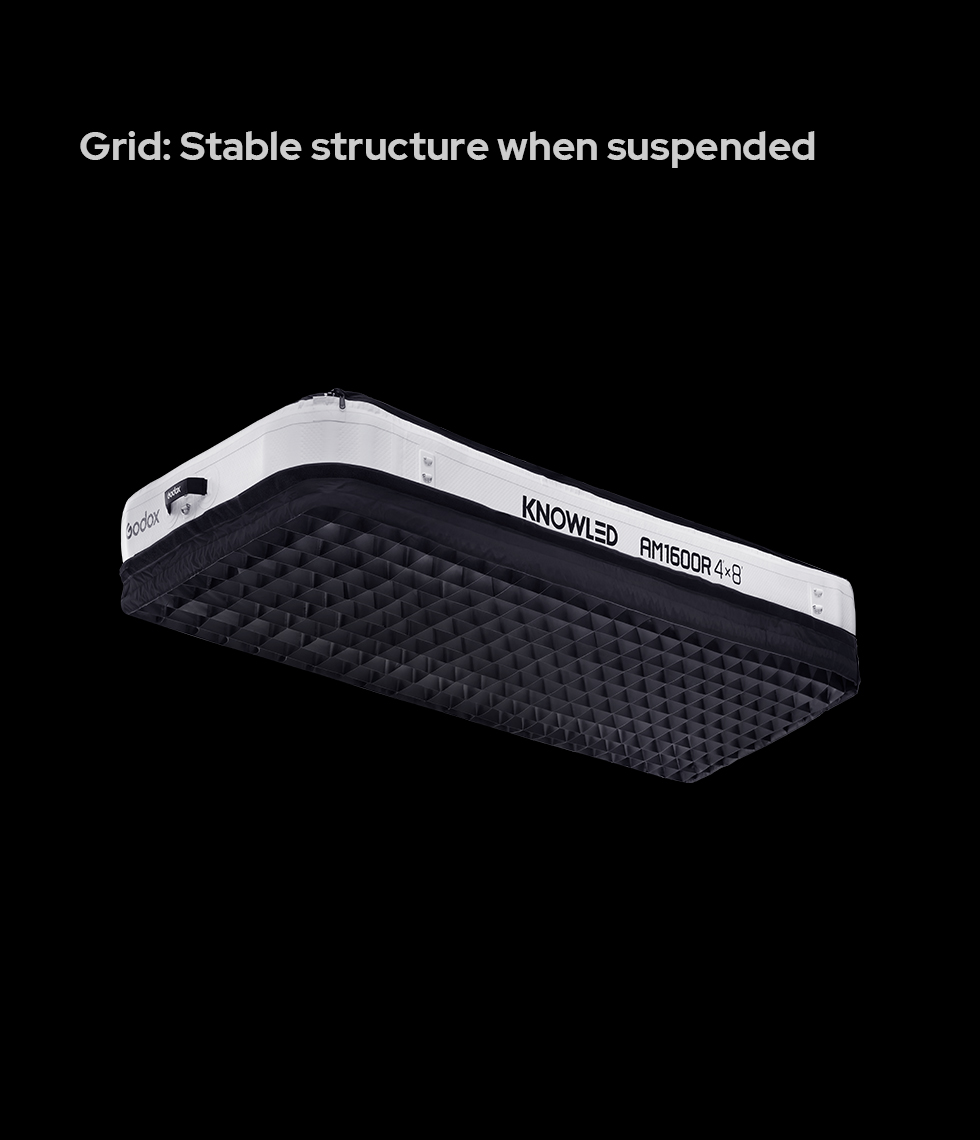

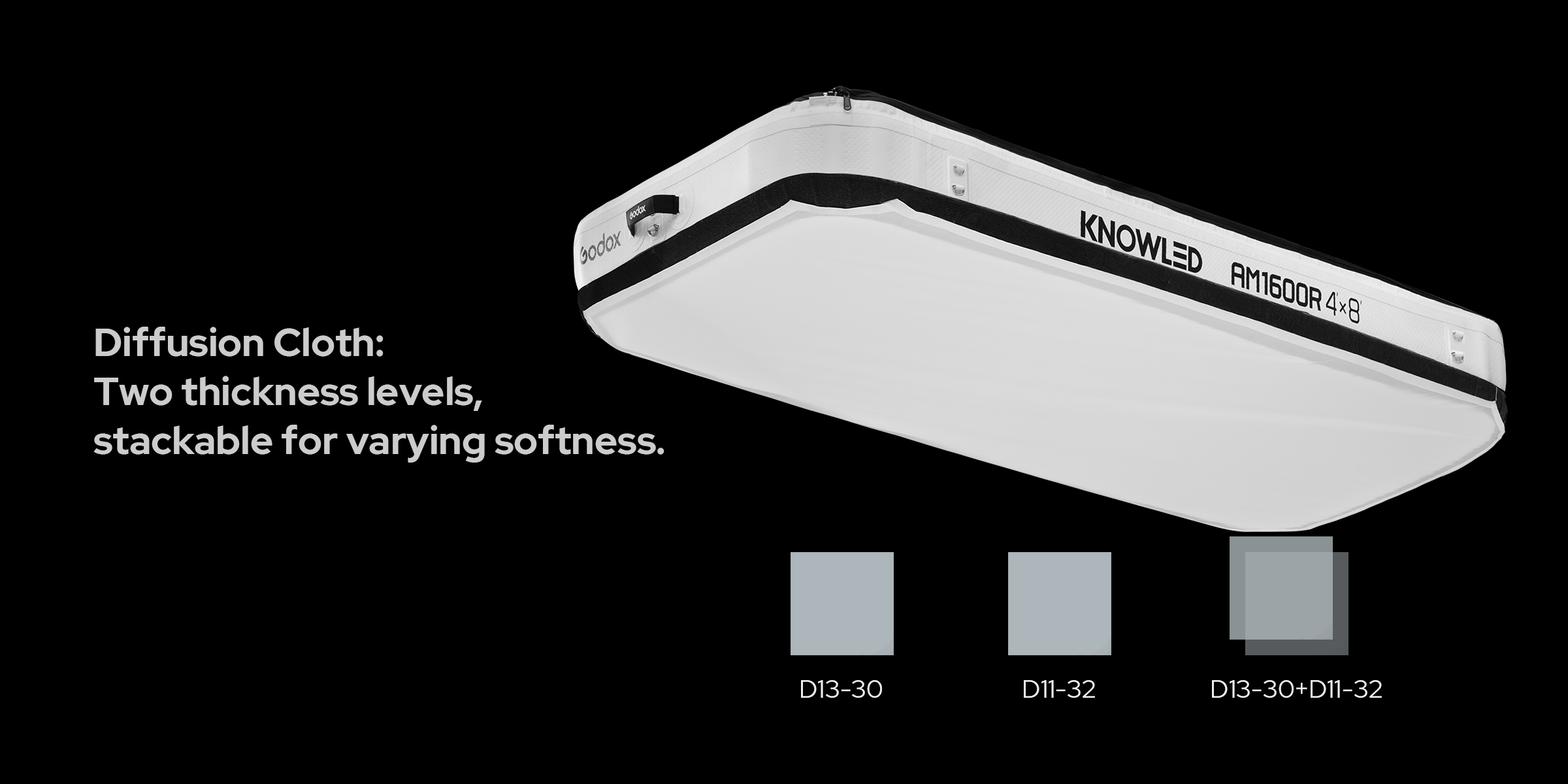

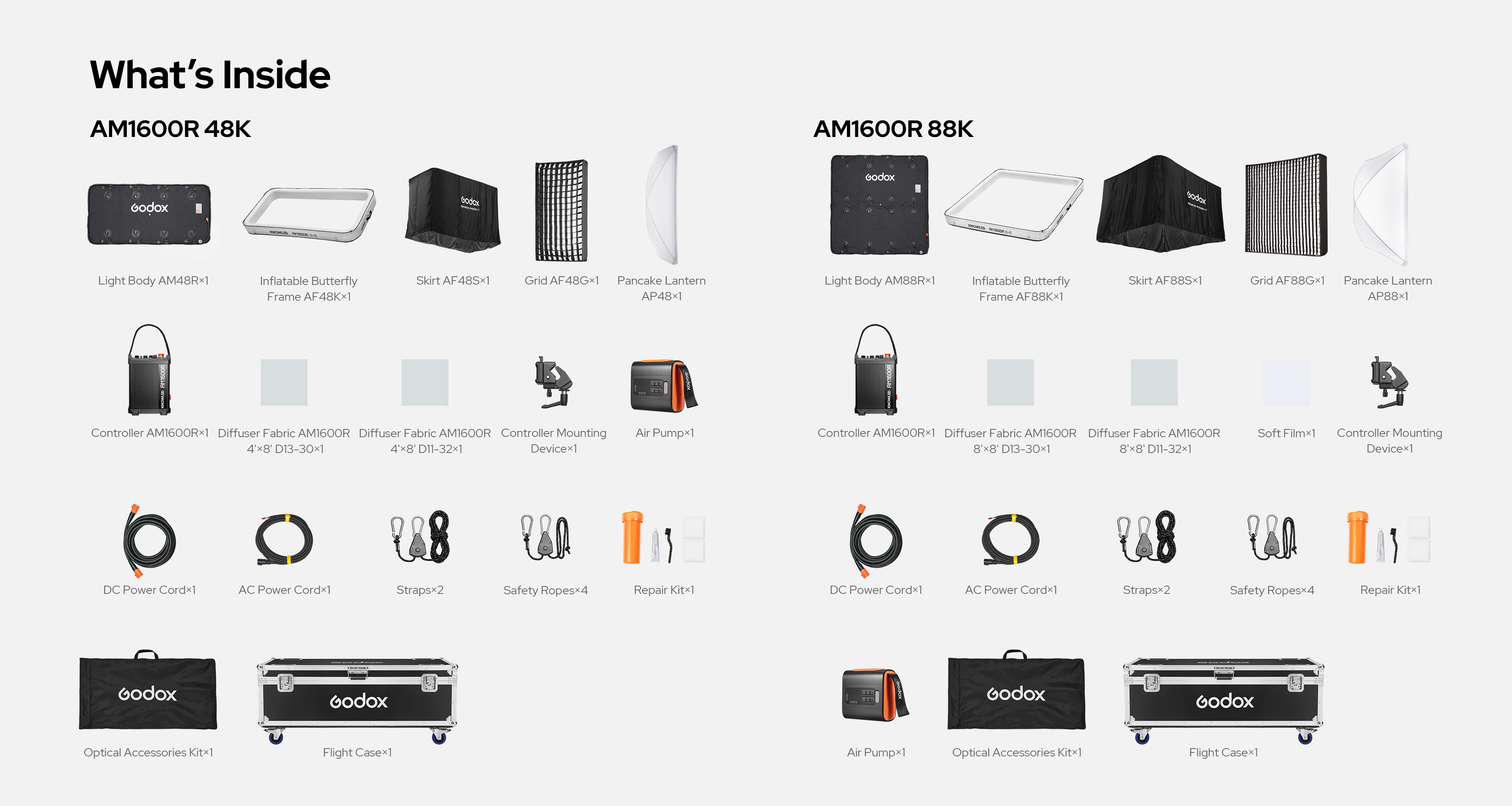

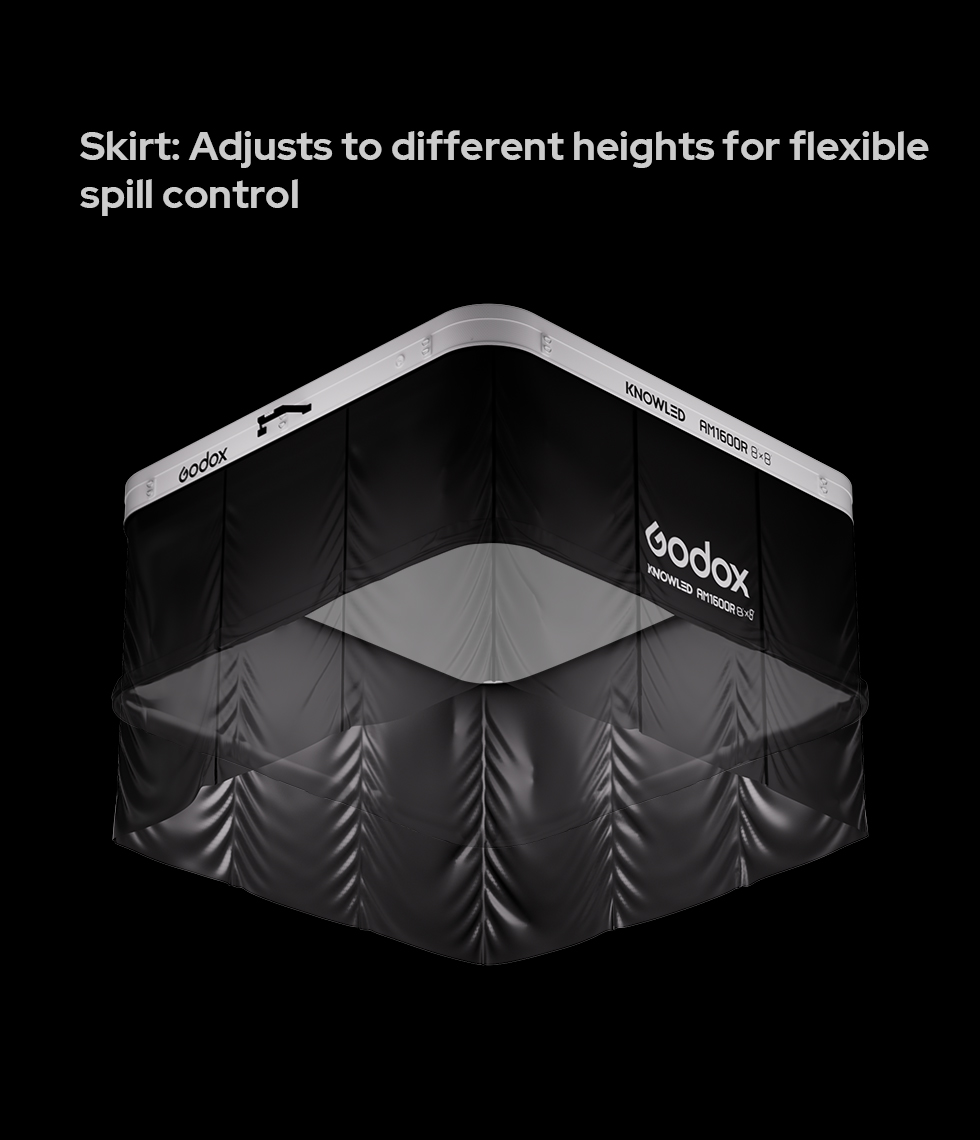

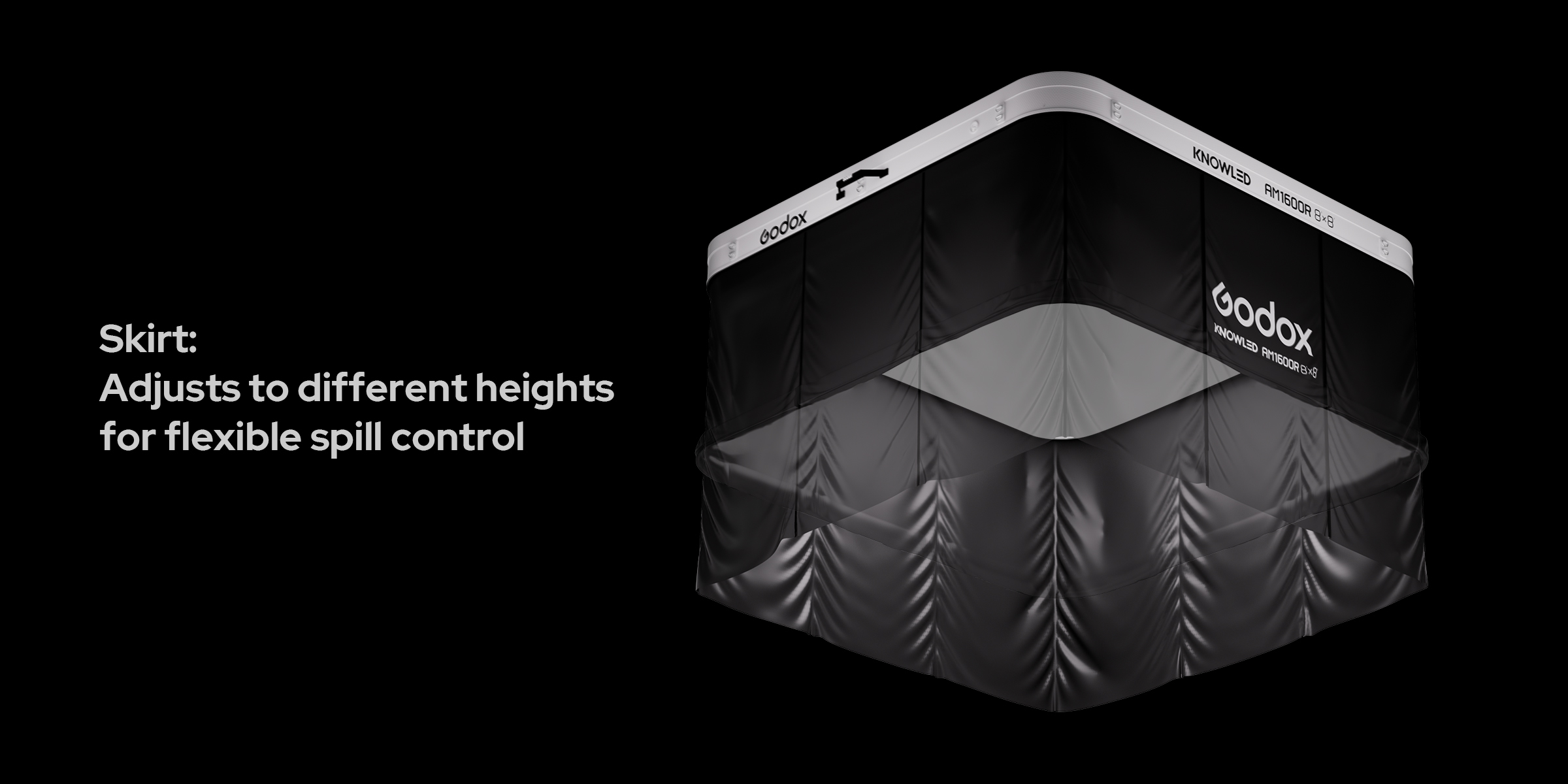

Versatile Detachable Accessories

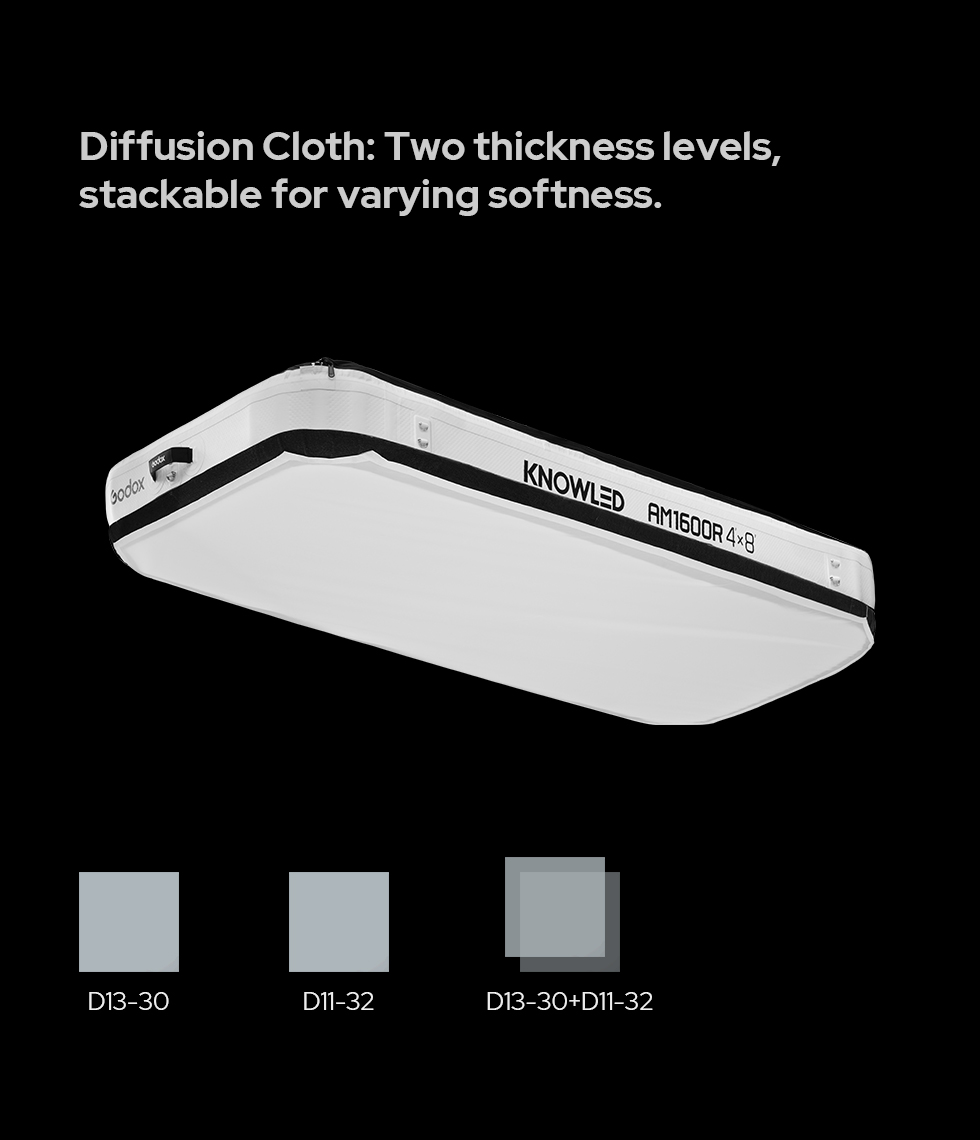

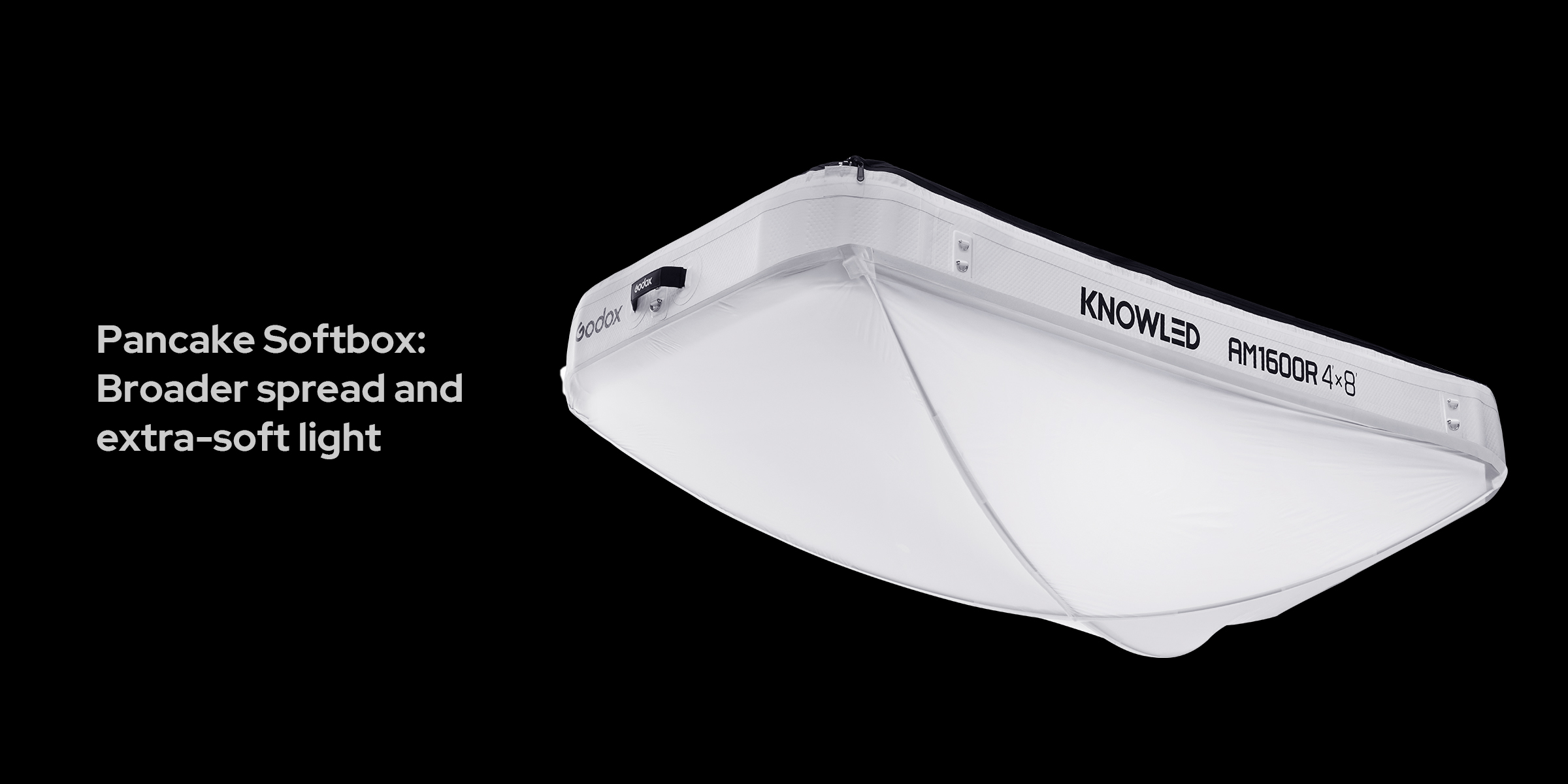

The AM1600R offers various detachable accessories that can be used individually or in combination, providing more options for creative lighting setups.

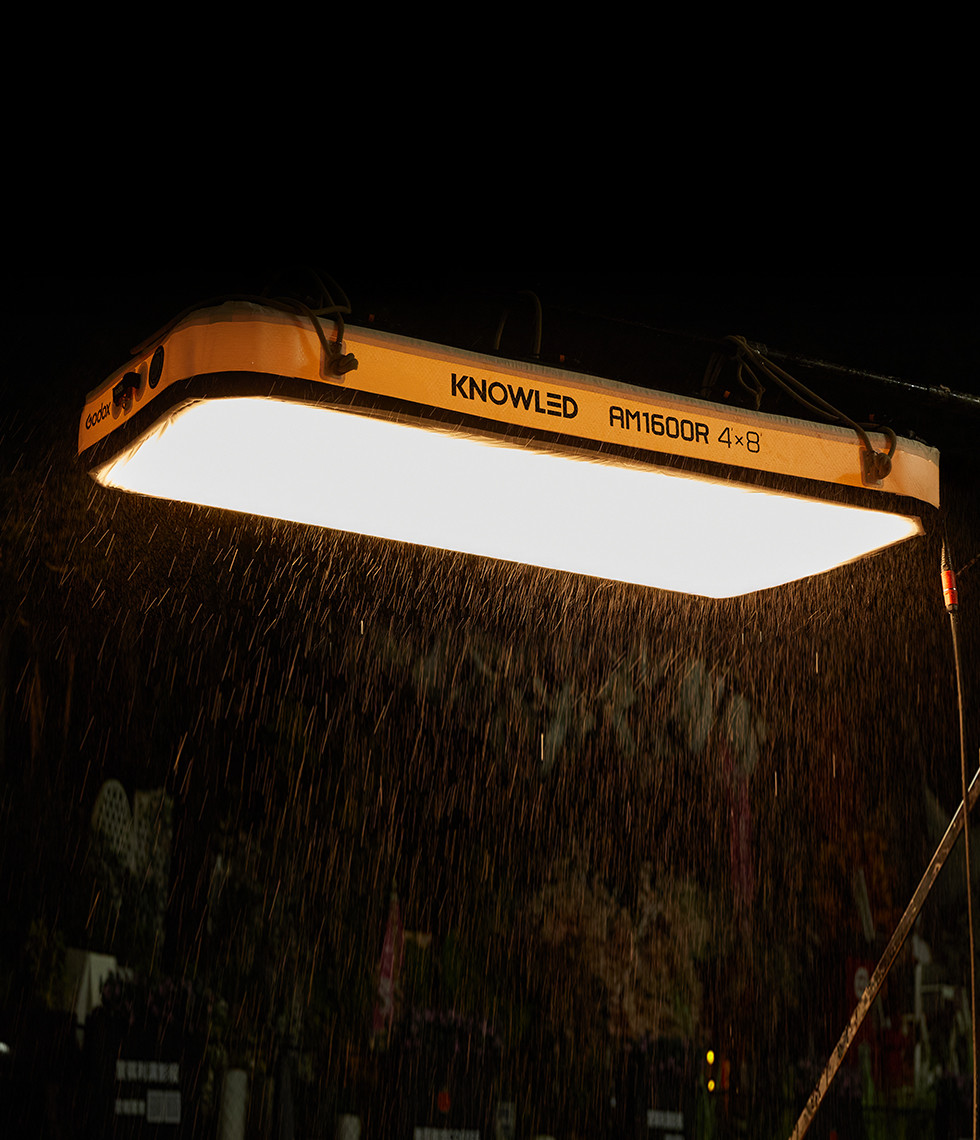

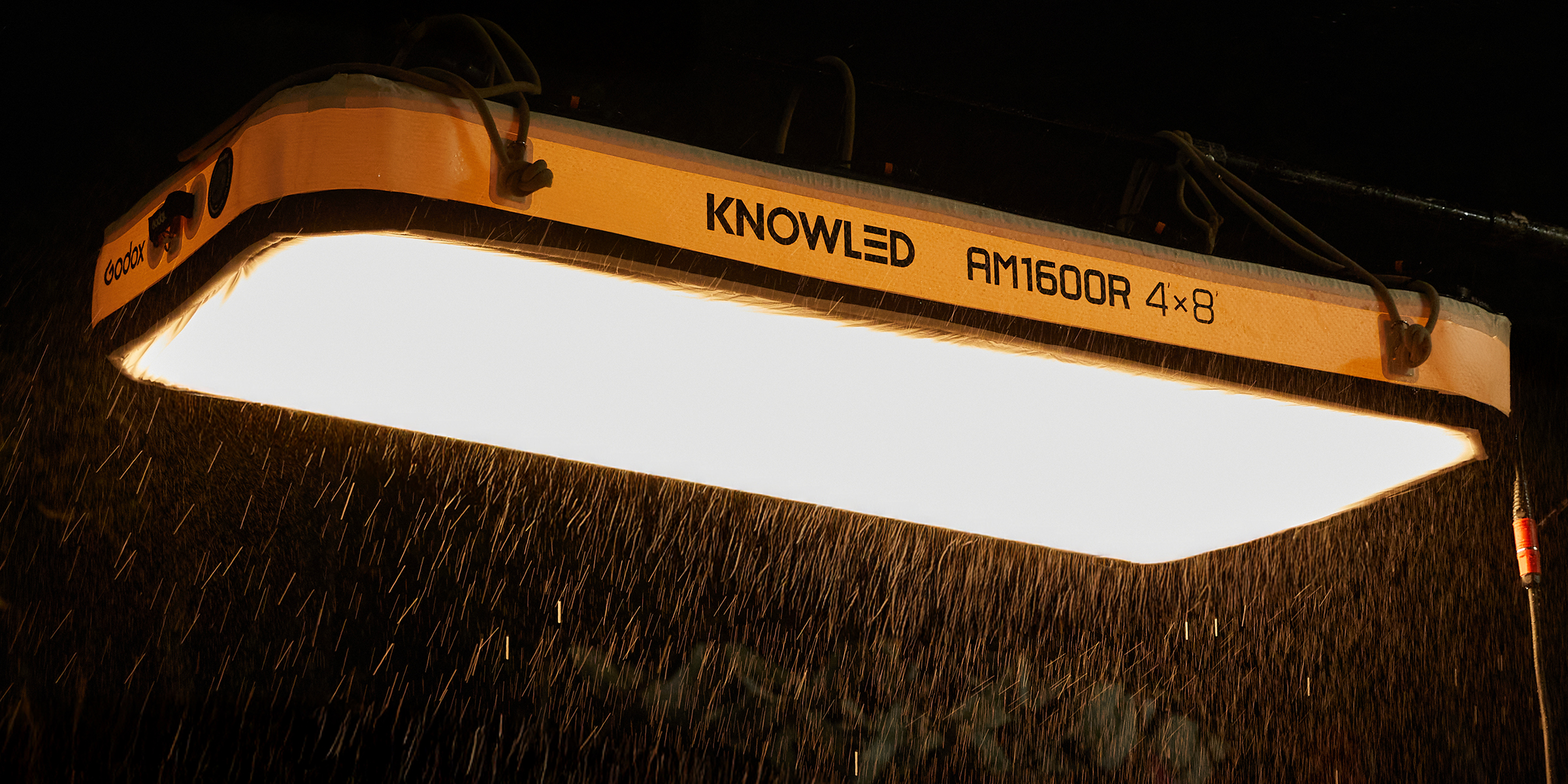

IP54 Weather Resistance
Built to handle unpredictable weather, the AM1600R’s light body and controller meet IP54 standards, providing reliable protection against rain, dust, and challenging outdoor conditions.

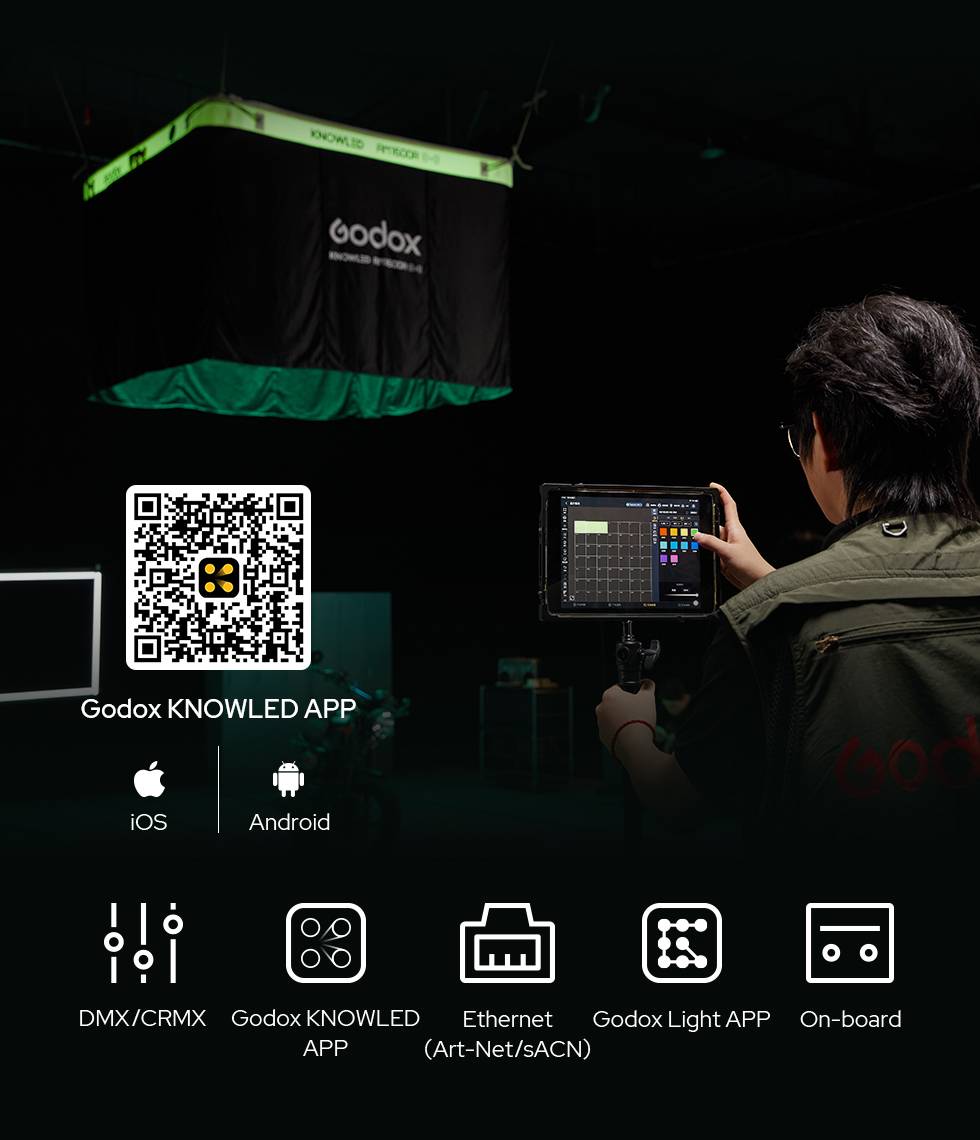

Every Pro Control You Need
The AM1600R covers every professional control methods you expect on set - CRMX, DMX, Ethernet, KNOWLED App and On-board control - for stable multi-light sync and precise, real-time adjustments in complex lighting environments.

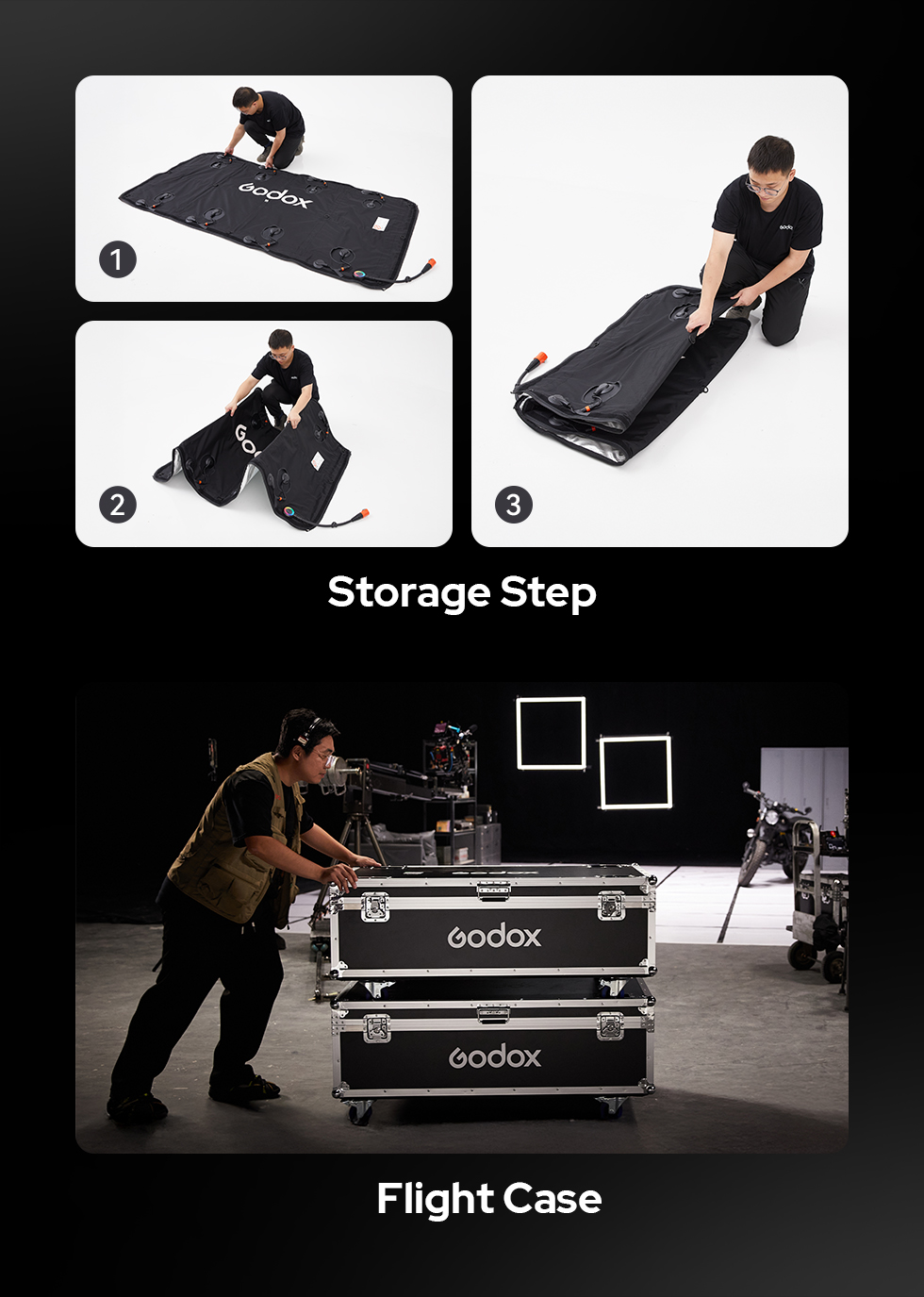

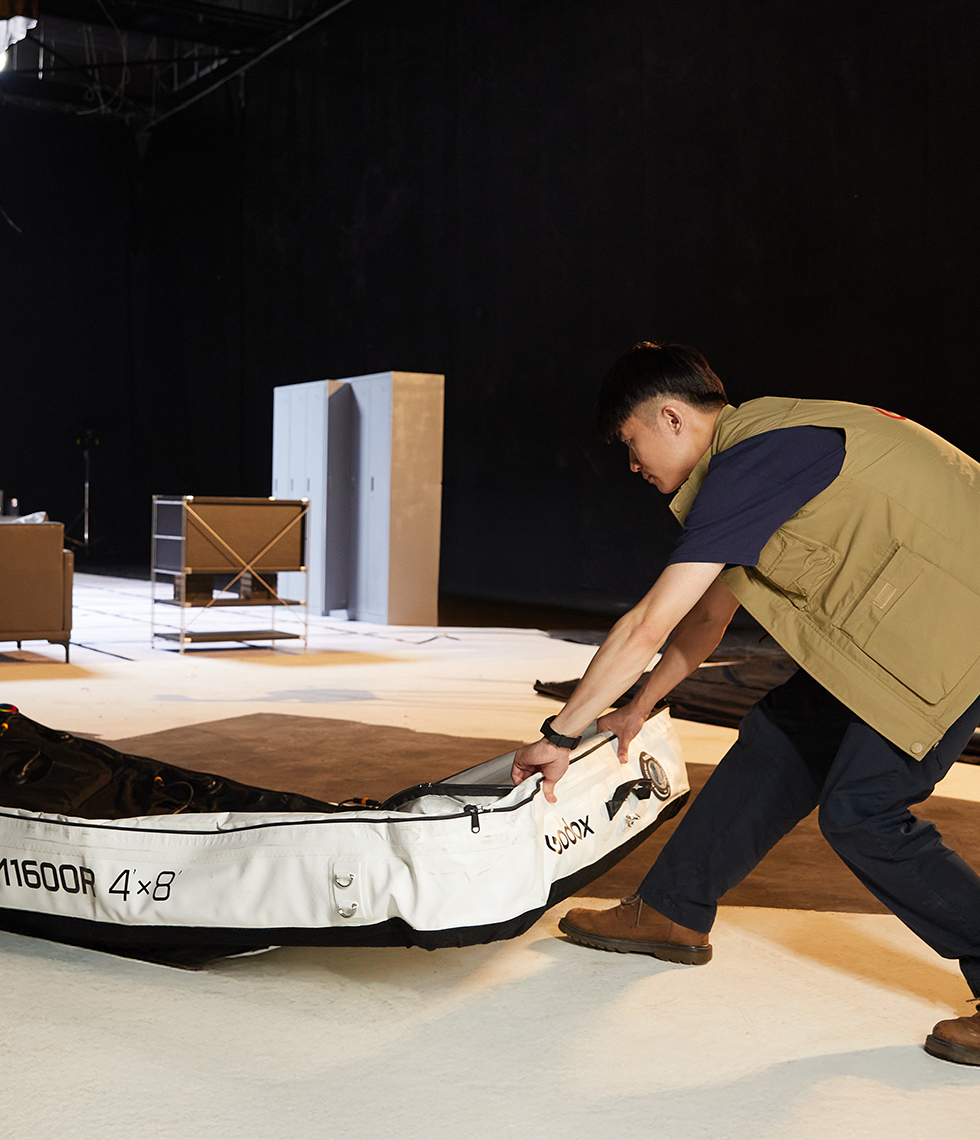

Foldable Design Enhance Mobility
To solve the storage and transport challenges of large-scale lighting setups, the AM1600R is fully foldable — including the light panels, inflatable butterfly frame, and accessories. The custom flight case holds the complete system. Wherever your shoot takes you, just pack it up and go.

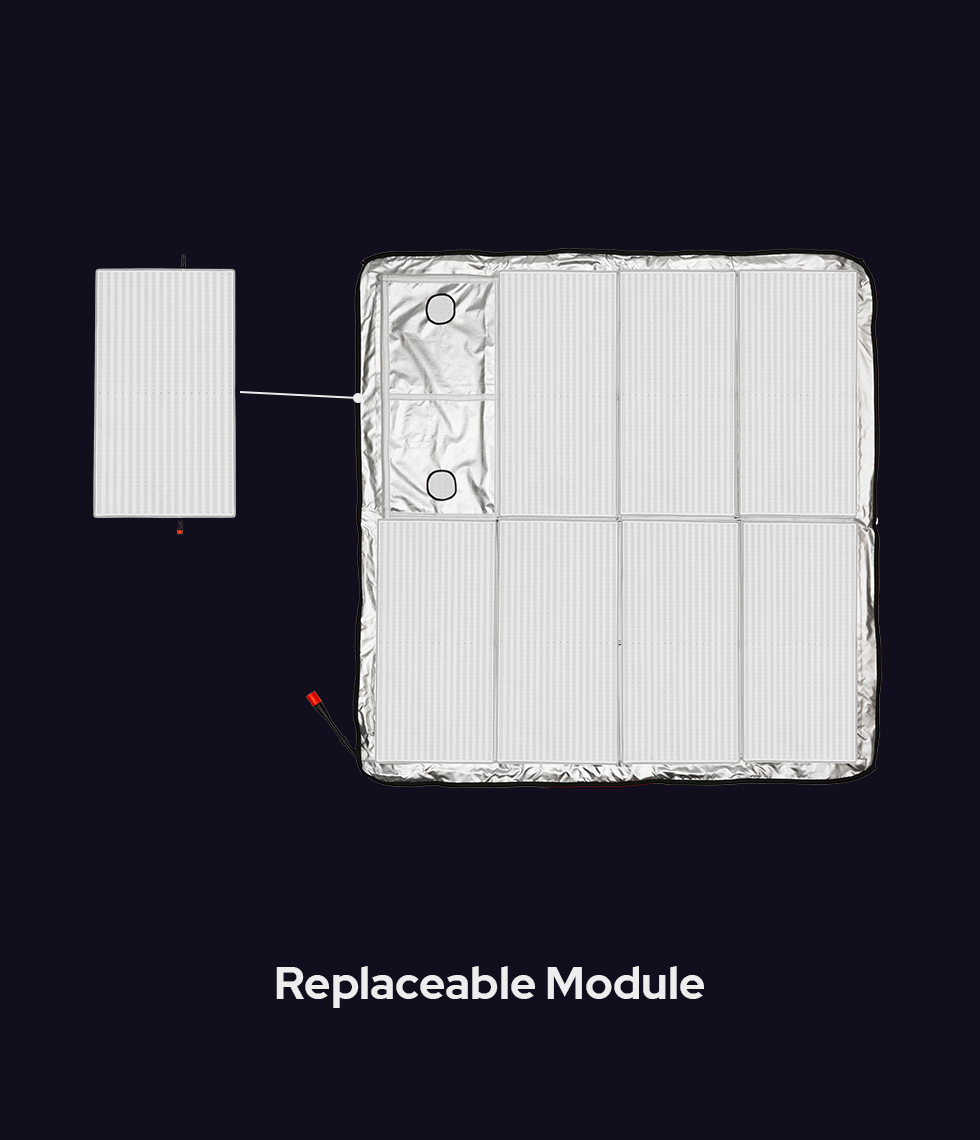

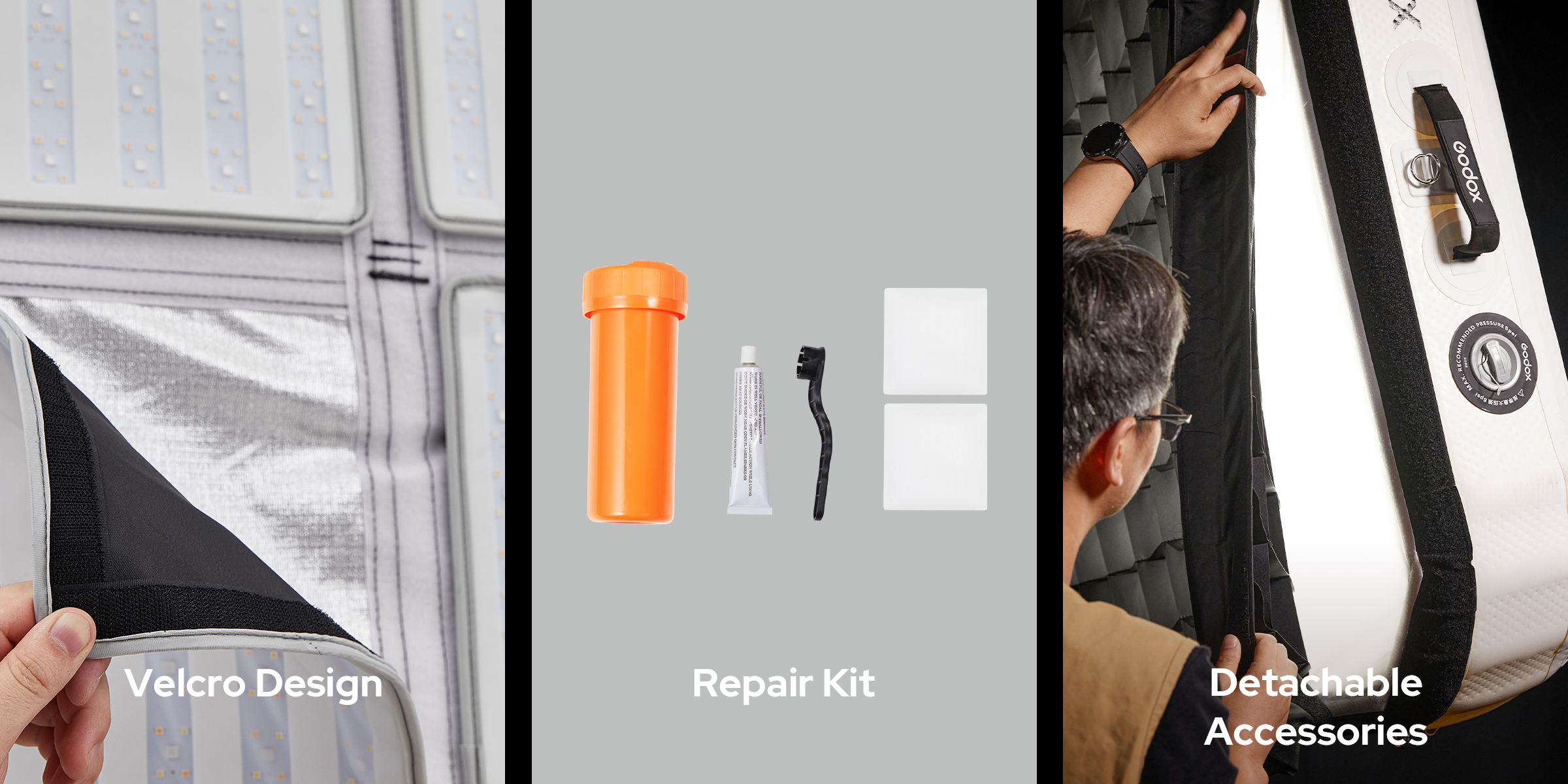

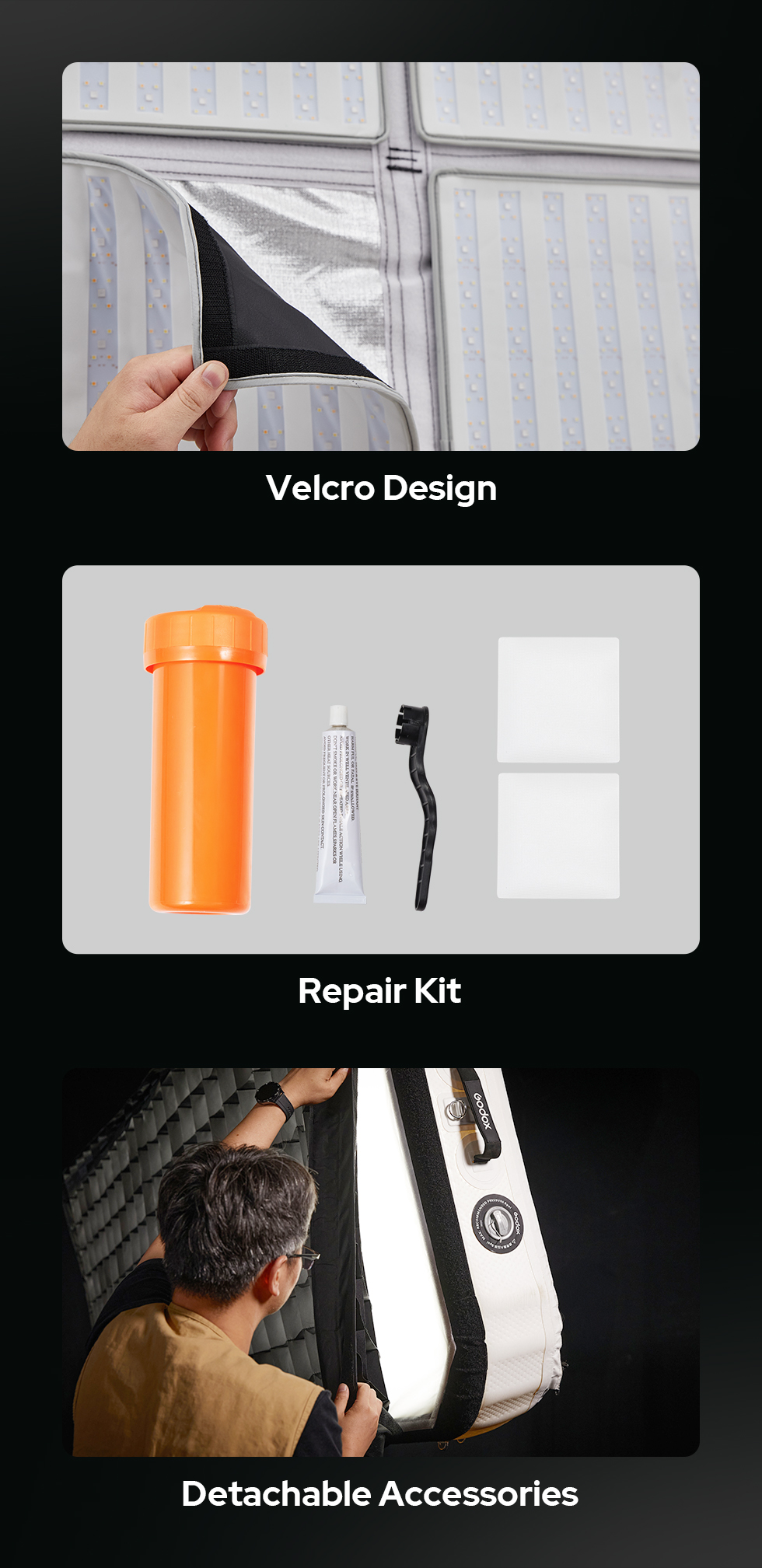

Efficient, Cost-Effective Maintenance
The AM1600R’s Velcro-fastened modular design makes panel replacements fast and hassle-free, saving time and cutting costs on set. A repair kit is included to fix any leaks in the inflatable butterfly frame quickly. Accessories are also fully detachable for easy cleaning or replacement.
Tech Specs
| Model | AM1600R |
| AC INPUT Port | Input: 100-240V～, 50/60Hz, 1800W |
| CCT Range | 1800K - 10000K |
| GM Adjust | -100% ~ 100% |
| Brightness Range | 0.0% ~ 100.0% |
| Dimming Curves | linear, S-curve, exponential, logarithmic |
| FX Modes | 14 |
| CRI | ≈ 96 |
| TLCI | ≈ 95 |
| Light Body/Controller Protection Grade | IP54 |
| Controlling Methods | DMX 512 controller, support RDM protocol/LumenRadio CRMX/Etherne/Art-Net&sACN protocol /Bluetooth app/ controller control |
| Bluetooth Controlling Distance | 60m |
| USB-A Port | Firmware Upgrade/5V⎓1.5A Power Supply |
| Working Environment Temperature | -20℃ ~ 45℃ |
| Dimension (without inflatable butterfly frame)≈ | AM48R Light Body: 90.55"*43.31" AM88R Light Body: 90.55"*90.55" AM1600R Controller: 10.63"*8.66"*14.57" |
| Net Weight (without inflatable butterfly frame)≈ | AM48R Light Body: 6.7kg AM88R Light Body: 12kg AM1600R Controller: 11kg |
