2.4GHz Wireless Microphone System
Watch Video
Popular search

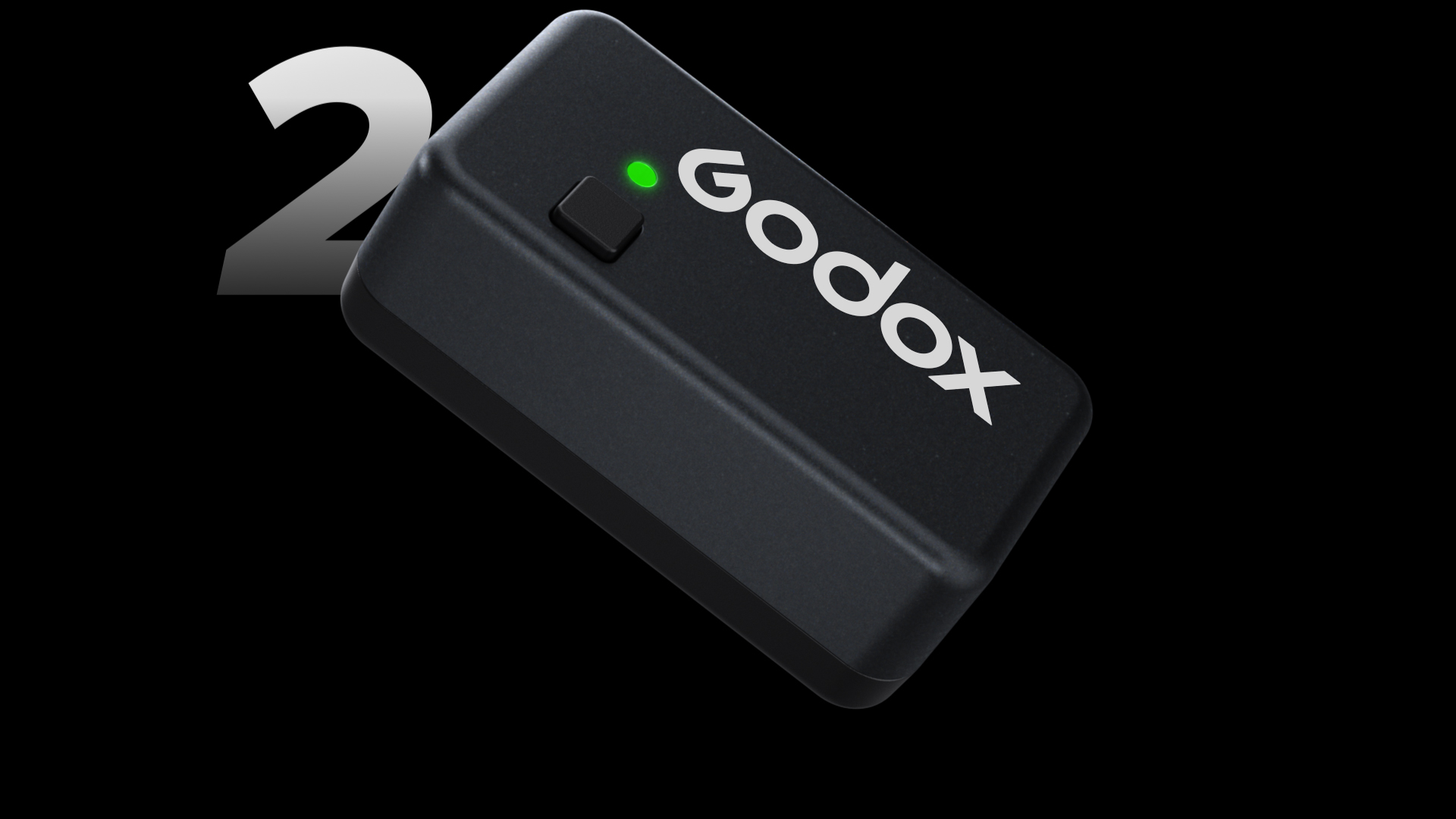

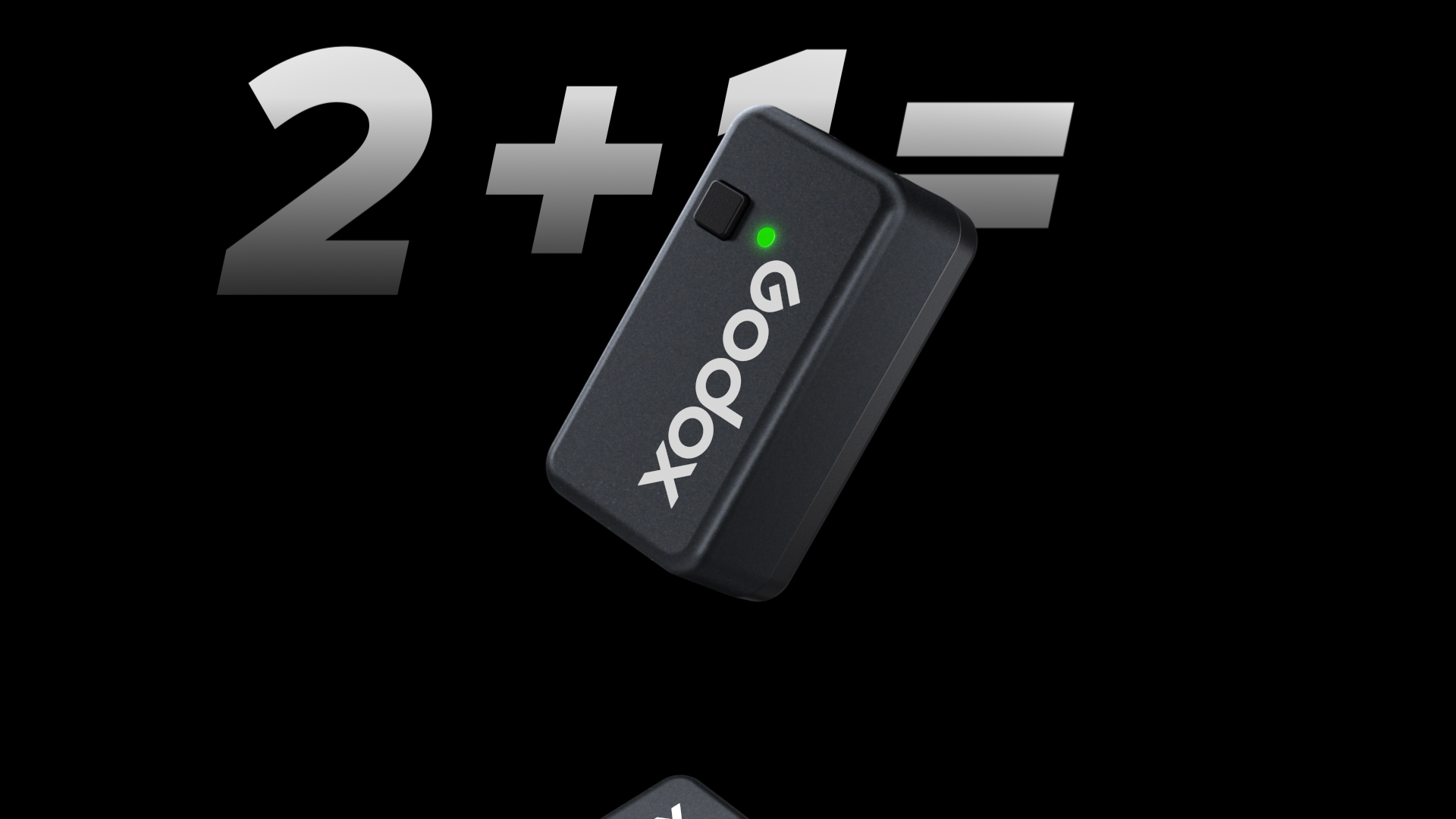

Using an unparalleled 2+1=1 design language, Magic XT1 presents a groundbreaking new appearance with a transmitter-in-receiver structure for both TXs charging & storage in one RX, delivering magical portability for interview, livestream, outdoor shooting and more.
Crafted with top-notch acoustic technology, Magic XT1 boasts premium microphone components delivering impressive 48kHz/24bit Hi-Res audio with a 70dB SNR and a Max. 115dB SPL.
Magic XT1 provides 3 recording modes – Mono/Stereo/-6dB Safety Track, presenting high-quality audio capture and added security for various applications.

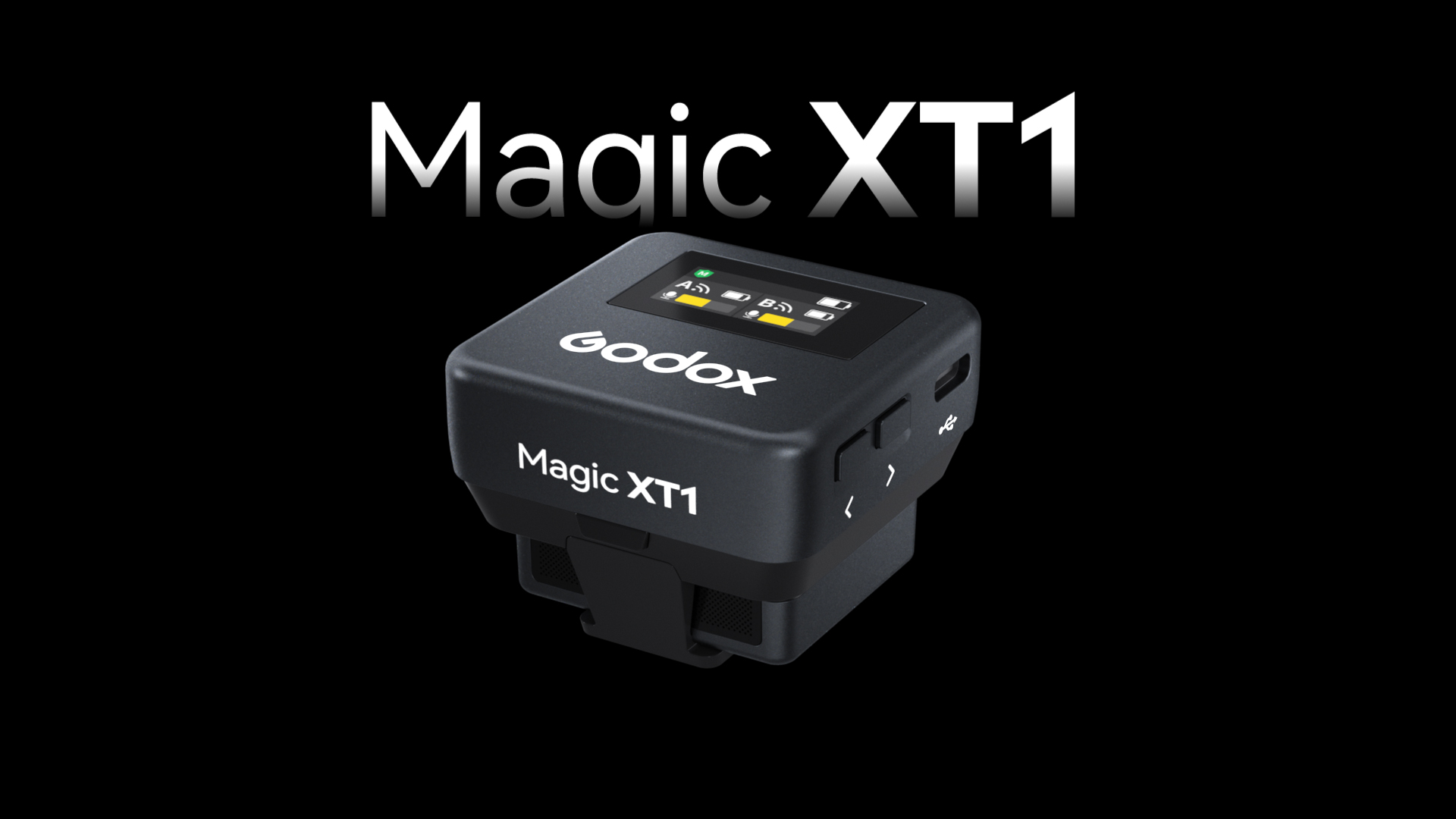

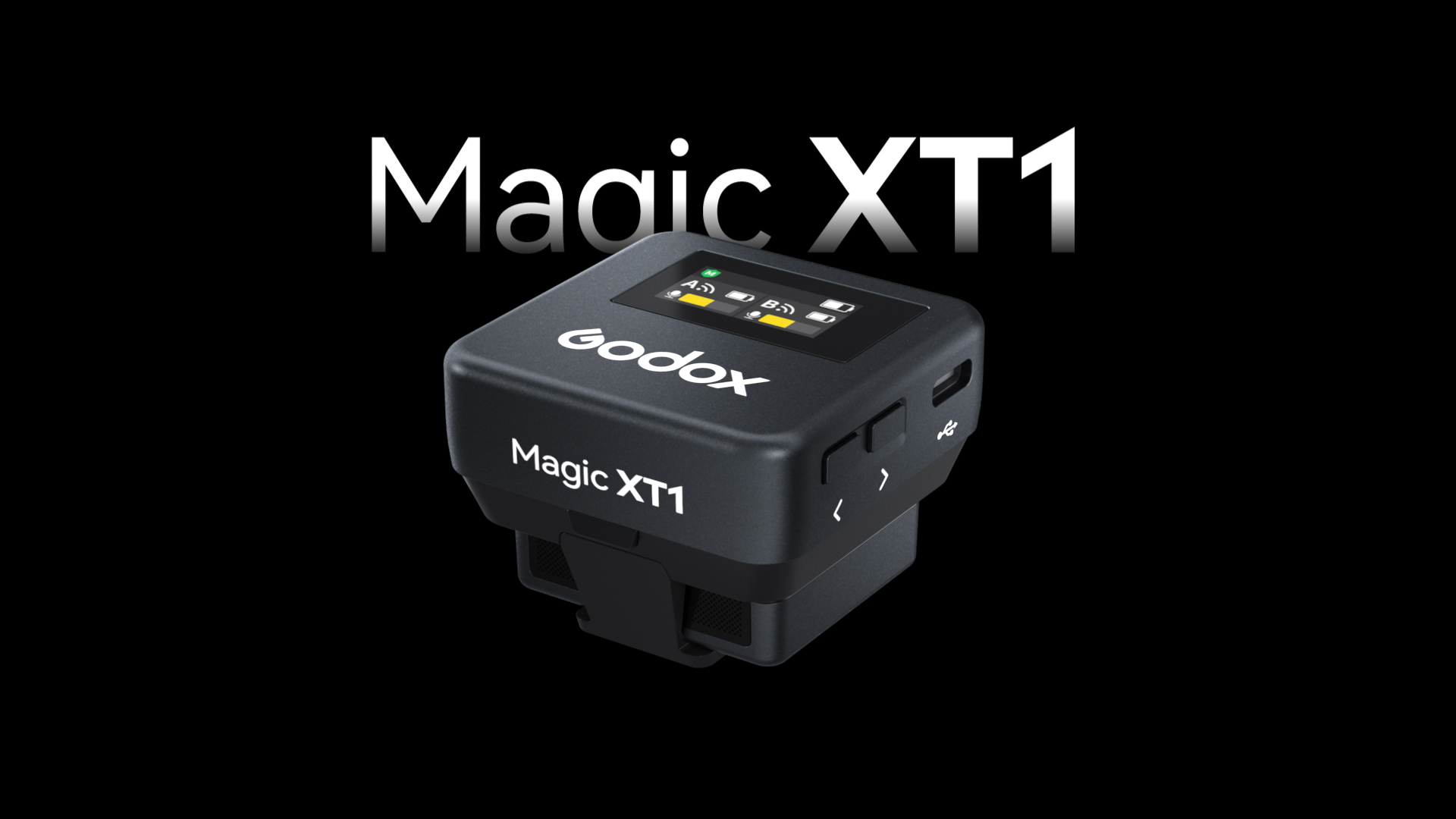

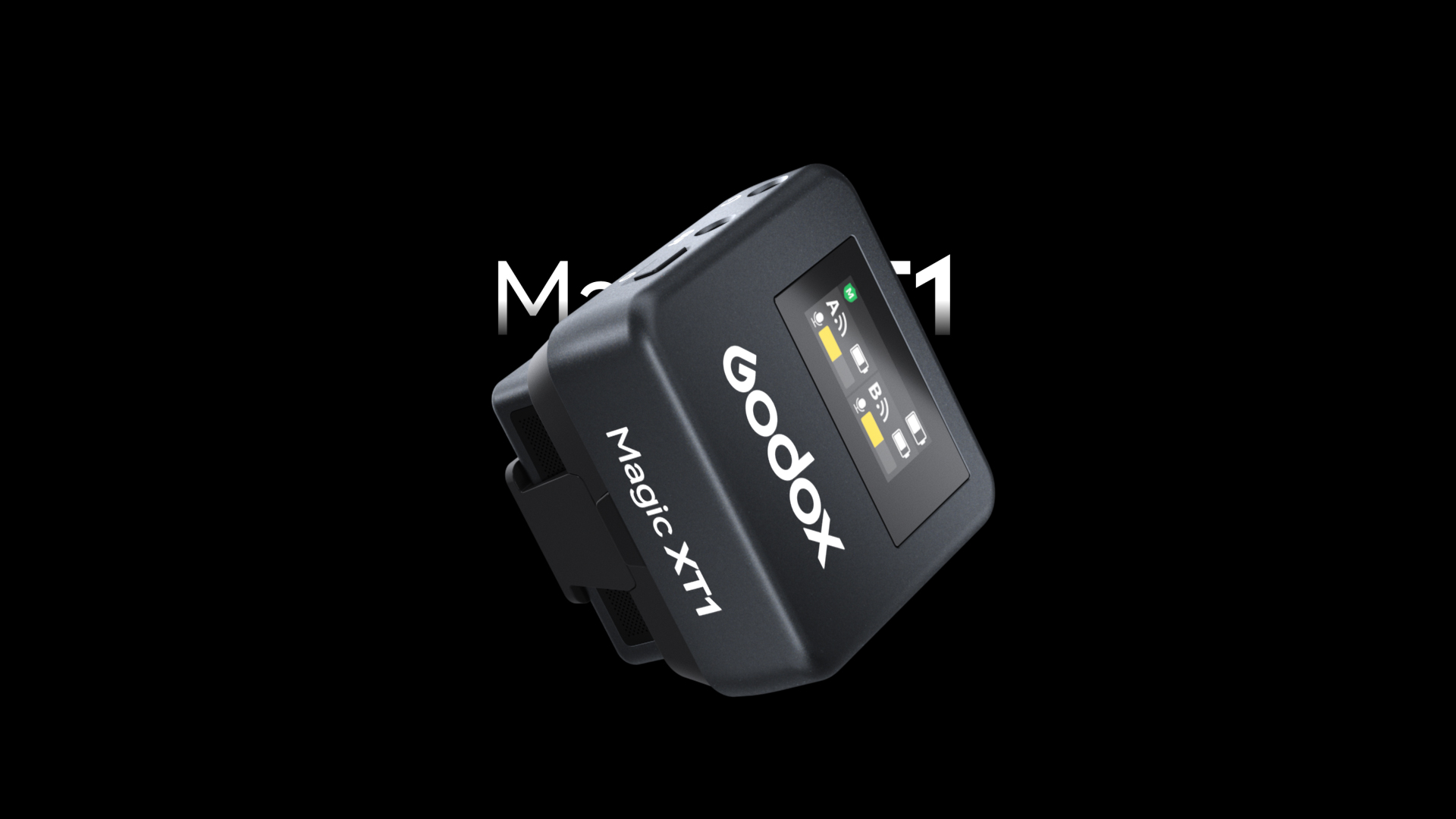

Magic XT1 is engineered with an intuitive OLED touchscreen & buttons as well as a 3.5mm headphone jack for effortlessly fine-tuning and real-time monitoring in every recording scenario.
Supported by the USB Audio Class (UAC) standards, Magic XT1 enables users to get Instant digital audio connectivity to the desktop and create via a single Type-C cable.
The system offers powerful custom settings, including 1-click dynamic noise reduction (DNR), 150Hz low-cut filter, and 10-level volume adjustment for precise tuning of each microphone.
Constructed with a high-gain 2.4GHz antenna, Magic XT1 can achieve up to 200m line-of-sight transmission distance, letting you stay connected even in challenging scenarios.

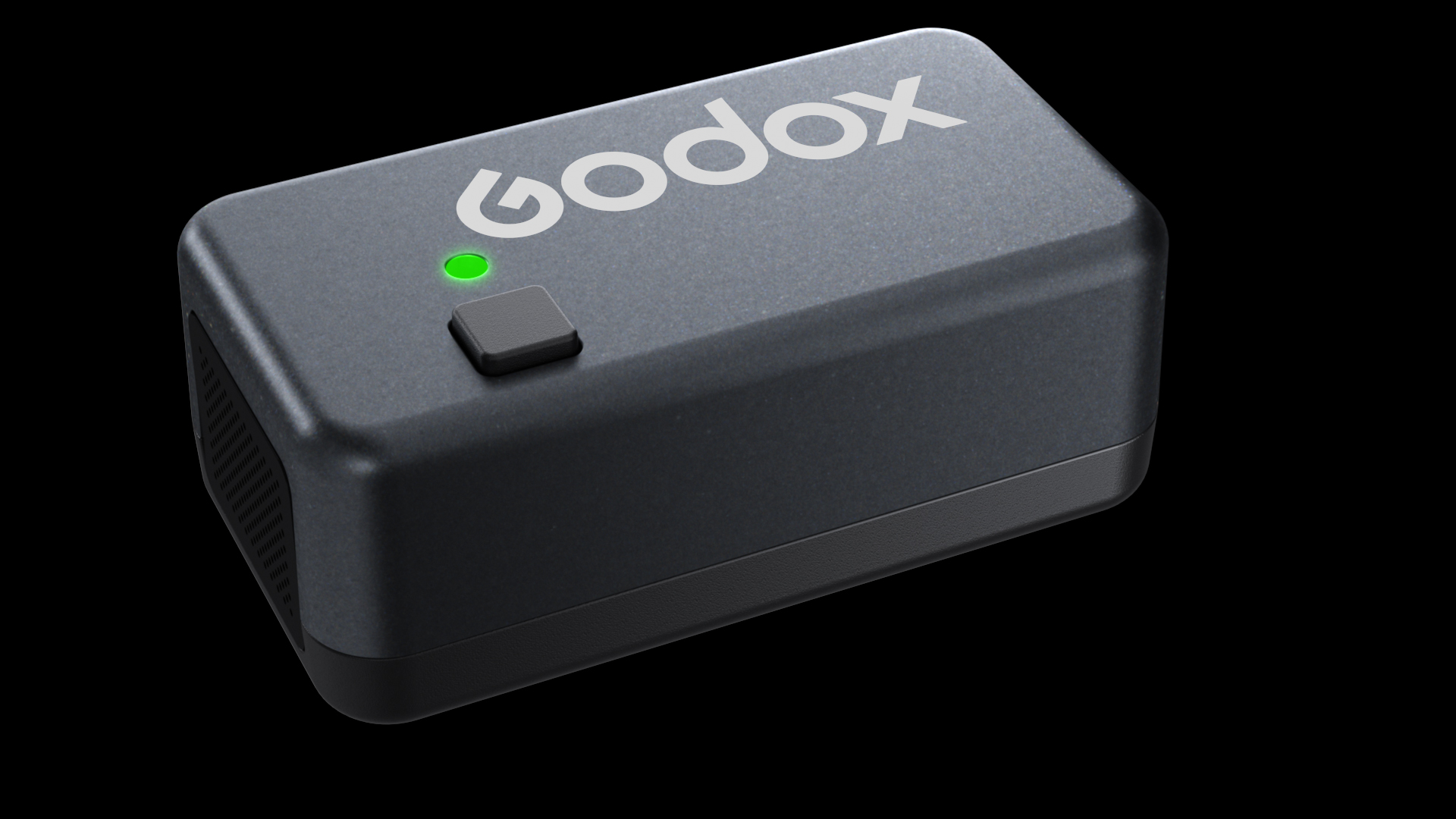

The transmitter provides approx. 8 hours of runtime, and the entire system powered by the RX supports up to 16 hours of recording, making it an excellent on-the-go gear for your content creation.
| System Model | Magic XT1 |
| Transmission Type | 2.4GHz frequency hopping system |
| Pickup Pattern | Omnidirectional |
| Frequency Range | 20Hz~20KHz |
| Max. SPL | 115dB |
| Sampling Rate | 48kHz/24bit |
| Signal to Noise Ratio ≈ | 70dB |
| Max. Wireless Transmission Distance | 200m (sight distance) |
| Working Environment Temperature | -10℃ ~+50℃ |
| Input/Output Parameters | TX Charging Paints: 5V⎓80mA RX Charging Points: 5V⎓80mA (*2) RX USB-C Inputs: 5V⎓550mA |
| Lithium Battery Parameters | TX: 3.8V, 80mAh, 0.304Wh RX: 3.8V, 680mAh, 2.58Wh |
| Working Time | TX: Approx. 8h RX: Approx. 16h (with two transmitters) |
| Charging Time | TX: Approx.2h RX: Approx. 2.5h |
| Dimension ≈ | TX: 0.66”X0.35”X0.25” RX: 0.94”X0.94”X0.69” |
| Net Weight ≈ | TX (excluding the magnetic back button): 8g RX: 50g |
