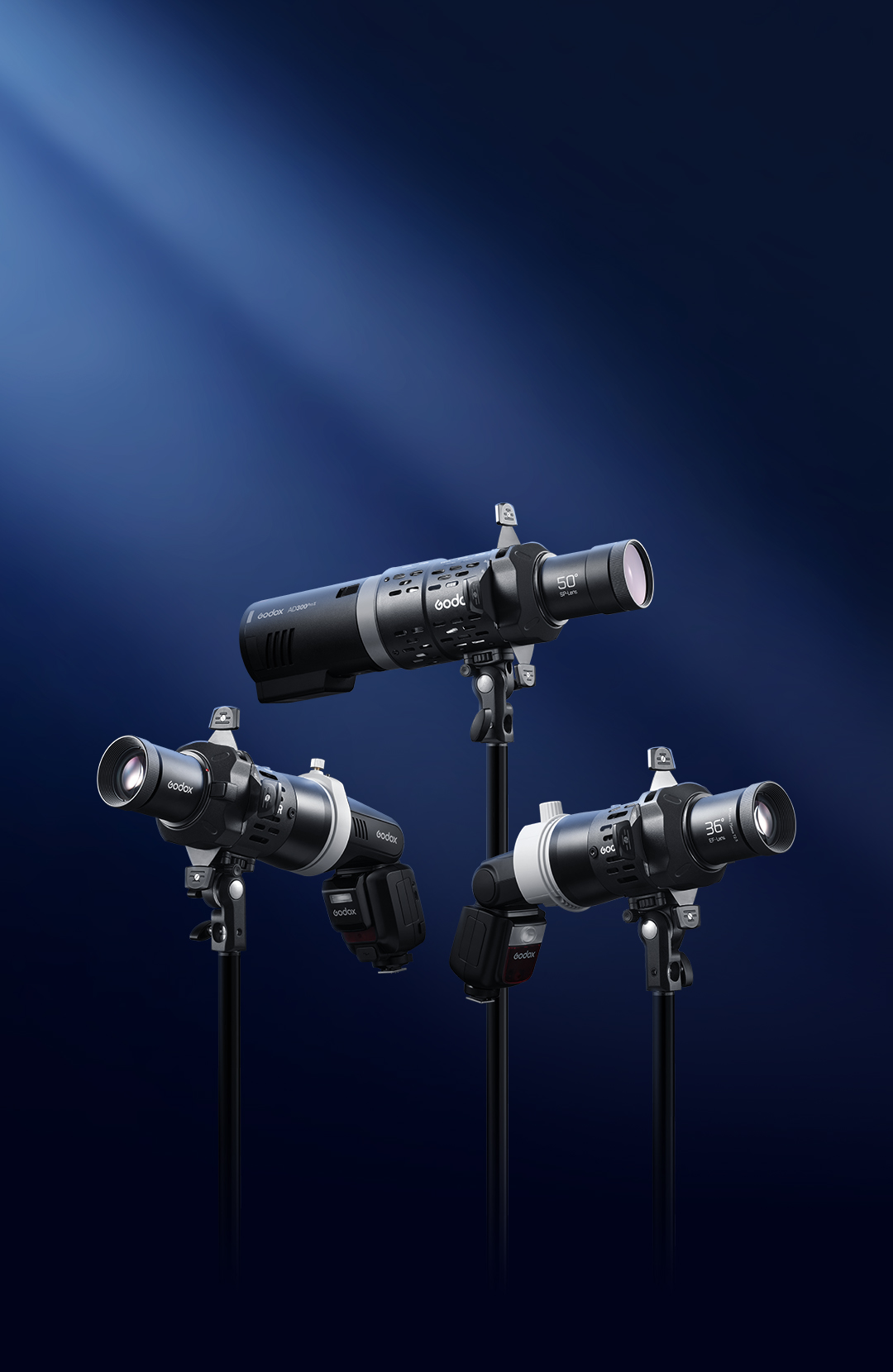

Introducing the Godox Flash Projector — AD-FP, FP-M, and FP-R — designed to integrate seamlessly into the Godox flash ecosystem and support the three primary flash-head formats: round head, square head, and Godox mount. With a compact form factor, the Flash Projector series brings studio-grade projection control to on-camera and portable lighting setups. Featuring professional optics, interchangeable lenses, a 360° rotatable design, and a versatile accessory system—including GOBOs, gels, and an optional iris—it delivers precise, efficient, and highly creative control of light.
Three-Mount Choice

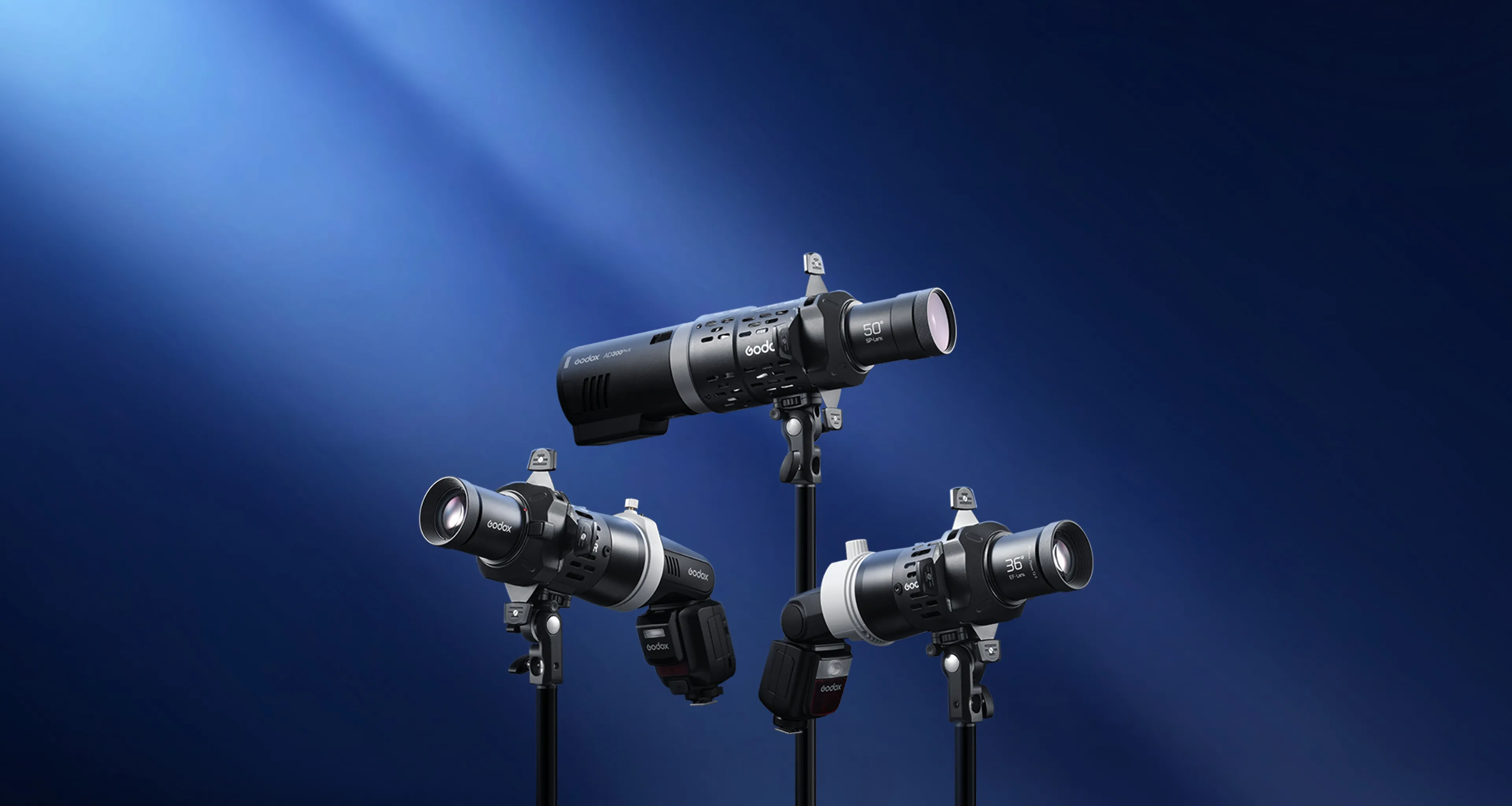

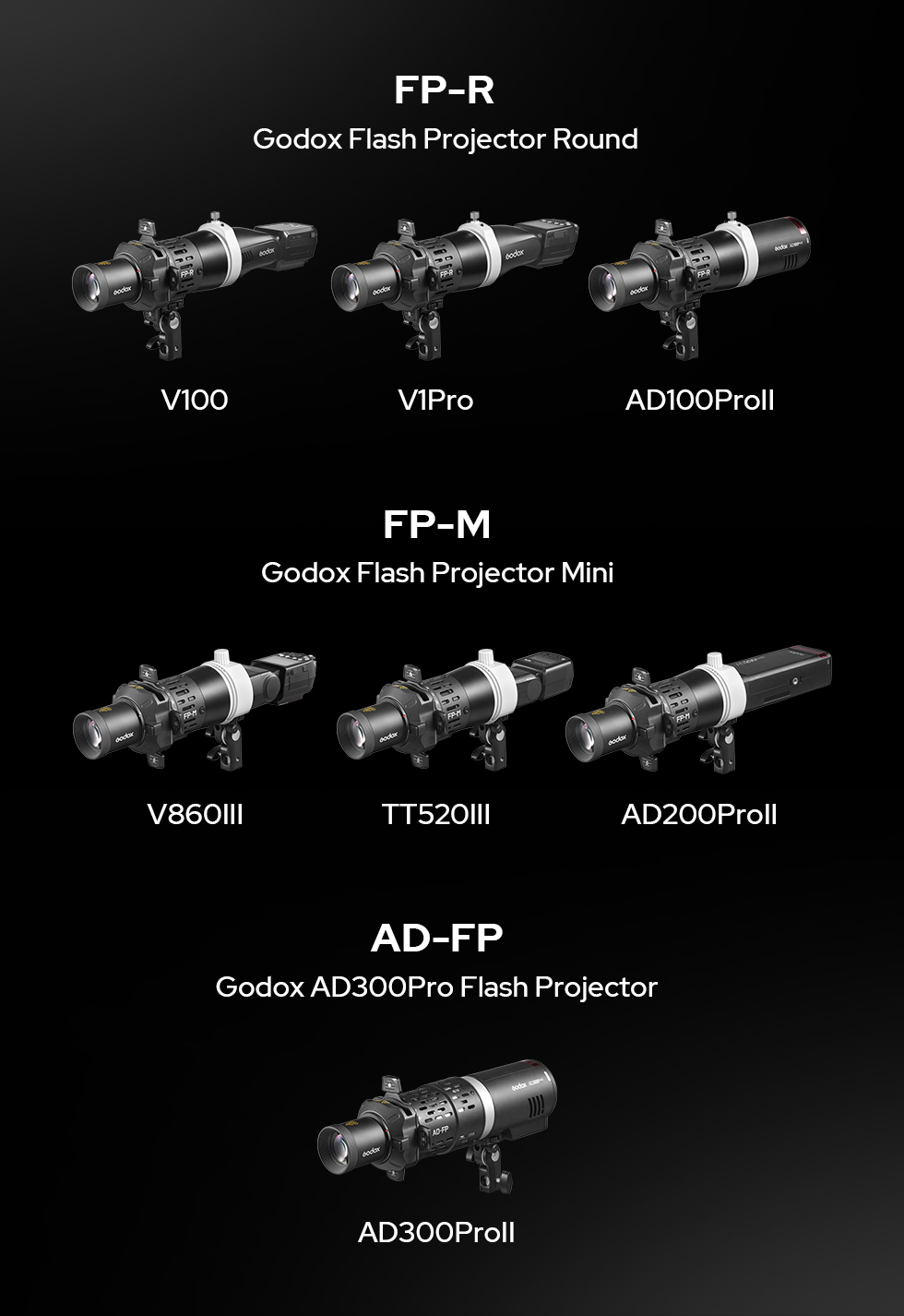

Available in three models — FP-R (round head), FP-M (square head), and AD-FP (Godox mount) — the Flash Projector family covers the three major flash-head ecosystems. This broad compatibility allows photographers to deploy the same projection solution across multiple flashes and shooting environments, improving equipment utilization and enabling seamless transitions between location and studio workflows.
High-Performance Projection Optics
An optimized optical design ensures even light distribution and consistent brightness throughout the projected image. Whether projecting patterns or shaping light, it delivers clean, controlled illumination with dependable optical performance.
Integrated Four-Leaf Shutter
An integrated four-leaf shutter allows precise control over the projected light shape.
Create rectangular, triangular, or custom geometric forms directly within the projector, enabling accurate light shaping without additional accessories.
Create rectangular, triangular, or custom geometric forms directly within the projector, enabling accurate light shaping without additional accessories.
Interchangeable Projection Lenses

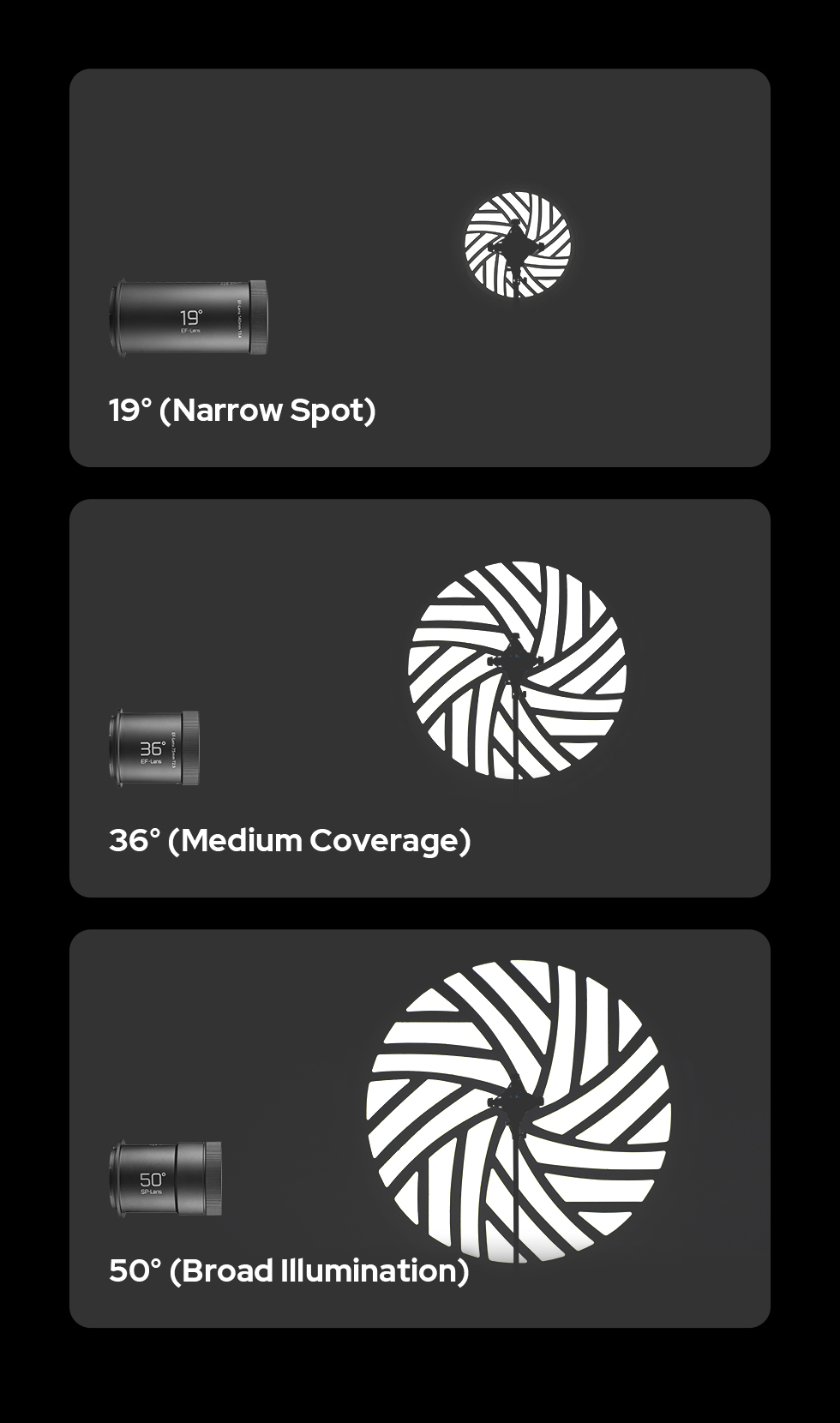

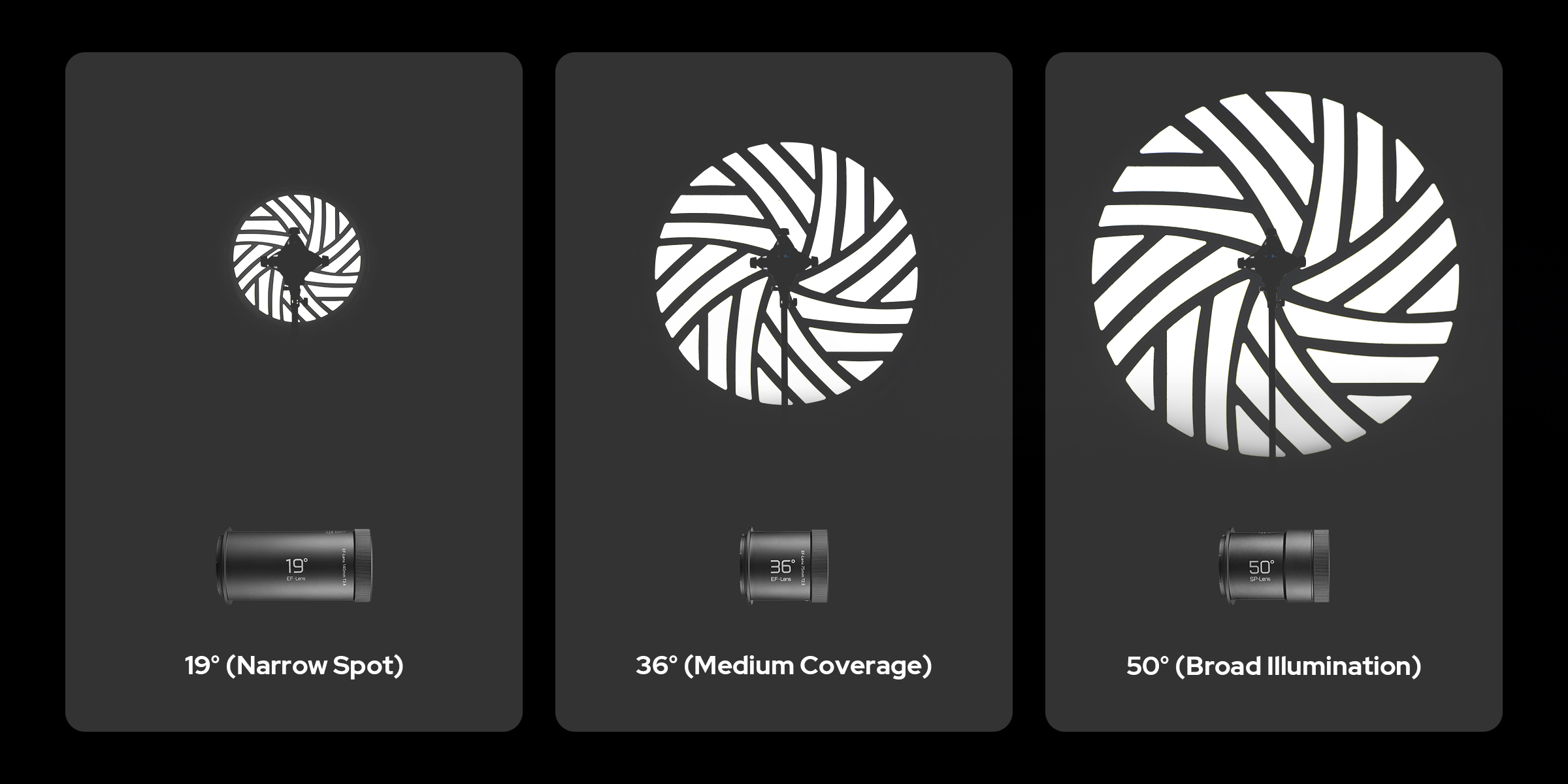

The interchangeable lens system includes 19°, 36°, and 50° projection lenses, enabling precise control over beam spread and projection size. From tight, focused effects to broader scene coverage, the Flash Projector adapts easily to different shooting distances and creative needs.

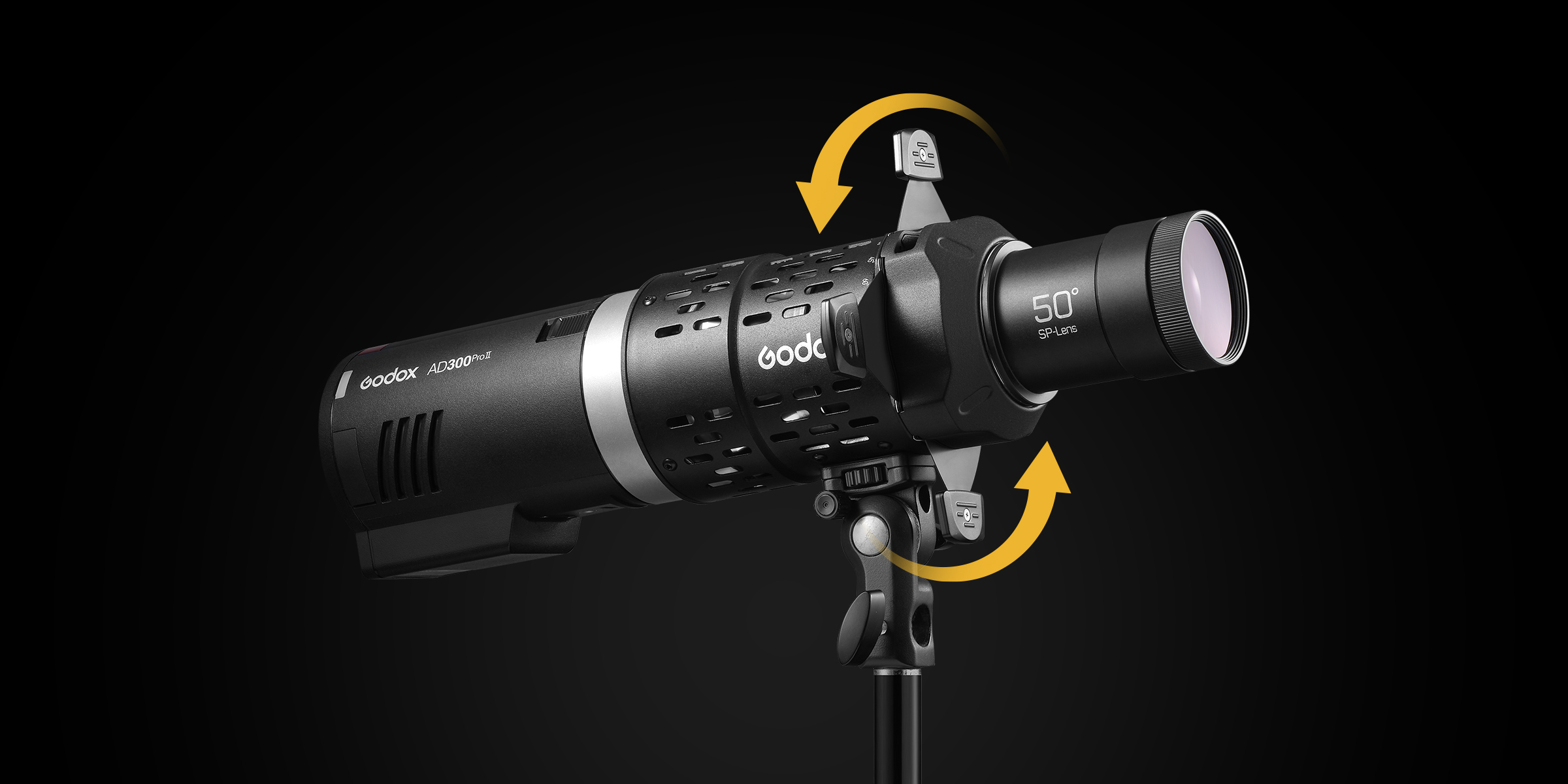

360° Rotatable Design

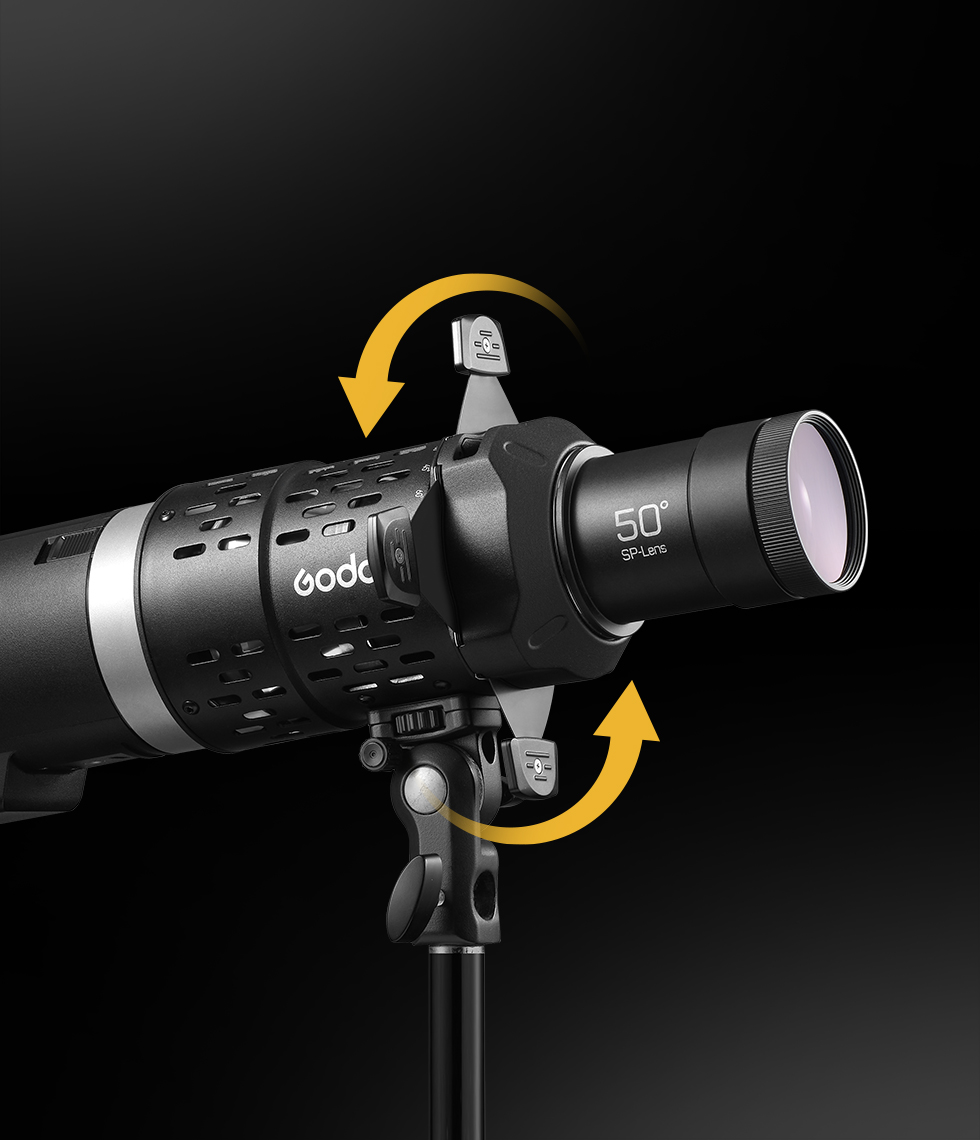

A rotatable front barrel enables continuous 360° adjustment of GOBO orientation without removing the slide. This design allows for faster, more precise pattern placement, minimizing interruptions on set and ensuring smooth alignment with the composition.
Extensive Gobo & Gel Compatibility
The Flash Projector supports slide-in color and diffusion gels as well as Size-M GOBOs. Add texture, pattern, and color to your lighting to enhance mood, depth, and visual storytelling across a wide range of photographic styles.
Slot-Mounted Iris (Optional)
An optional slot-mounted iris diaphragm (SP-ID) enables fine adjustment of projected light size—from wide coverage to tightly focused highlights—allowing photographers to direct attention exactly where it’s needed.

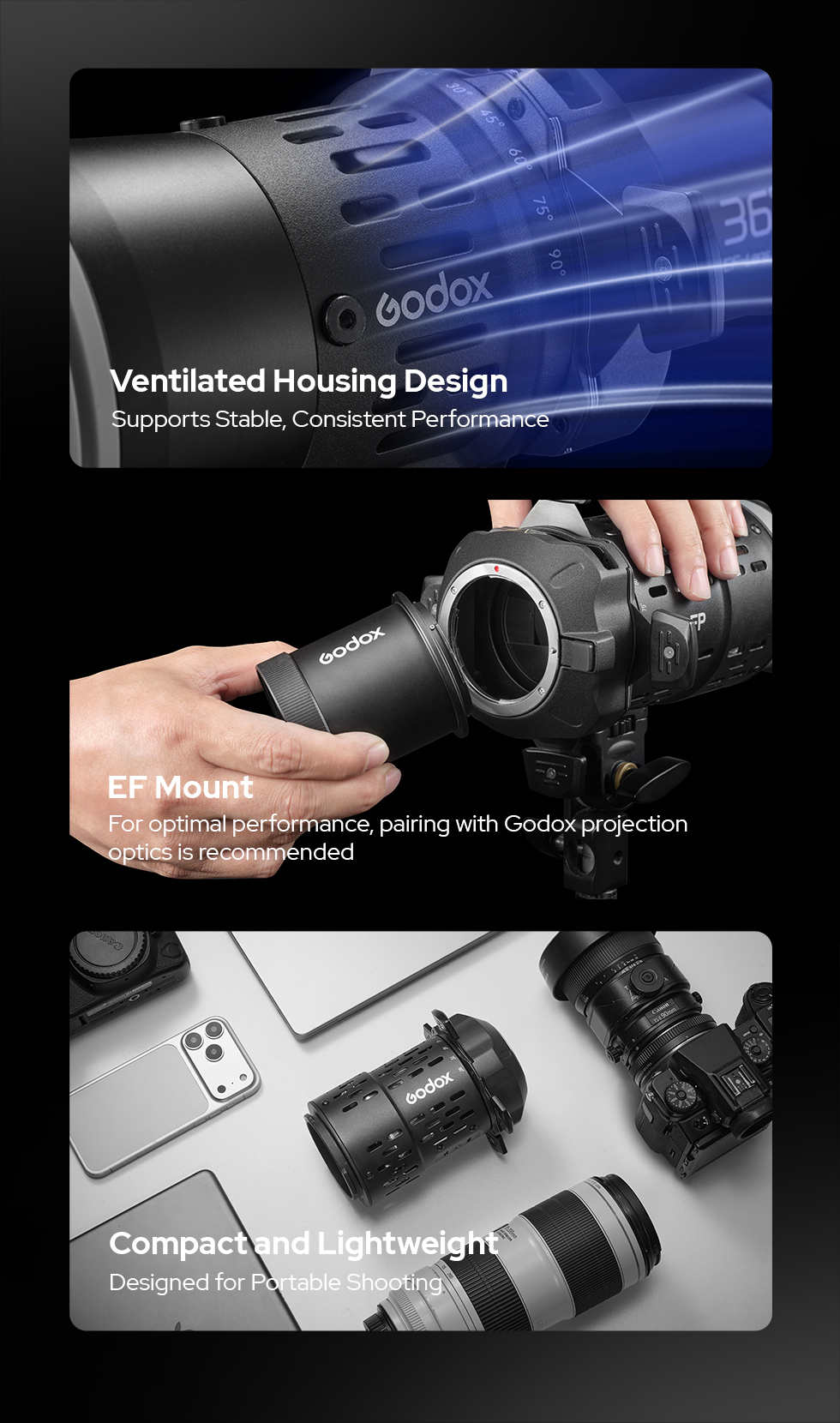

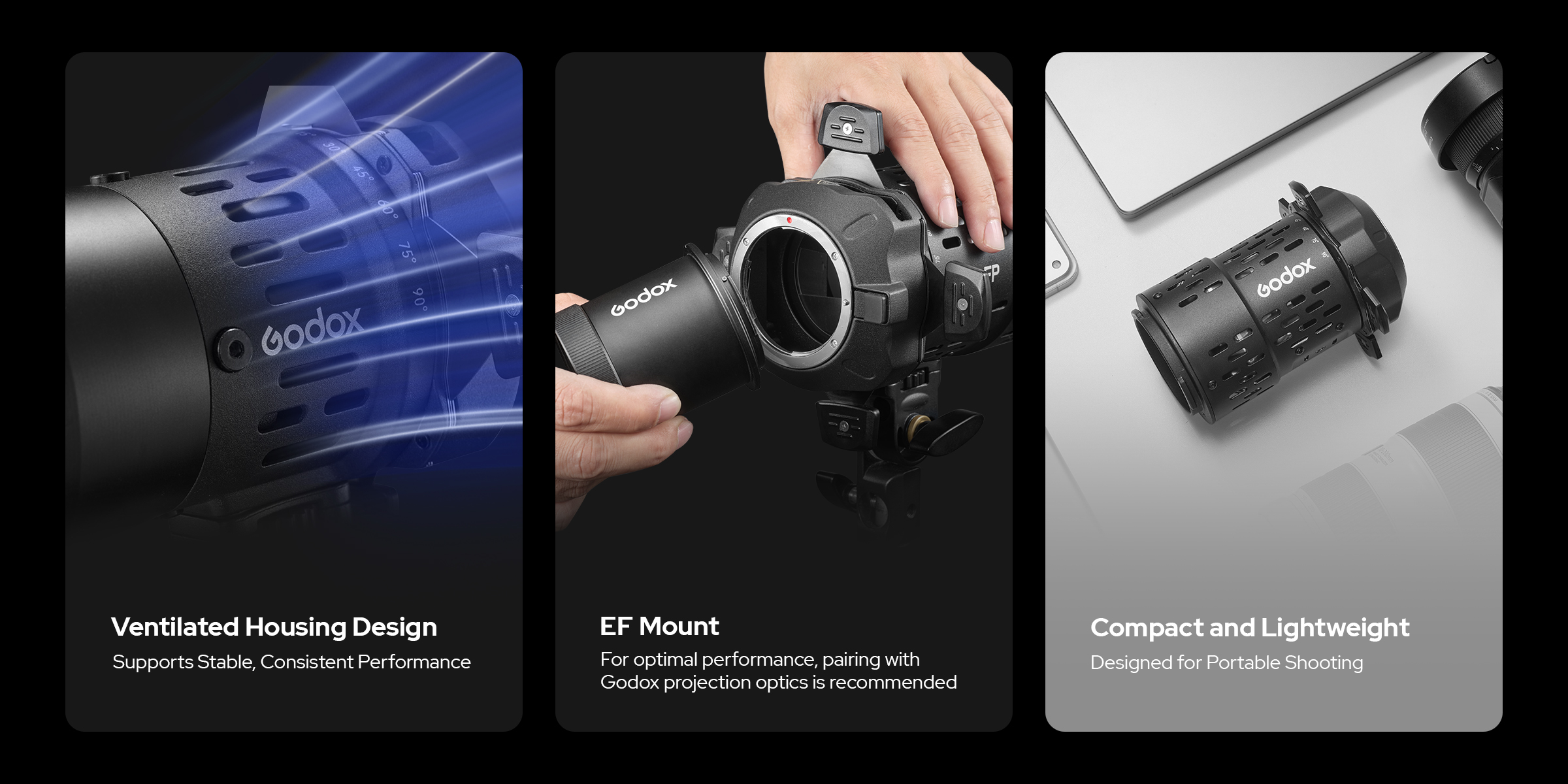

Practical, Reliable Design
Tech Specs
| Product Name | Dimension | Net Weight |
| Square-head Flash Projector(without lens) | 5.28"×5.28"×7.29” | ≈685g |
| Round-head Flash Projector(without lens) | 5.28"×5.28"×6.69" | ≈683g |
| Godox Head Mount Projector(without lens) | 5.28"×5.28"×6.5” | ≈712g |
| Projection Lens 19°(retracted) | 4.21"×2.56"×2.56" | ≈450g |
| Projection Lens 36°(retracted) | 2.52"×2.56"×2.56" | ≈280g |
| Projection Lens 50°(retracted) | 3.66"×2.56"×2.56" | ≈404g |

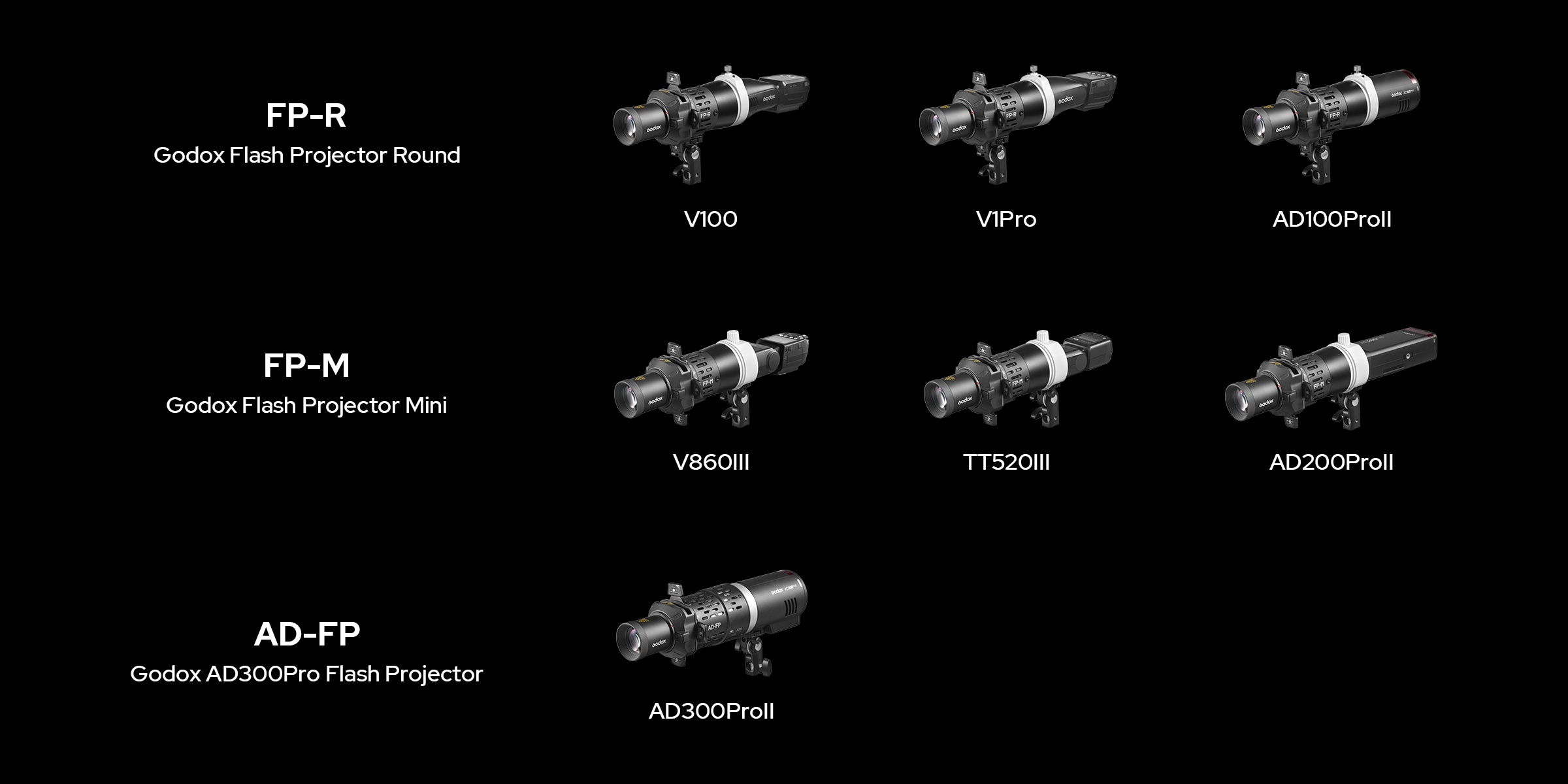

Compatible Flash Models

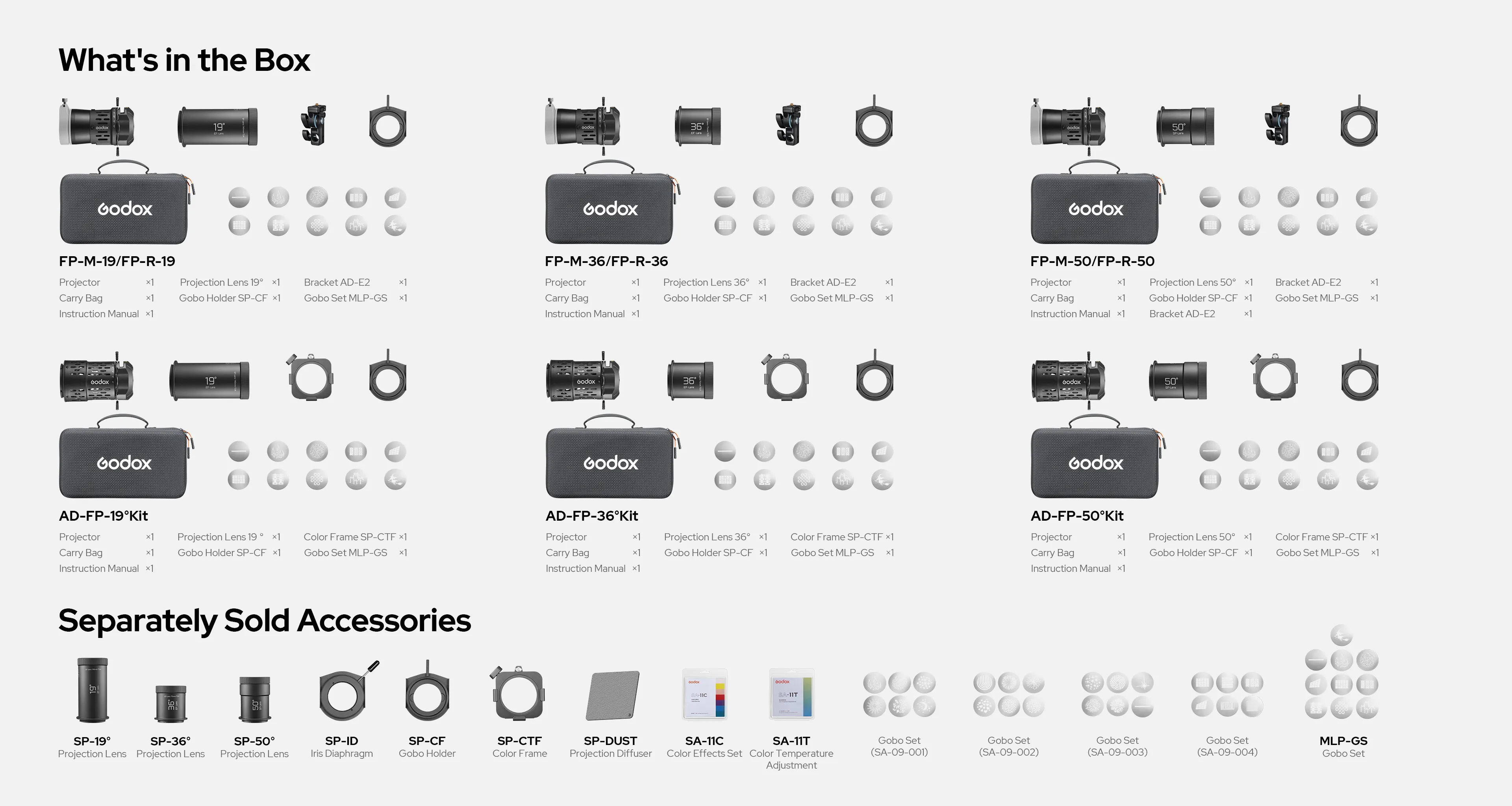

| Product Name | Projection Kits | Compatible Flash Models |
| Round-head Flash Projector FP-R | FP-R-19 FP-R-36 FP-R-50 | AD100Pro,AD100Proll,AD200Pro (round flash head),AD200Proll (round flash head), V1,H200R,V100,V1Pro |
| Square-head Flash Projector FP-M | FP-R-19 FP-R-36 FP-R-50 | EC200,H200,H200Il,V860III,V860II,V850, V850Il,V850III,TT685,TT6851l,TT600,TT600S, TT520,TT520l,TT520II,TT560ll,V480, AD200Pro(square flash head),AD200Proll(square flash head) |
| Godox Mount Projector AD-FP | AD-FP-19°Kit AD-FP-36°Kit AD-FP-50°Kit | AD300Pro,AD300Proll |
