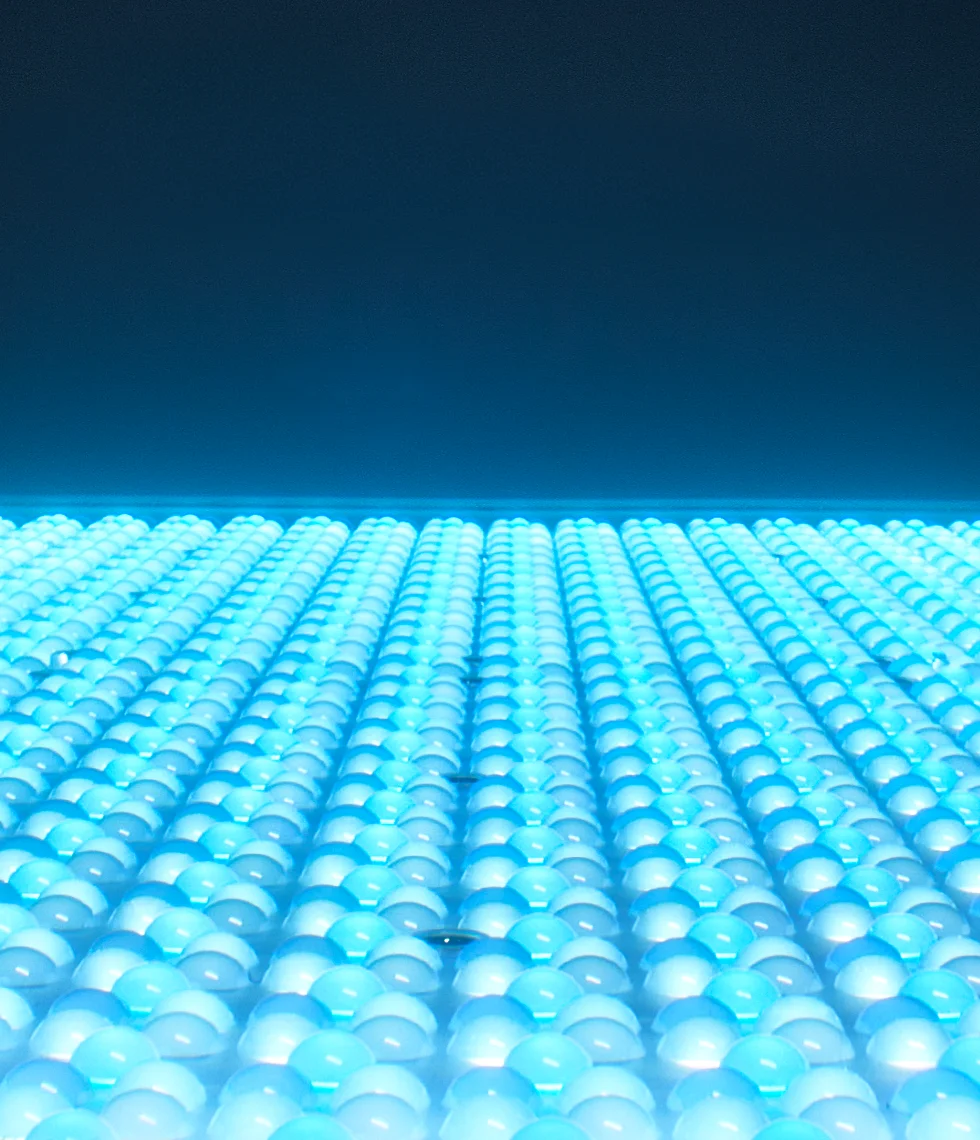

Uncompromising Brightness

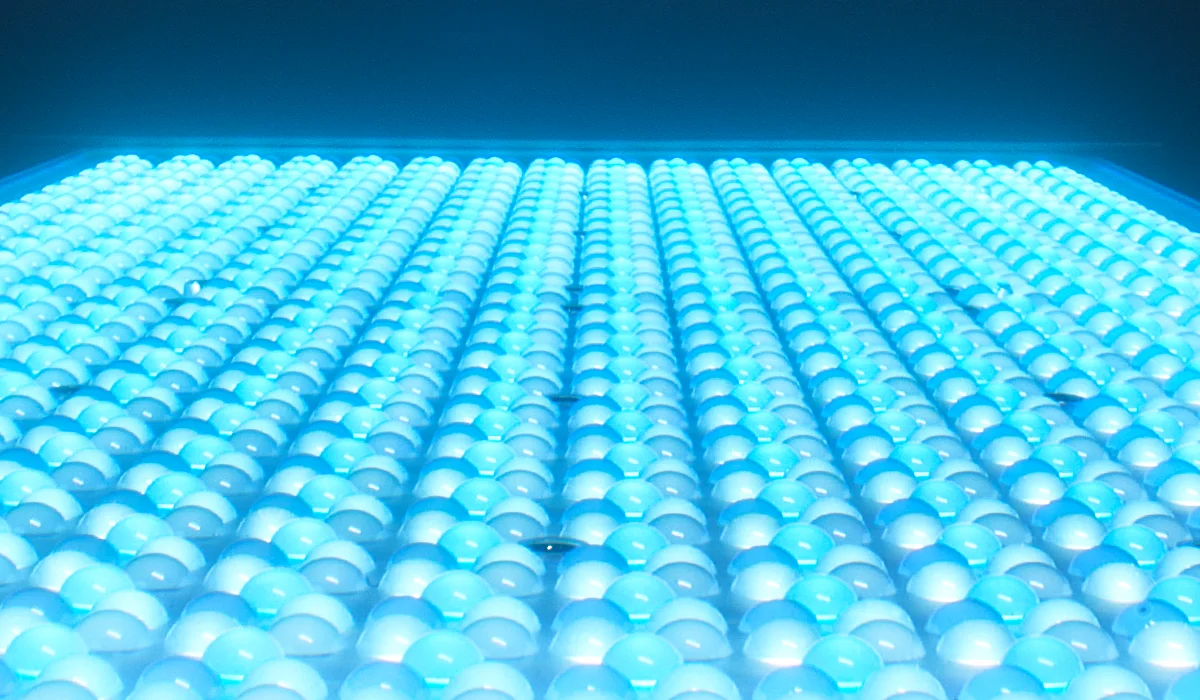

With an efficient optical design that enhances overall output, the UP150R reaches 20,400 lux @1m (5600K), delivering higher brightness than comparable panel lights while maintaining naturally soft, even illumination.

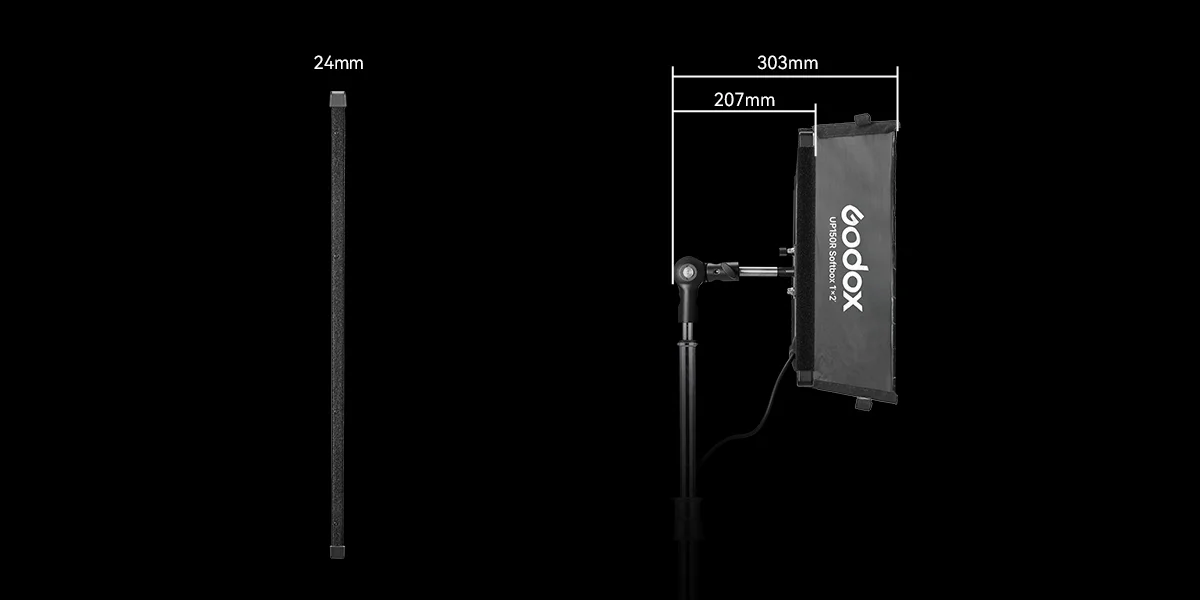

Ultra-Thin, Ultra-Flexible

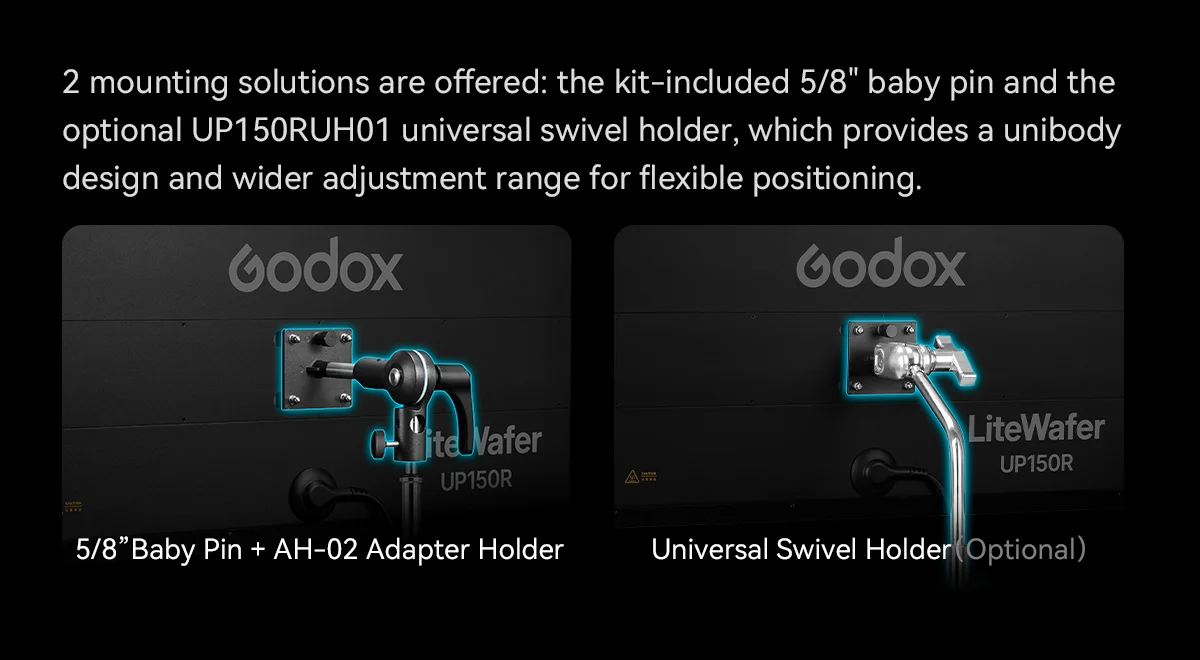

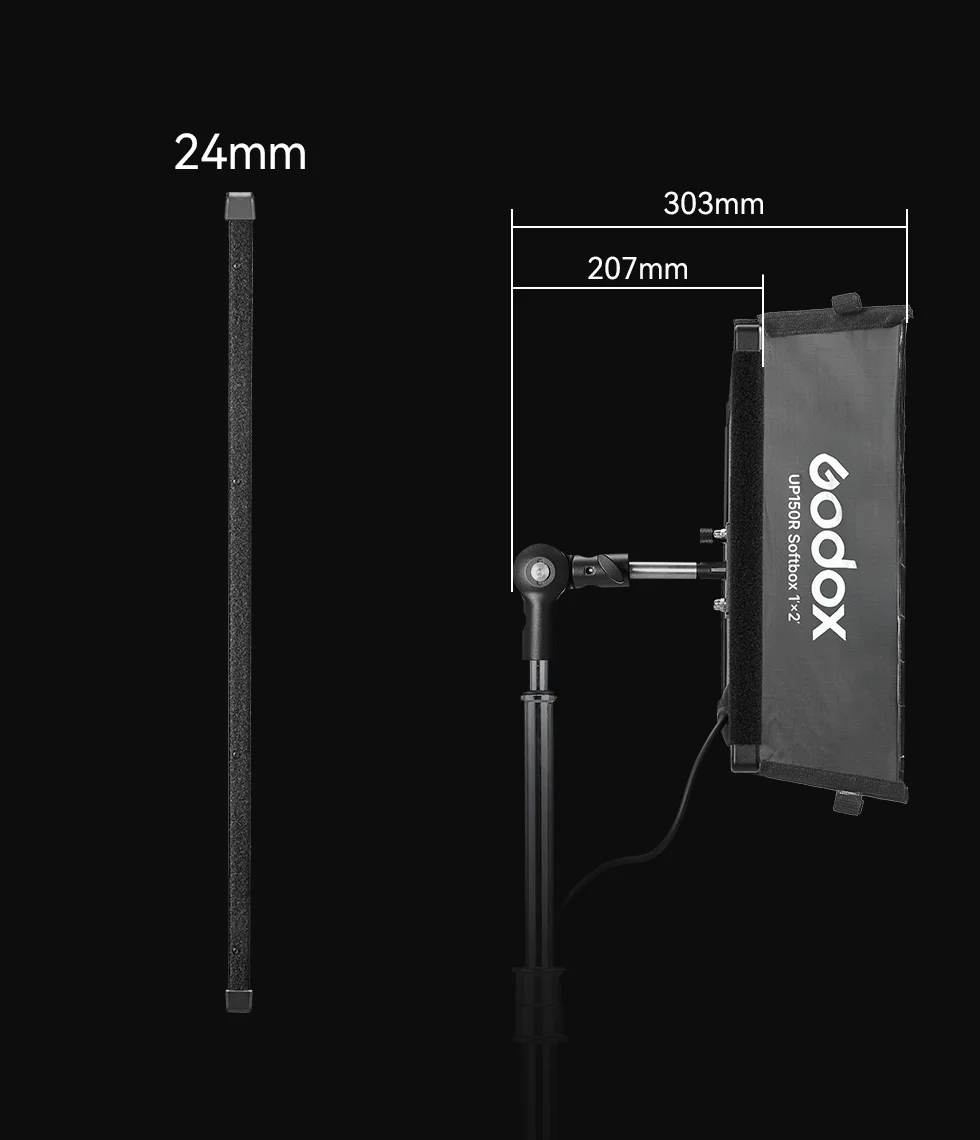

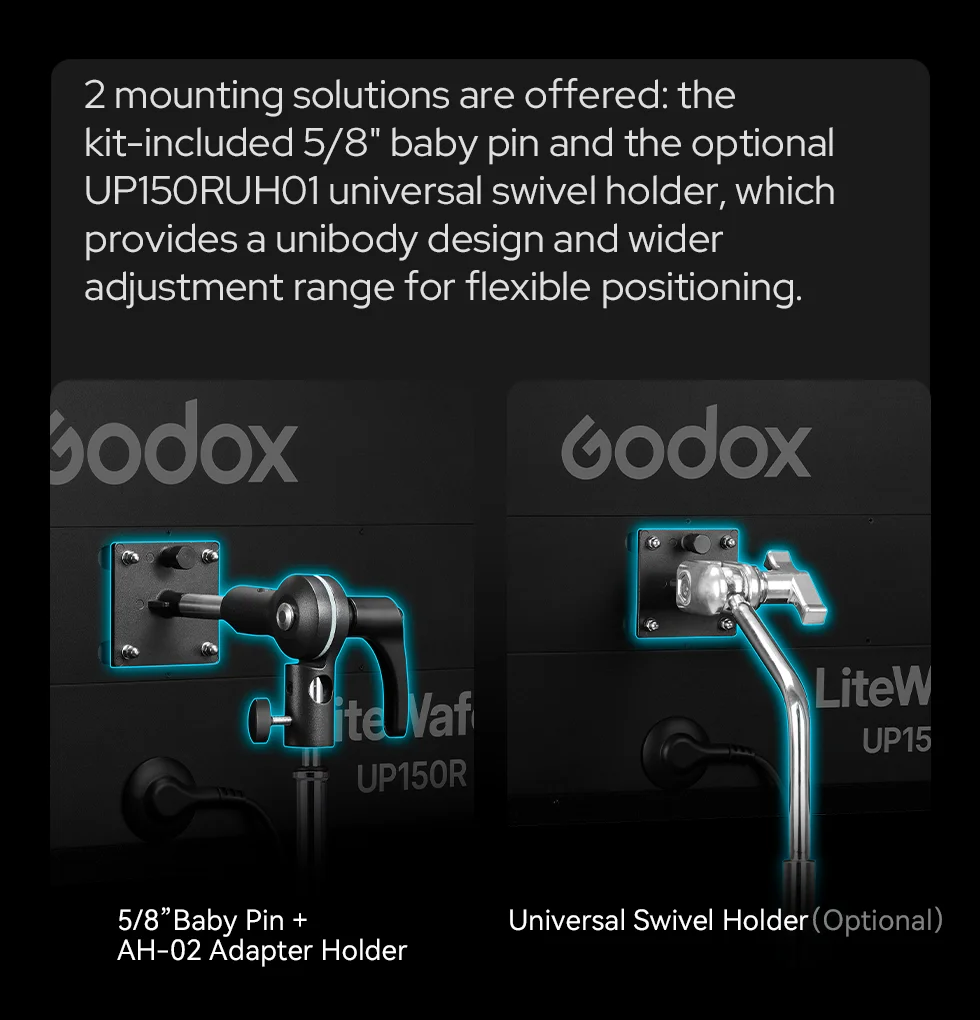

The UP150R features a slim-profile design that remains thin from the fixture itself to the full setup. Combined with the Quick-Release Mounting System, it offers greater flexibility and convenience for vehicle transport and lighting in tight spaces.
Rapid Setup & Teardown
The dedicated holder and quick release softbox ensure effortless setup, teardown and packing. This helps creators are as efficient as psossible on fast-paced shoots.

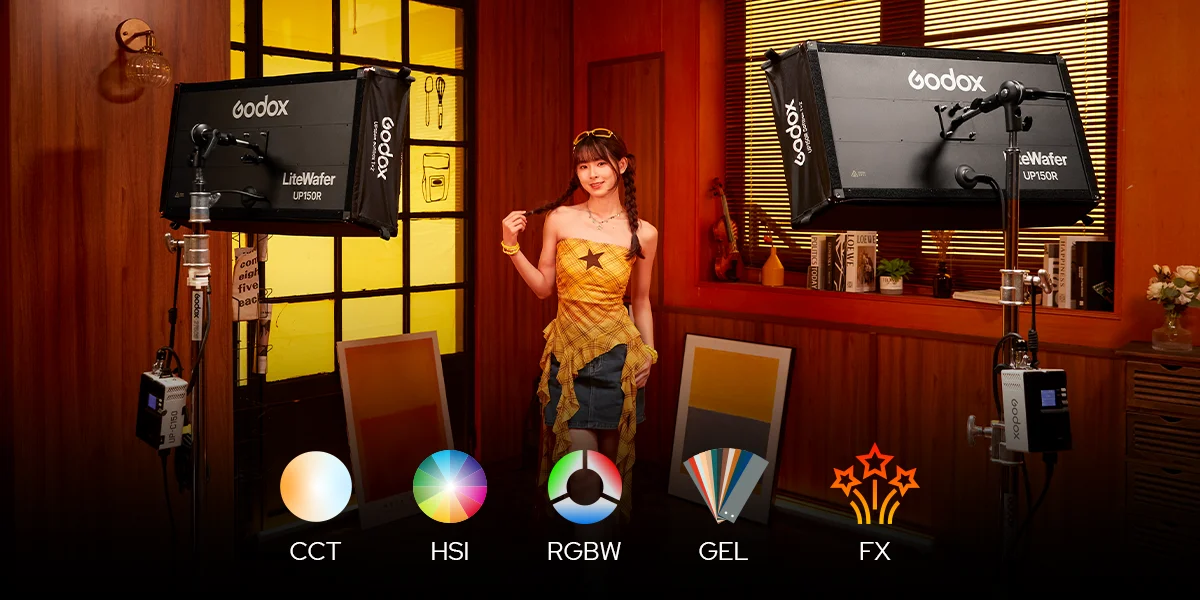

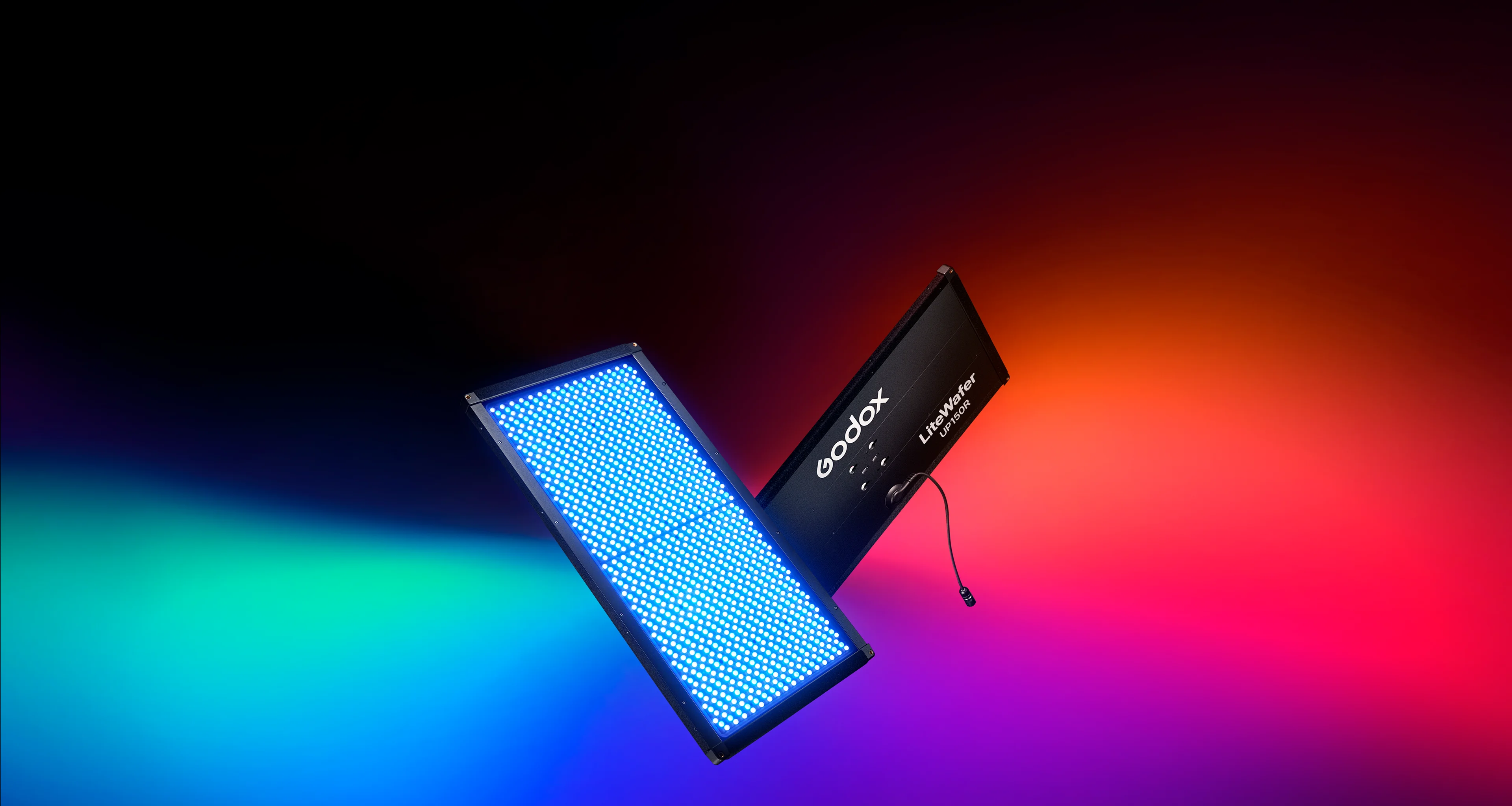

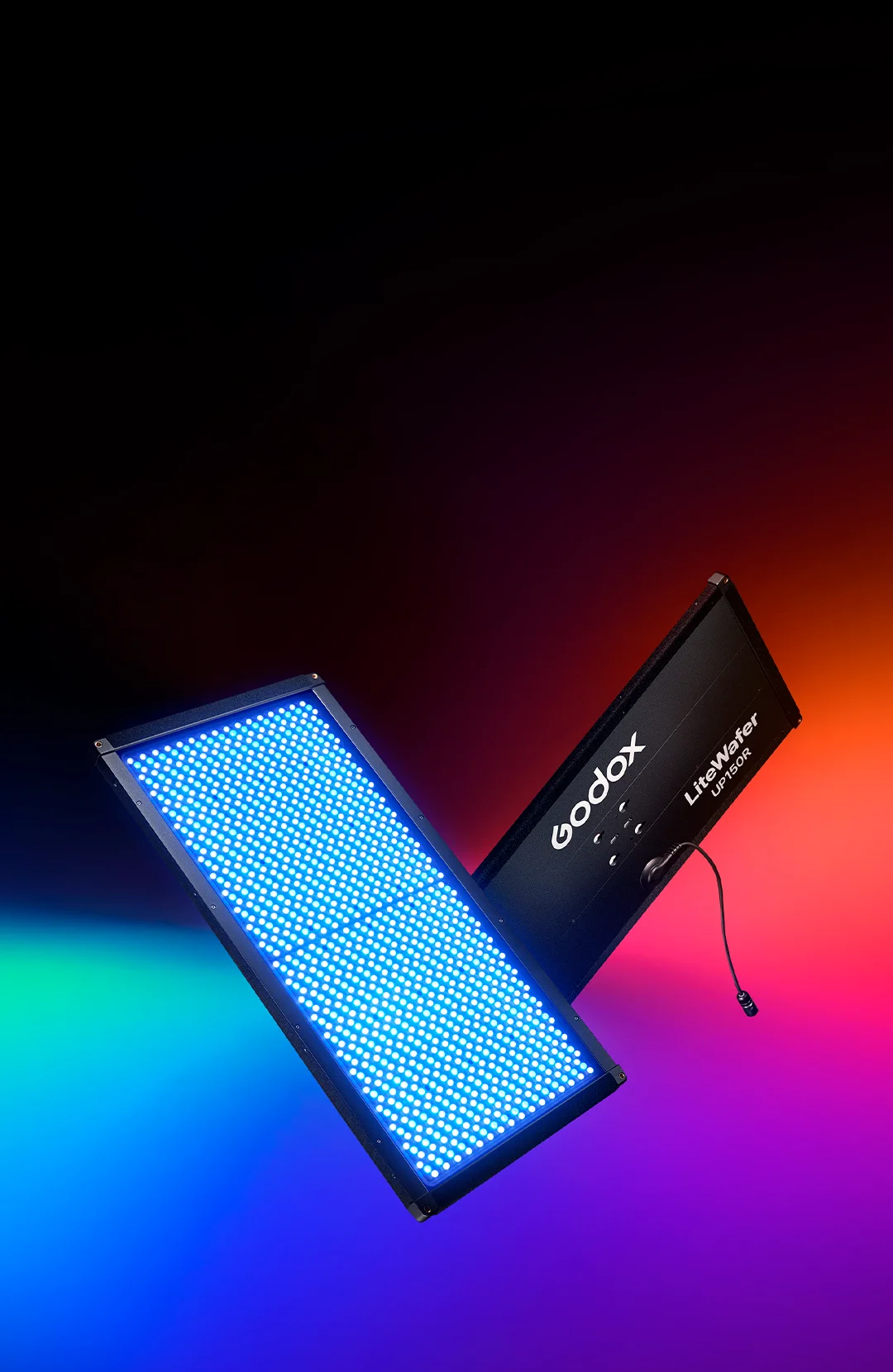

Full-Color Control

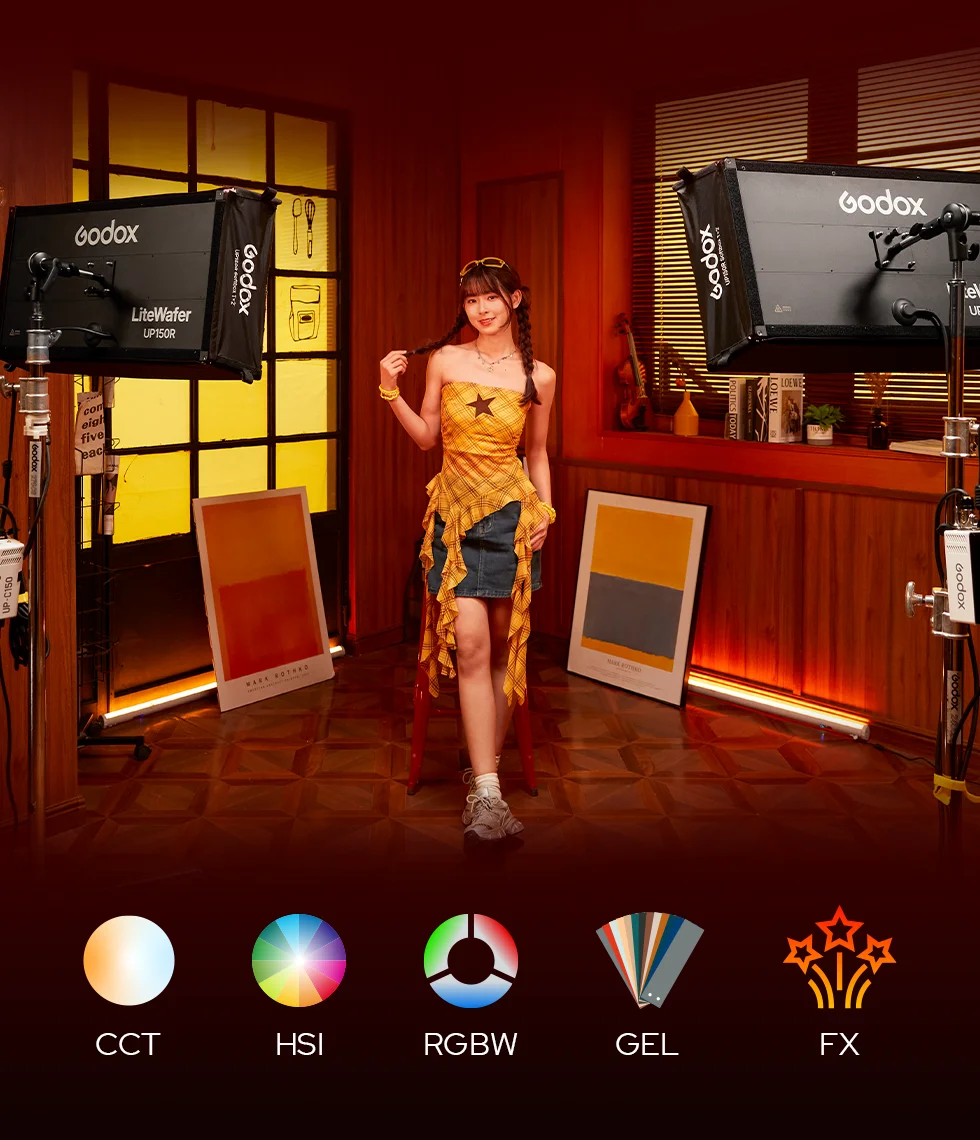

With HSI, RGBW, and GEL modes, a 1800K–10,000K CCT range, and 14 FX effects, The Godox LiteWafer UP150R easily matches ambient light or creates expressive atmospheres.
True-to-Life Color Rendering
With CRI ≈ 97 and TLCI ≈ 98, the LiteWafer UP150R delivers accurate, true-to-life color reproduction with rich detail and texture.

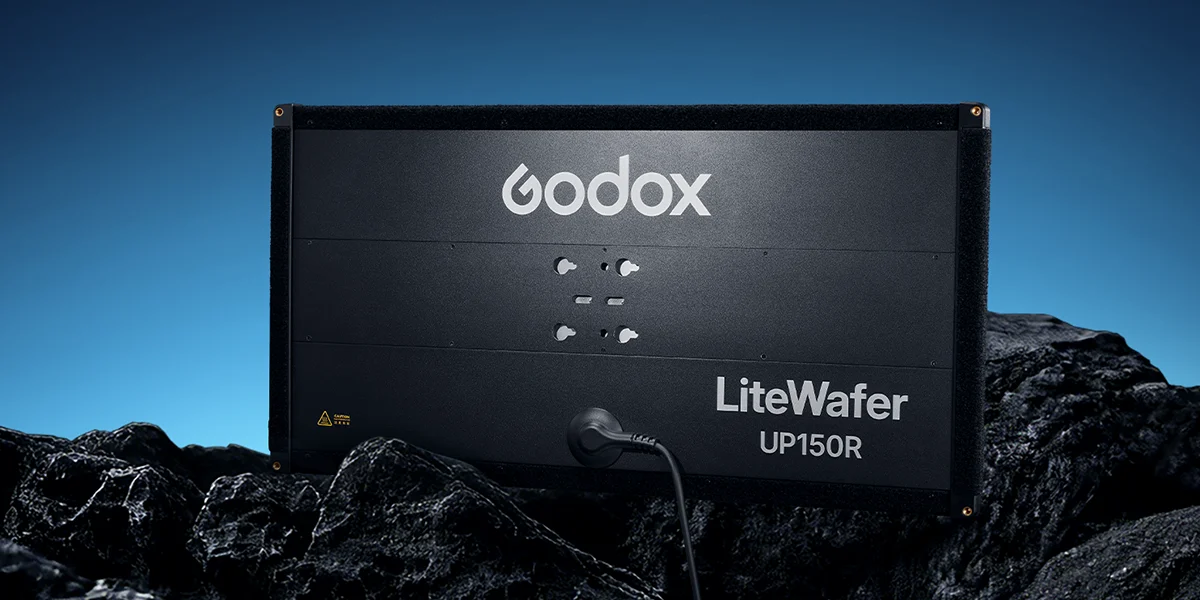

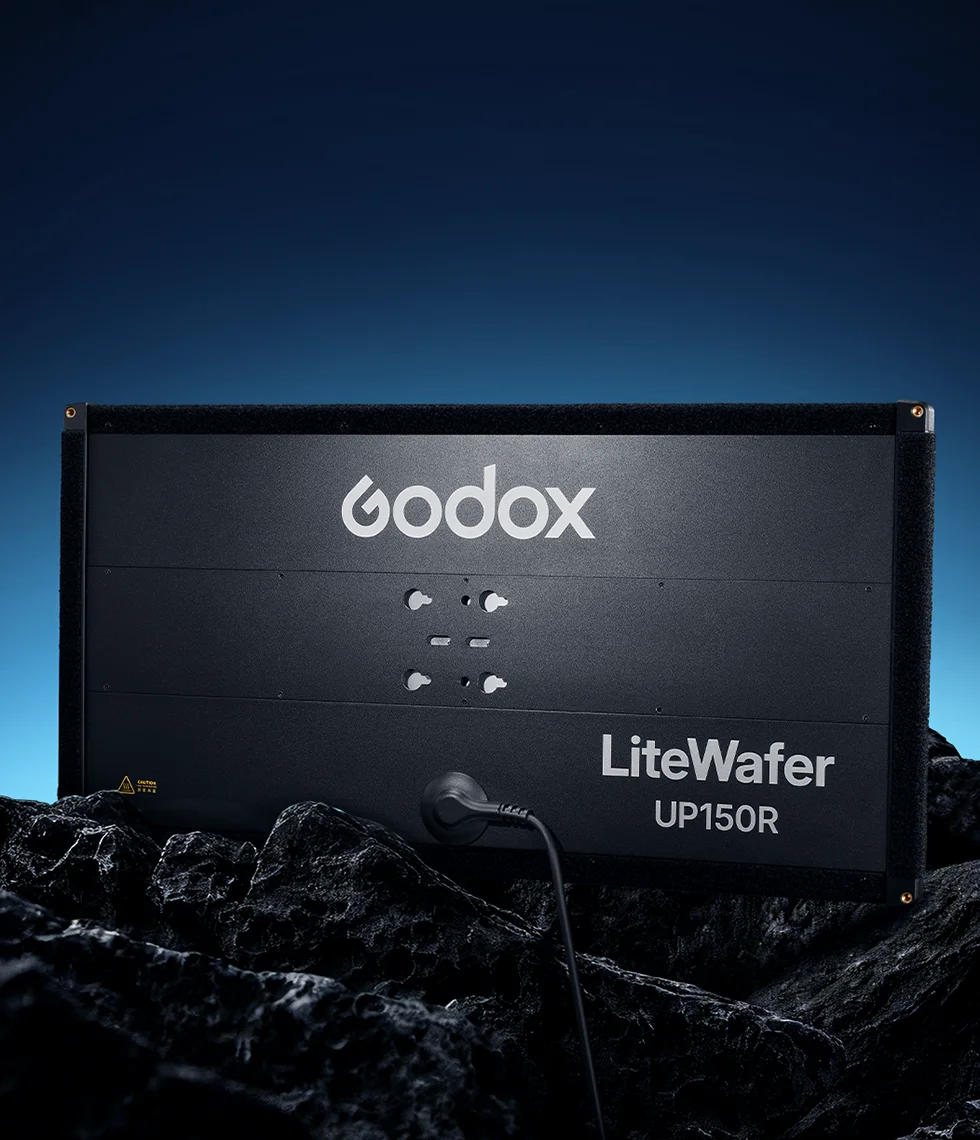

Efficient Cooling
Built with a reinforced full-metal housing that enhances durability and doubles as an efficient heat sink, the UP150R maintains consistent output even during extended shoots.

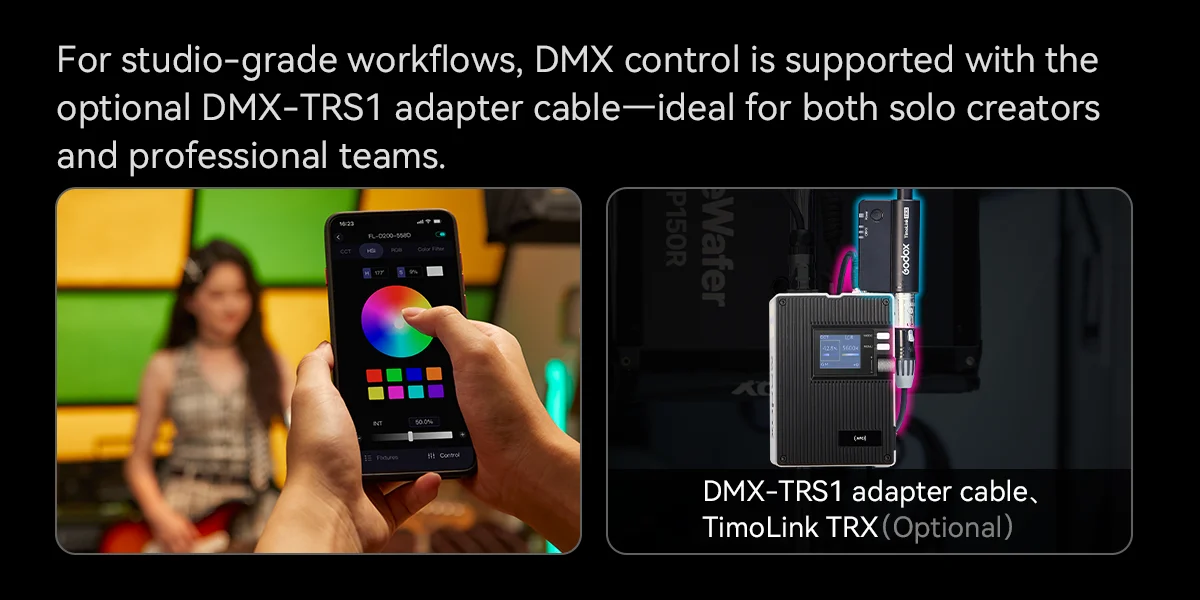

Smart & Seamless Control

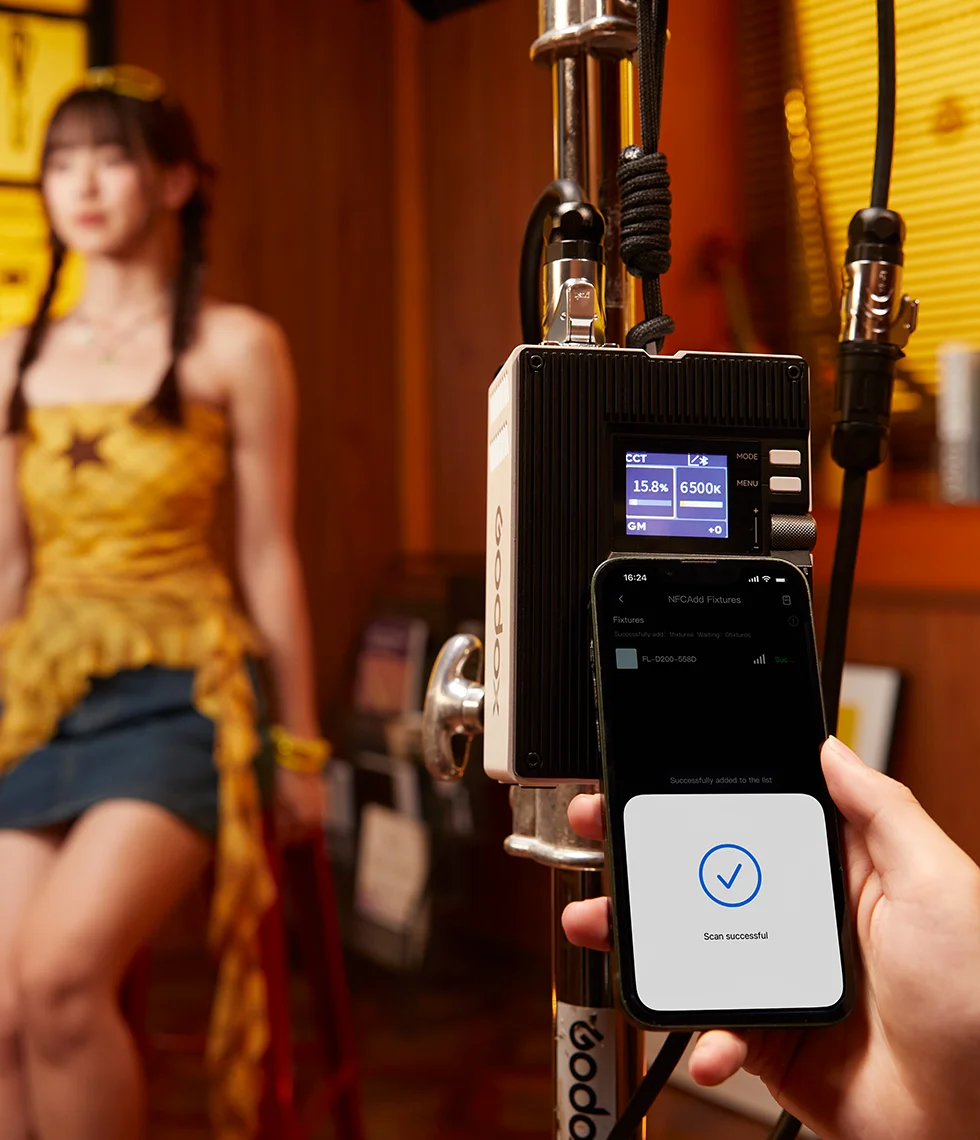

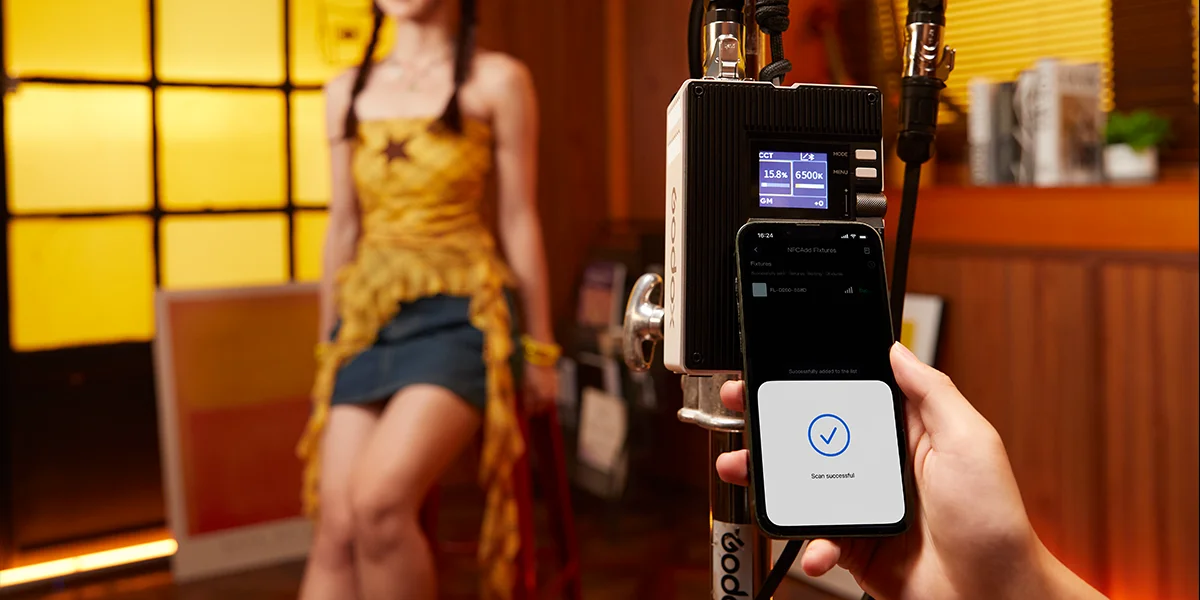

Tap to pair with built-in NFC for instant Godox Light App control.

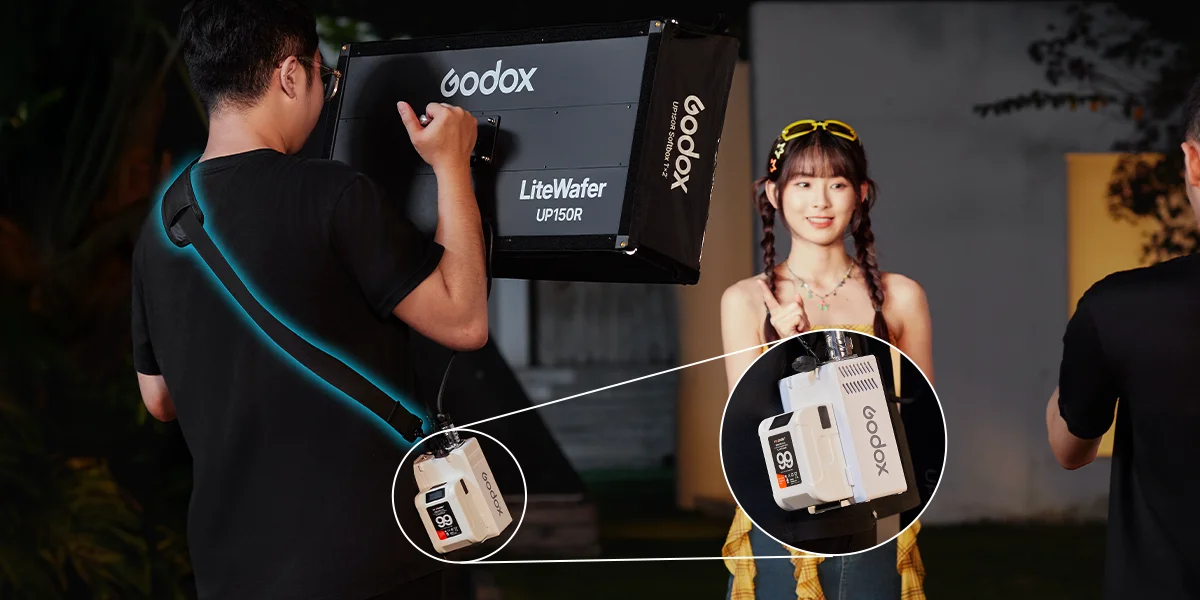

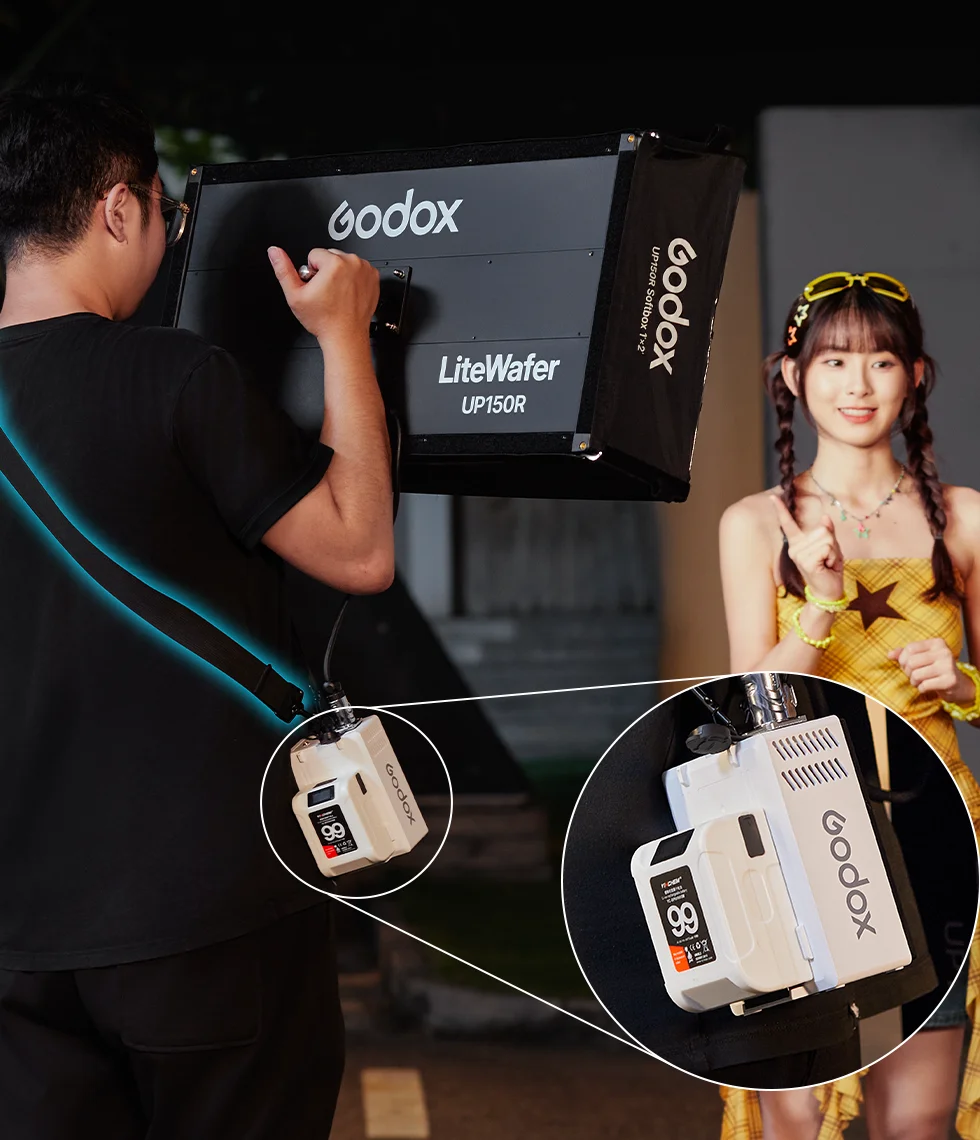

No Extras. Full Mobility
Designed for true mobility, the UP150R connects directly to V-mount batteries through its plate—eliminating the need for any external battery solutions. Paired with the lightweight control box and shoulder strap, it’s built for effortless shooting on the move.

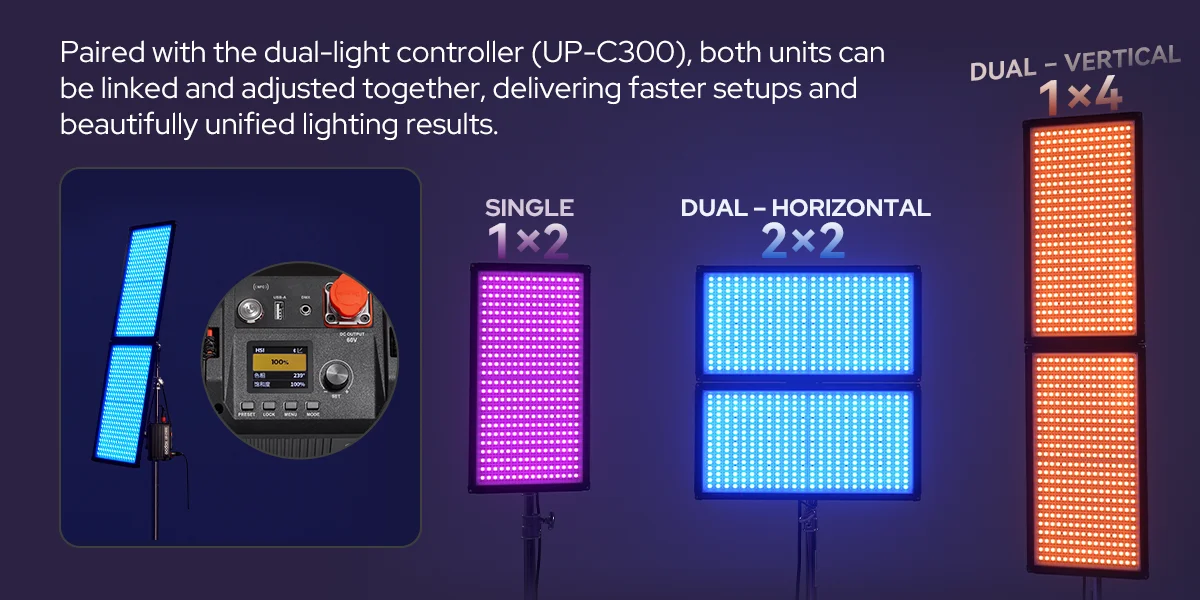

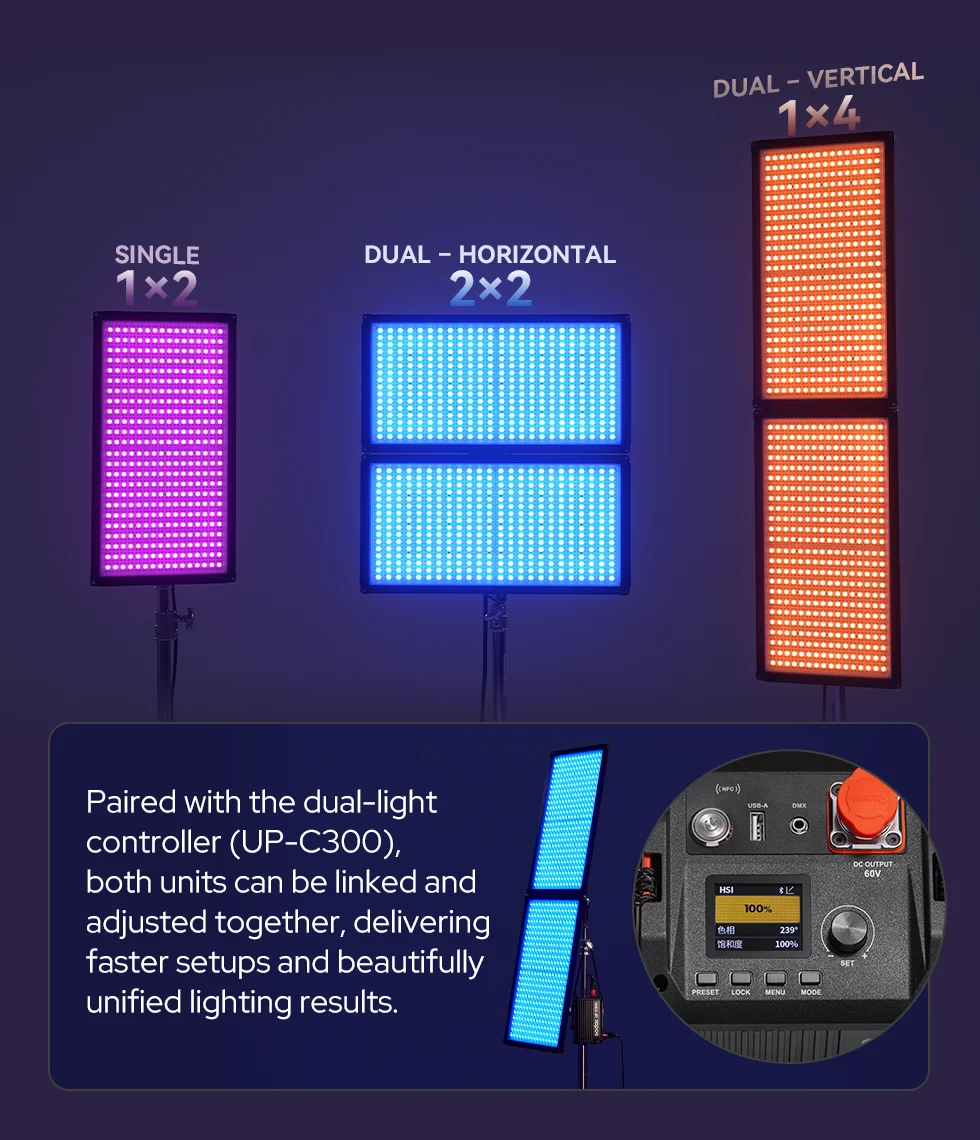

Seamless Dual-Light Expansion
Use the straight connector to seamlessly join two lights into one larger panel—expanding the surface horizontally or vertically for more immersive, studio-grade illumination.
Tech Specs
Controller
| Model | UP-C150 |
| AC INPUT Port | 100V-240V ~ 50/60Hz ,180W |
| CCT Range | 1800K~ 10000K |
| GM Adjust | -100%~ 100% |
| Brightness Range | 0.0%~ 100.0% |
| Dimming Curves | linear, S-curve, exponential, logarithmic |

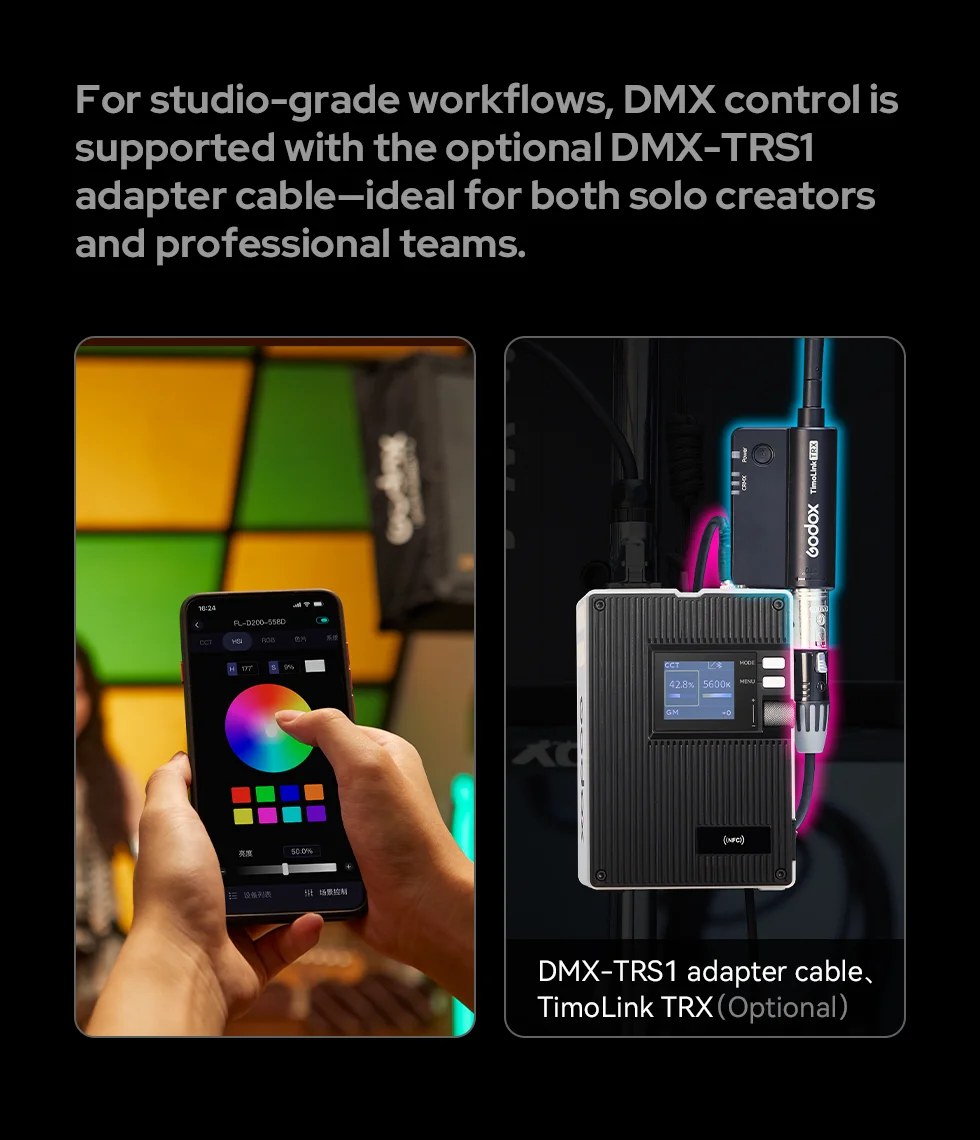

| Controlling Methods | Wired DMX/RDM, Bluetooth app, controller control |
| Bluetooth Controlling Distance | 30m |
| USB-A Port | Firmware Upgrade/5V⎓1A Power Supply |
| Working Environment Temperature | -20°C~ 45°C |
| Dimension | ≈ 4.09"x2.95"x6.3" |
| Net Weight | ≈ 0.85kg/1.87 lb |
Light Body
| Model | UP150R |
| CRI | ≈ 97 |
| TLCI | ≈ 98 |
| Working Environment Temperature | -20°C~ 45°C |
| Bare Light Dimension | 13.94"x0.95"×26.77" |
| Bare Light Net Weight | ≈3.2kg/7.05 lb |
