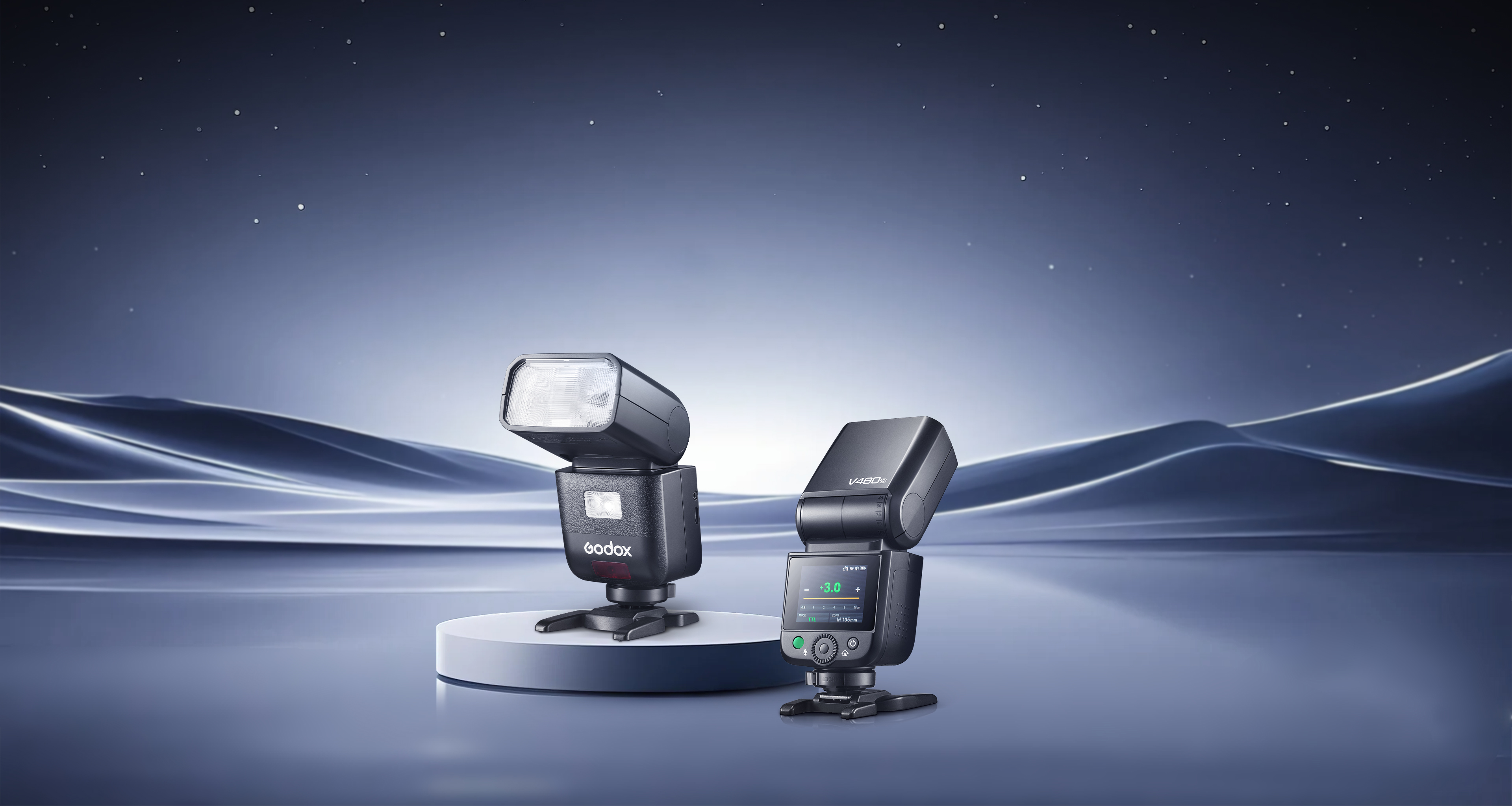

Compact Design, Complete Control

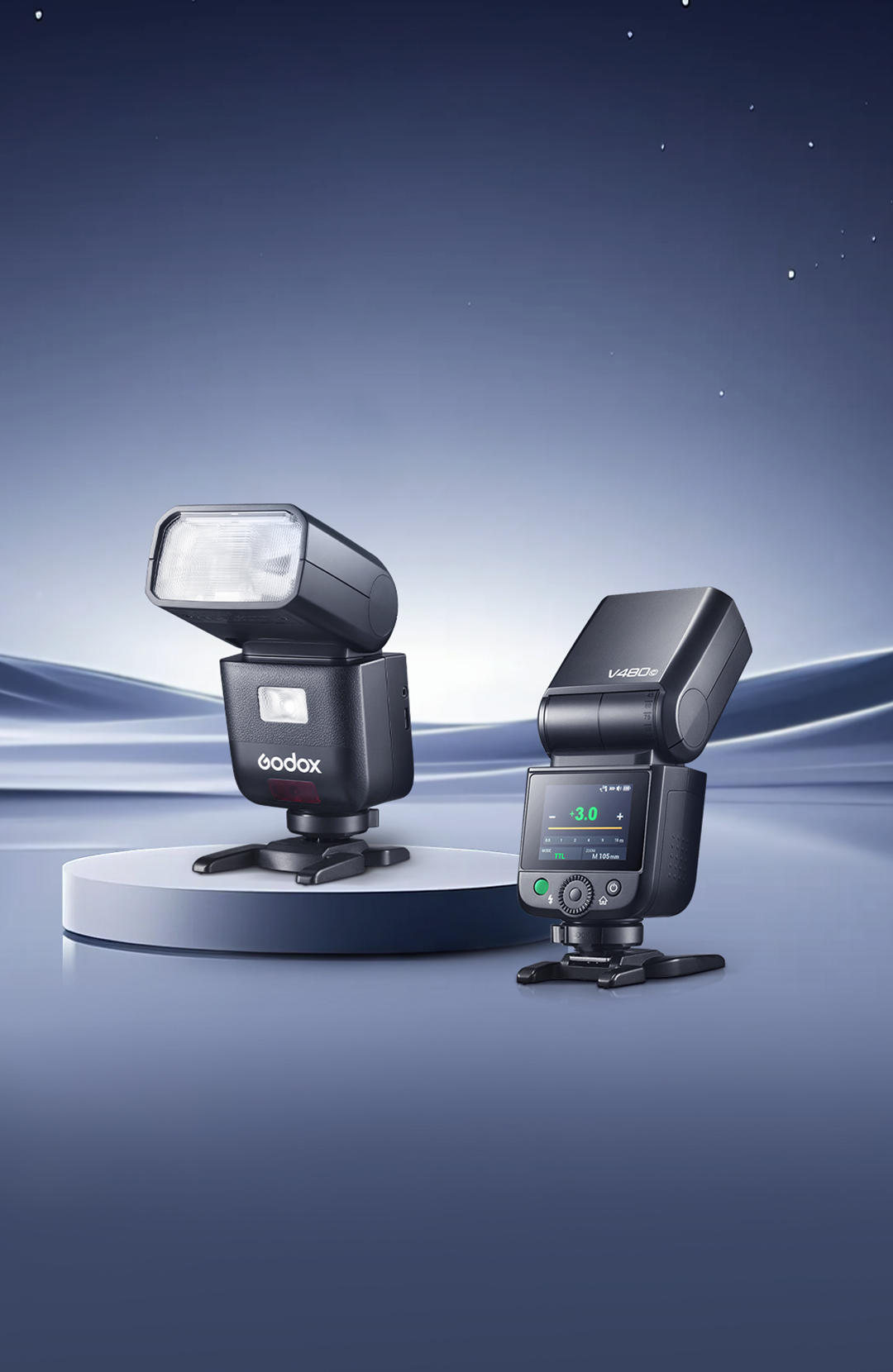

Meet the Godox V480: a sleek GN 50 on camera flash that brings studio quality light wherever you shoot. Powered by a high capacity Li-ion battery delivering up to 650 fullpower flashes with a rapid 1.7 s recycle, it offers both a responsive touchscreen and tactile buttons for intuitive control. With High speed sync up to 1/8 000 s, an integrated 2.4 GHz X wireless system, and a 10 level LED modeling lamp, the V480 is the compact lighting solution for any creative pursuit.

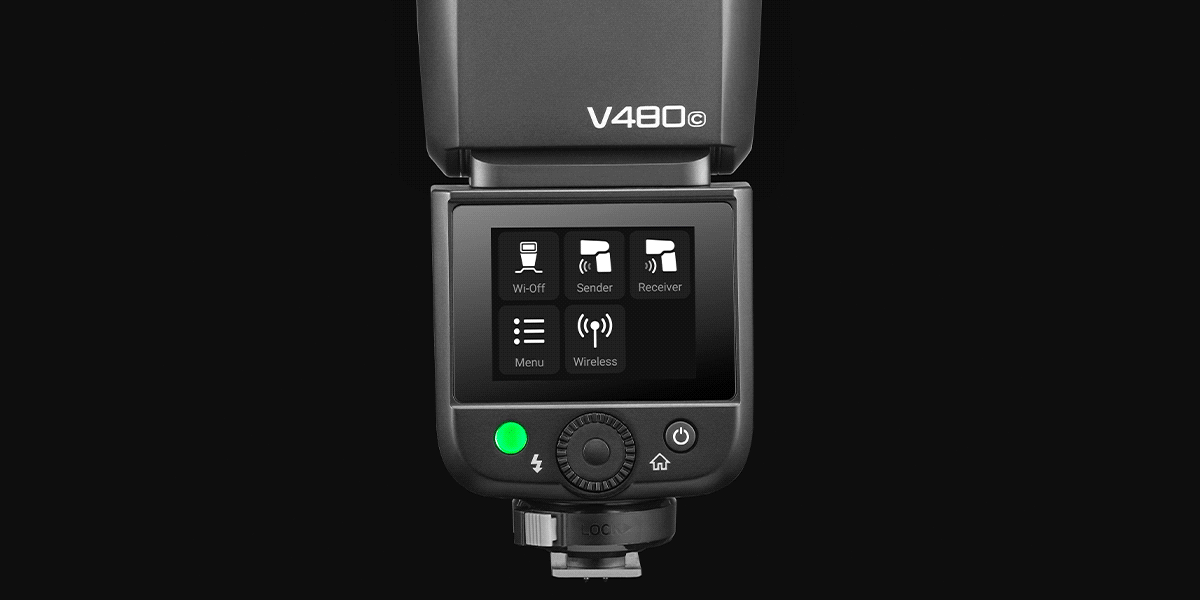

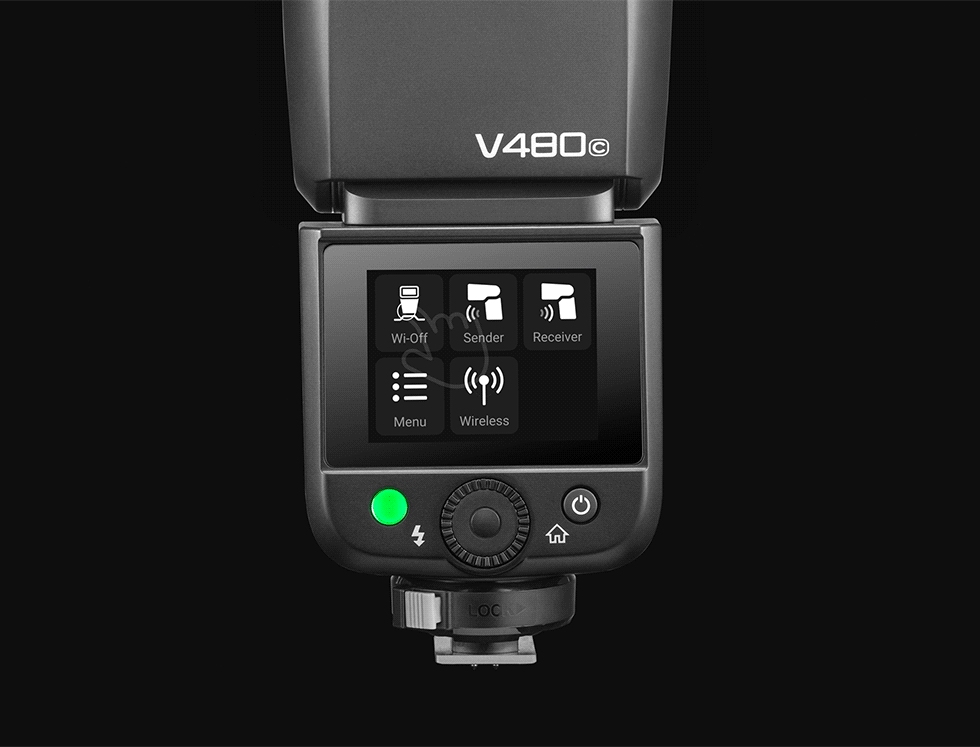

Intuitive Touchscreen & Buttons
The V480’s 2.0″ color touchscreen and tactile buttons work seamlessly together to deliver fast, precise adjustments. Tap, swipe, or press buttons to navigate menus effortlessly, allowing you to change settings quickly without interrupting your workflow.
Smart Distance Readout
Say goodbye to exposure guesswork. The V480’s display shows real-time effective flash range, so you’ll know instantly if your subject is within optimal reach—ideal for tight spaces, bounce applications, or fast-paced events.
Sender & Receiver Functionality
The built-in Godox 2.4 GHz X wireless system lets the V480 act as both sender and receiver across 32 channels up to 100 m away. Control multiple flashes directly from the unit—no external triggers required.
Pro-Level Flash Modes
V480 gives you full creative control with TTL, Manual, Multi mode, and High-Speed Sync up to 1/8000 s. Fine-tune your lighting with Flash Exposure Compensation, and choose between Front/Rear-Curtain Sync for dynamic motion effects. A versatile tool built for professional results.

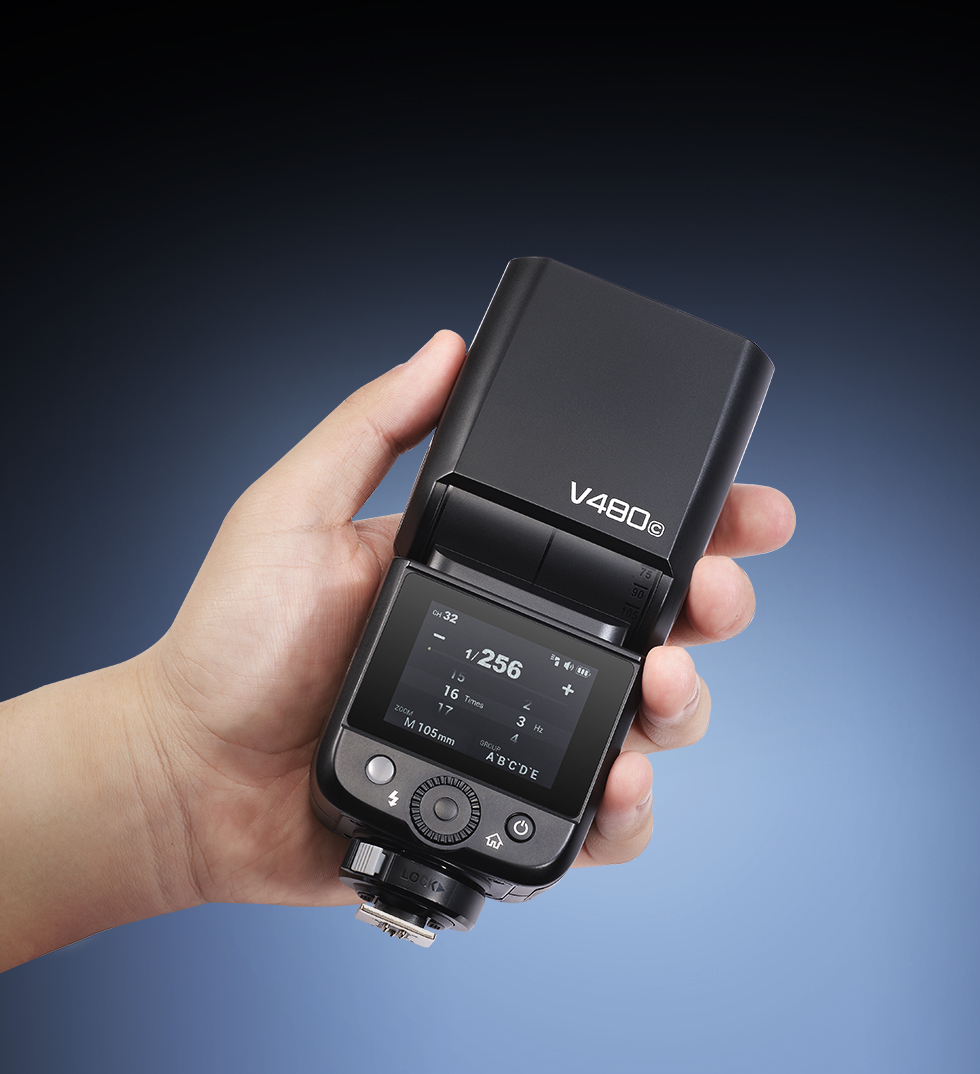

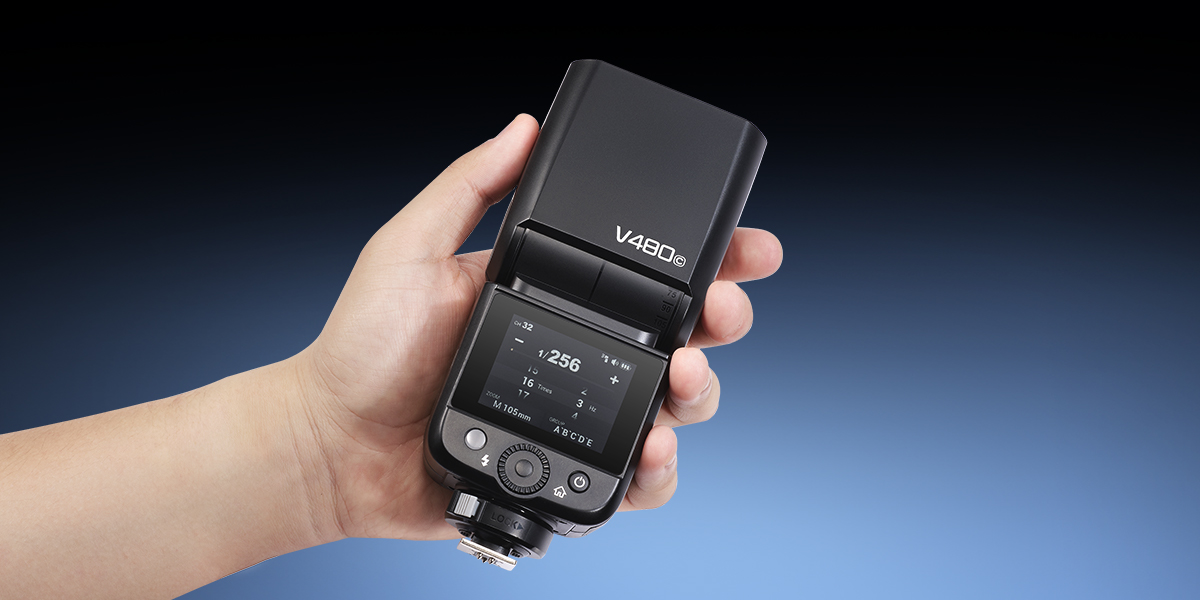

Lightweight Portability
Weighing just 282 g (361 g with battery), the V480 fits comfortably in your hand and slips into any camera bag. Stay lightweight on location while enjoying powerful flash performance.

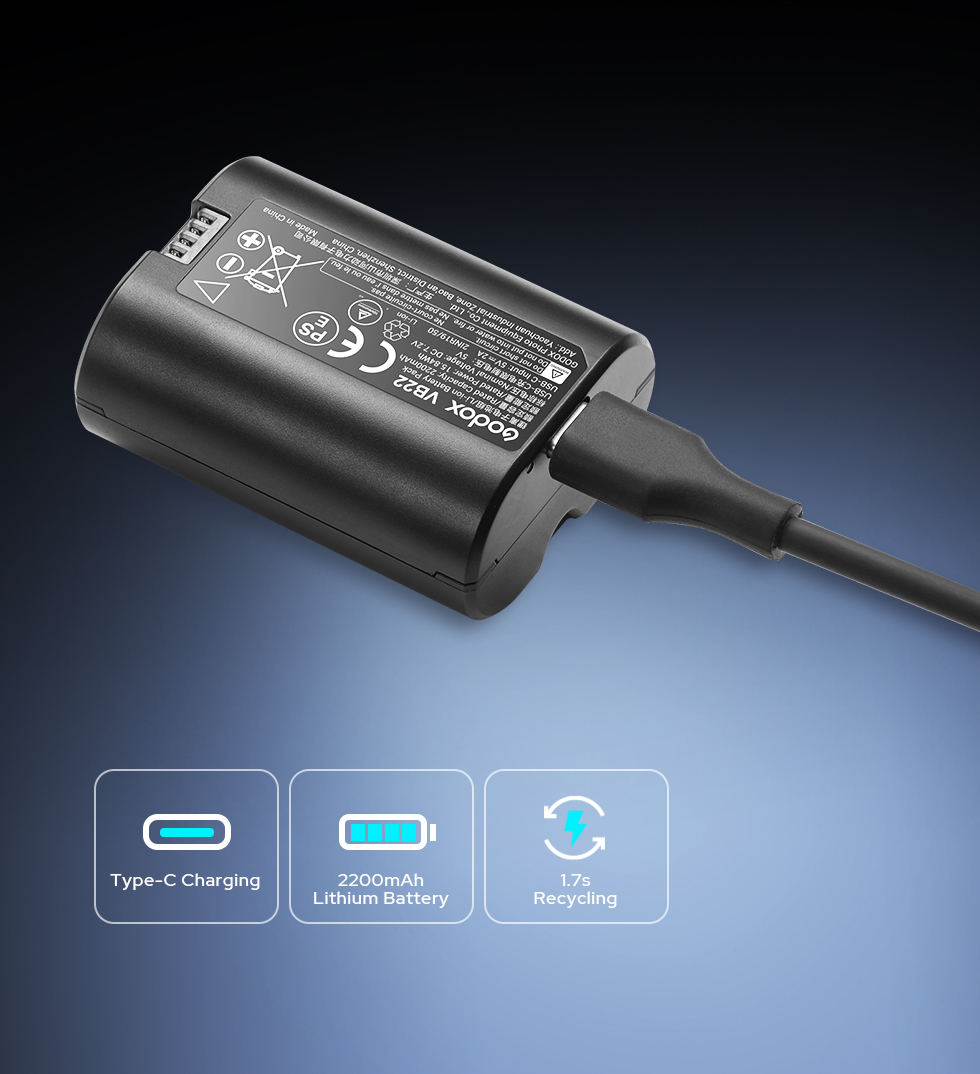

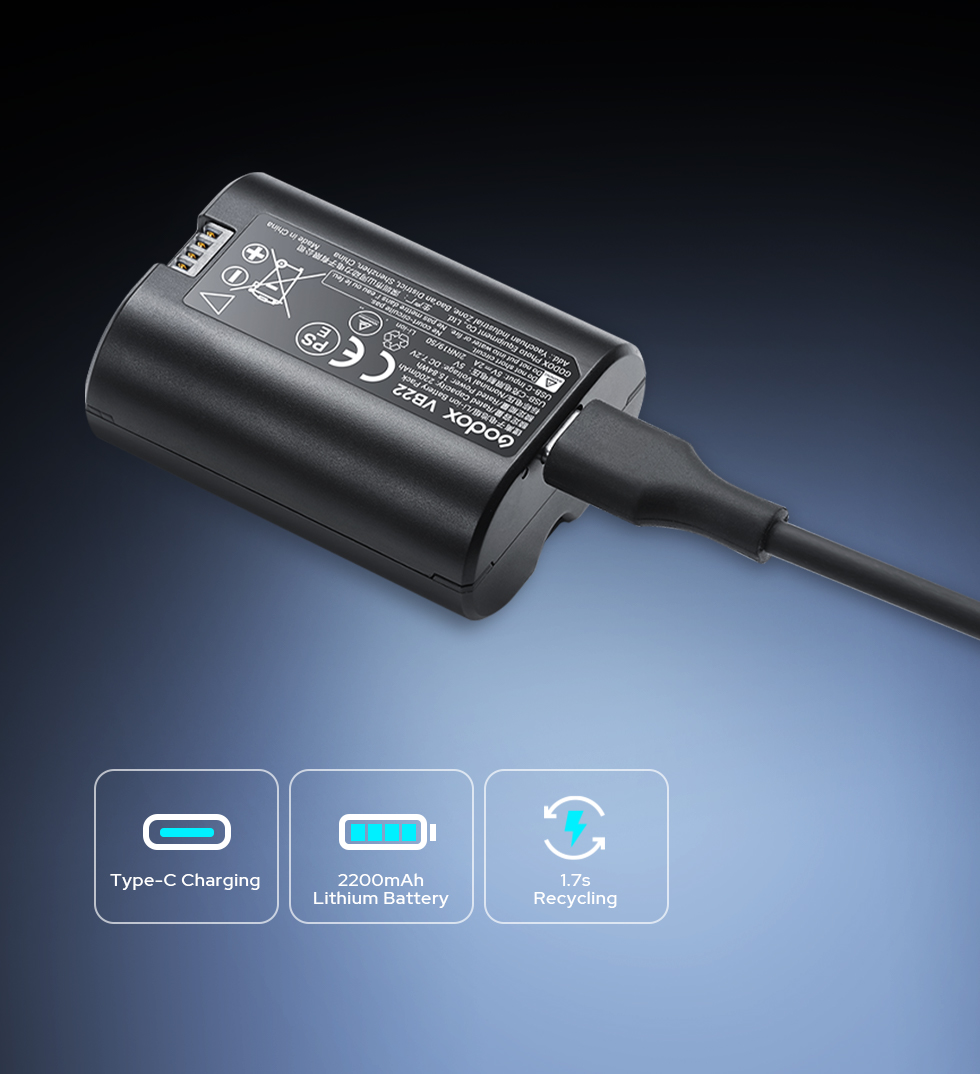

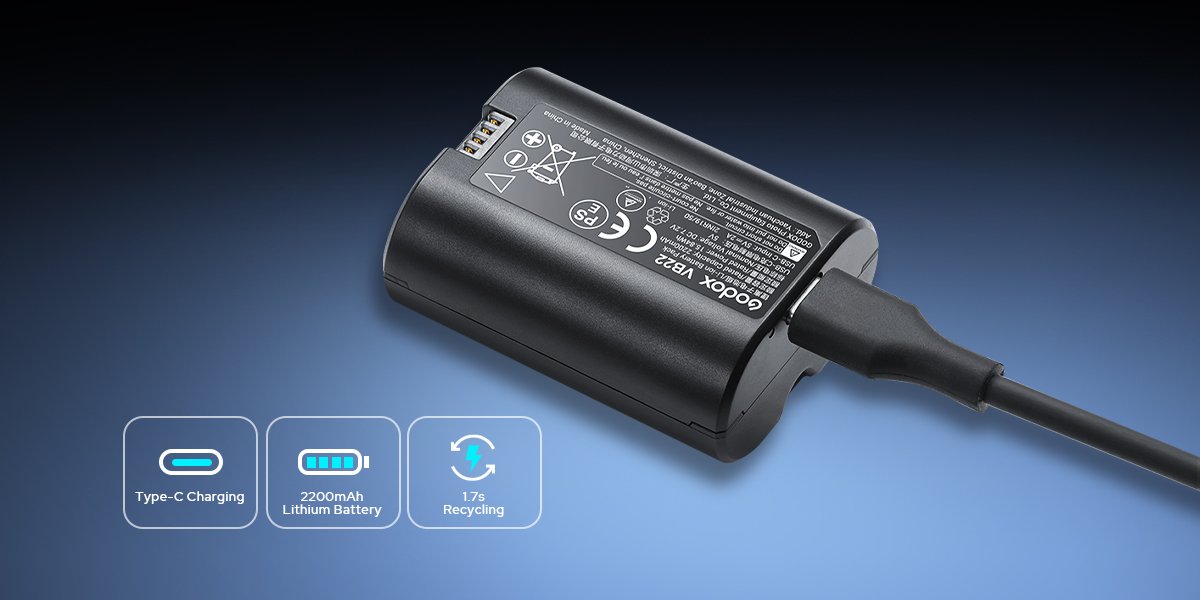

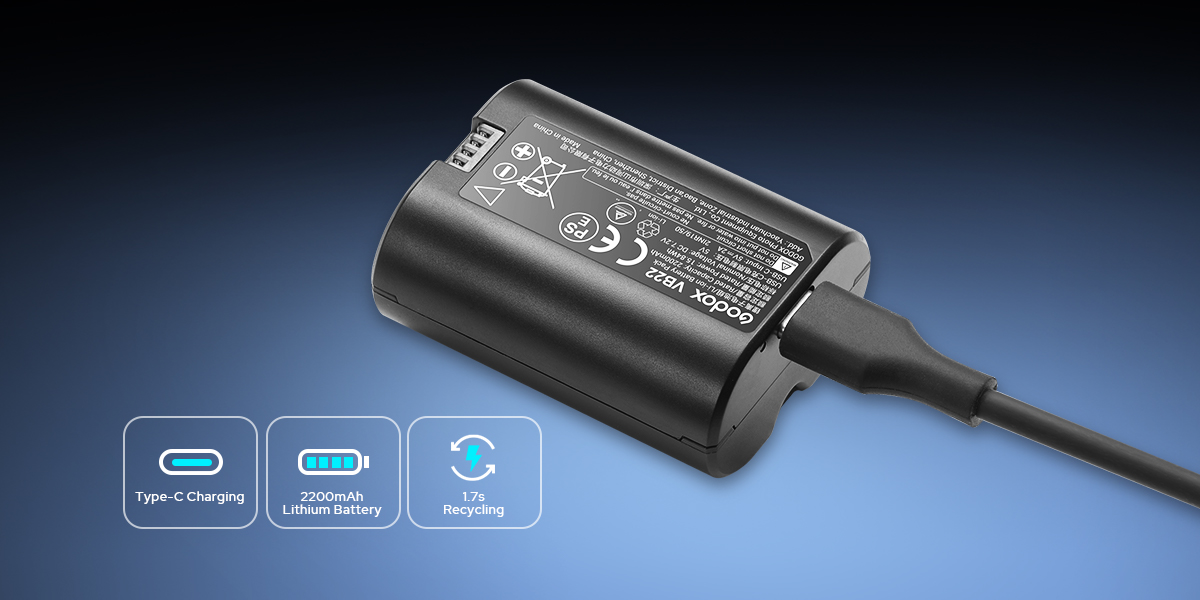

650 Full-Power Flashes
A 7.2 V/2200 mAh rechargeable battery delivers up to 650 full-power flashes and recycles in just 1.7 s. USB-C charging lets you top up between sessions so you can keep shooting all day.
10-Level Modeling Lamp
Preview exactly how your flash will shape shadows and highlights with a built-in LED lamp offering ten brightness levels. Ideal for pre-visualizing light direction and intensity, it lets you fine-tune your setup before firing the main flash.

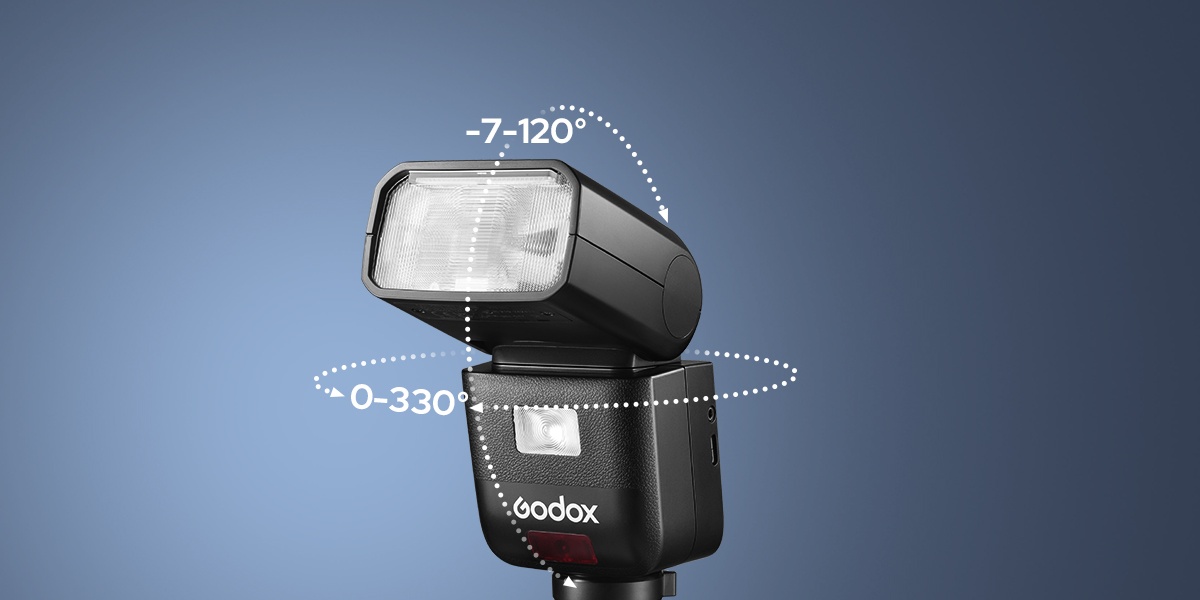

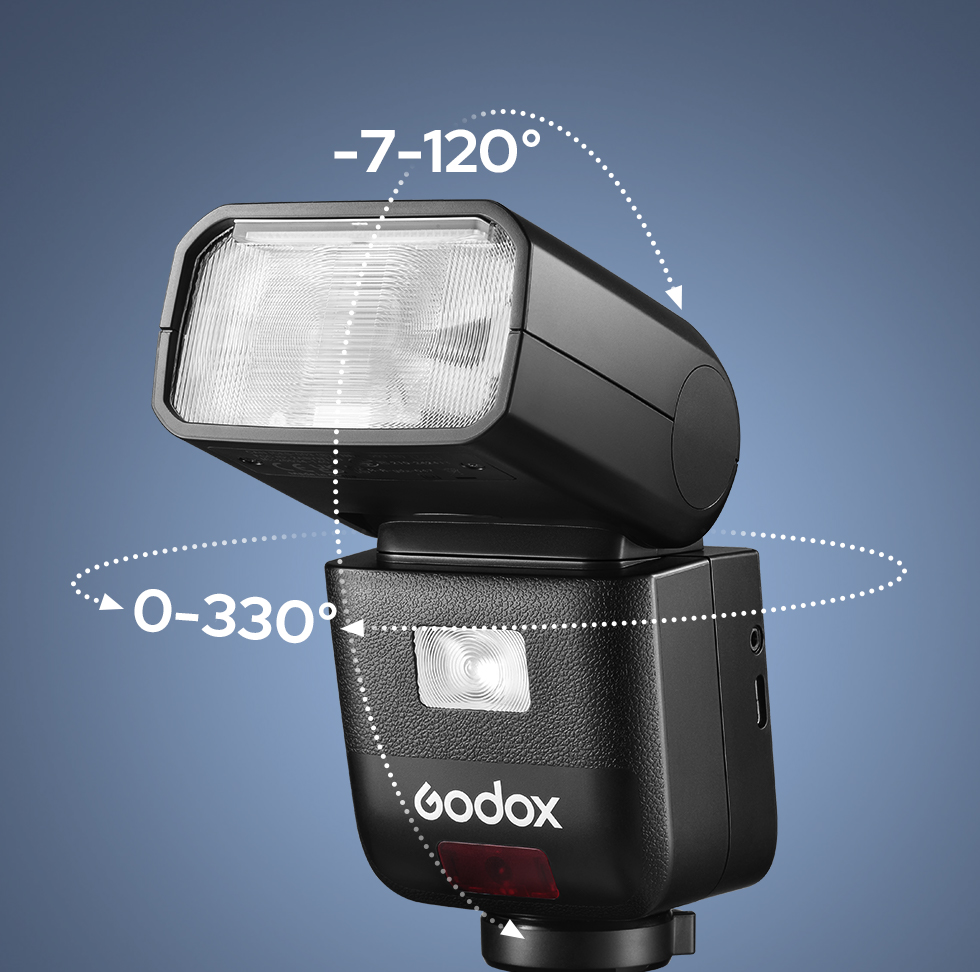

Flexible Bounce Head
Tilt from –7° to 120° and swivel a full 330° for precise bounce angles. Use walls, ceilings, or floors to craft soft, natural fill or striking side light, adapting instantly to any shooting environment.
Creative Light Shapers
Slide in the catchlight panel for crisp, sparkling eyes or snap on the wide-angle diffuser to soften and broaden coverage for groups or environmental portraits. These built-in tools let you shape your light instantly—no extra attachments required.

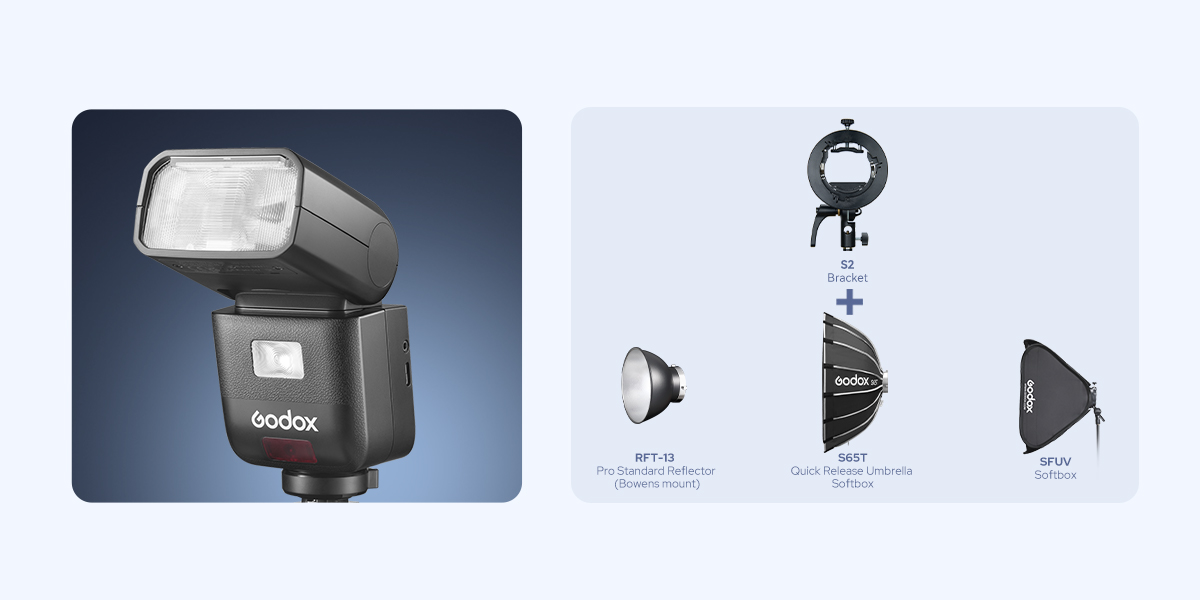

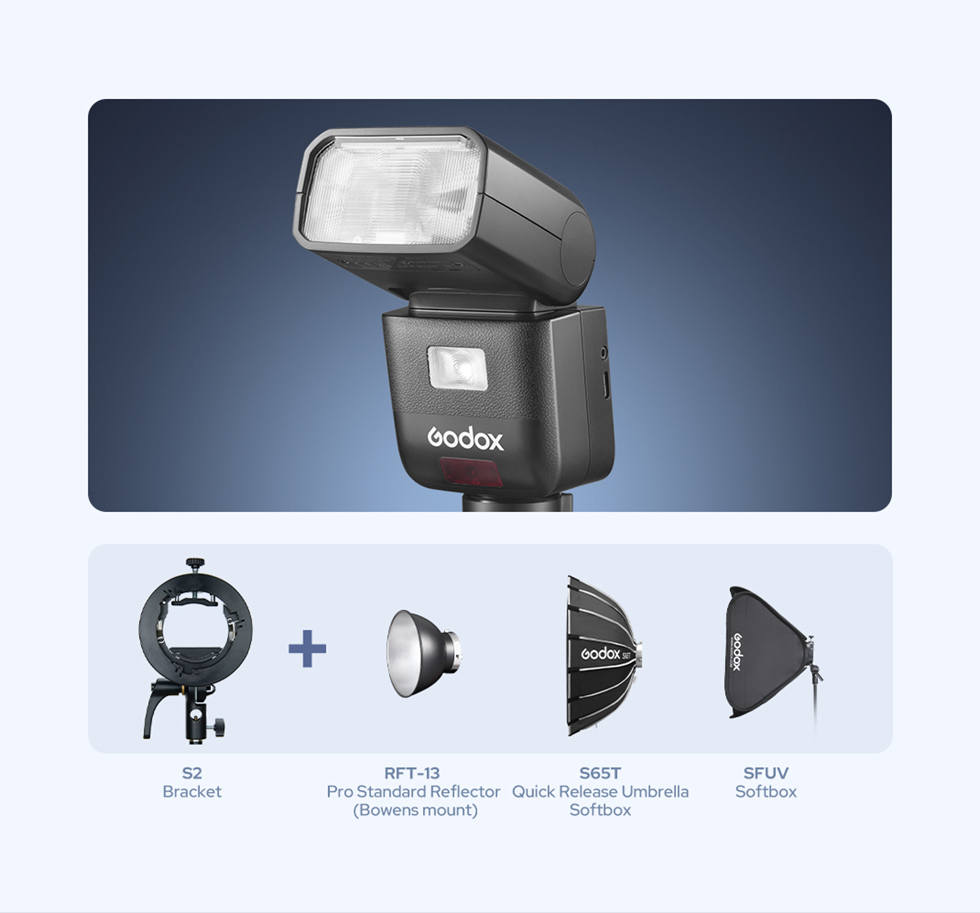

Extensive Accessory Compatibility
Expand your creative toolkit with ease: attach Bowens-mount softboxes, reflectors, snoots, and more with the S2 bracket. One flash, endless possibilities.
Recommendation
Tech Specs
| Model | V480C | V480S | V480N | V480 F | V480 O |
| Global Shutter Sync Shooting | / | Provided | / | / | / |
| Radio Wireless Global Shutter Sync | / | Provided | / | / | / |
| Guide Number(1/1 step, 105mm focal length) | Approx. GN50 (ISO 100, in meters) | ||||
| Flash Coverage | Auto zoom (flash coverage is set automatically to match the lens focal length and image size) | ||||
| Manual zoom(24-105mm) | |||||
| Flash Head Angle | Swinging/tilting flash head (bounce flash): 0 to 330° horizontally and -7° to 120° vertically | ||||
| Flash Duration (t0.1) | 1/600s-1/20000s | ||||
| Exposure Control | |||||
| Exposure Control System | TTL auto flash and manual flash | ||||
| Flash Exposure Compensation (FEC) | ±3 steps with 1/3 increment each step | ||||
| Sync Mode | High-speed sync (up to 1/8000 seconds,or 1/80000 seconds with Sony cameras equipped with global shutter), first-curtain sync,and second-curtain sync | ||||
| Multi Flash | Provided (up to 100 times, 100Hz) | ||||
| Wireless Flash (Radio 2.4G Transmission) | |||||
| Wireless Function | Sender, Receiver | ||||
| Sender Groups | A, B, C, D, E (V480C) M, A, B, C, D (V480 S/ V480 N/ V480 F/ V480 O) | ||||
| Receiver Groups | A, B, C, D, E | ||||
| Transmission Range (approx.) | 100m | ||||
| Channels | 32: 01~32 | ||||
| ID | OFF/01~99 | ||||
| LED Modeling Lamp | |||||
| Power | 2W | ||||
| Color Temperature | 5300K±300K | ||||
| Power Supply | |||||
| Lithium Battery | 7.2V/2200mAh | ||||
| Recycle Time | Approx. 1.7 seconds. LED indicator will light up when the flash is ready. | ||||
| Number of Flashes (1/1 step) | Approx. 650 | ||||
| Power Saving | Provide standby and auto off functions | ||||
| Sync Triggering Mode | Hot shoe, 2.5mm sync cord | ||||
| Dimension | |||||
| W× H×D | 6.54’’*2.8’’*1.93’’ | ||||
| Net Weight Without Battery | Approx. 282g | ||||
| Net Weight With Battery | Approx. 361g | ||||
